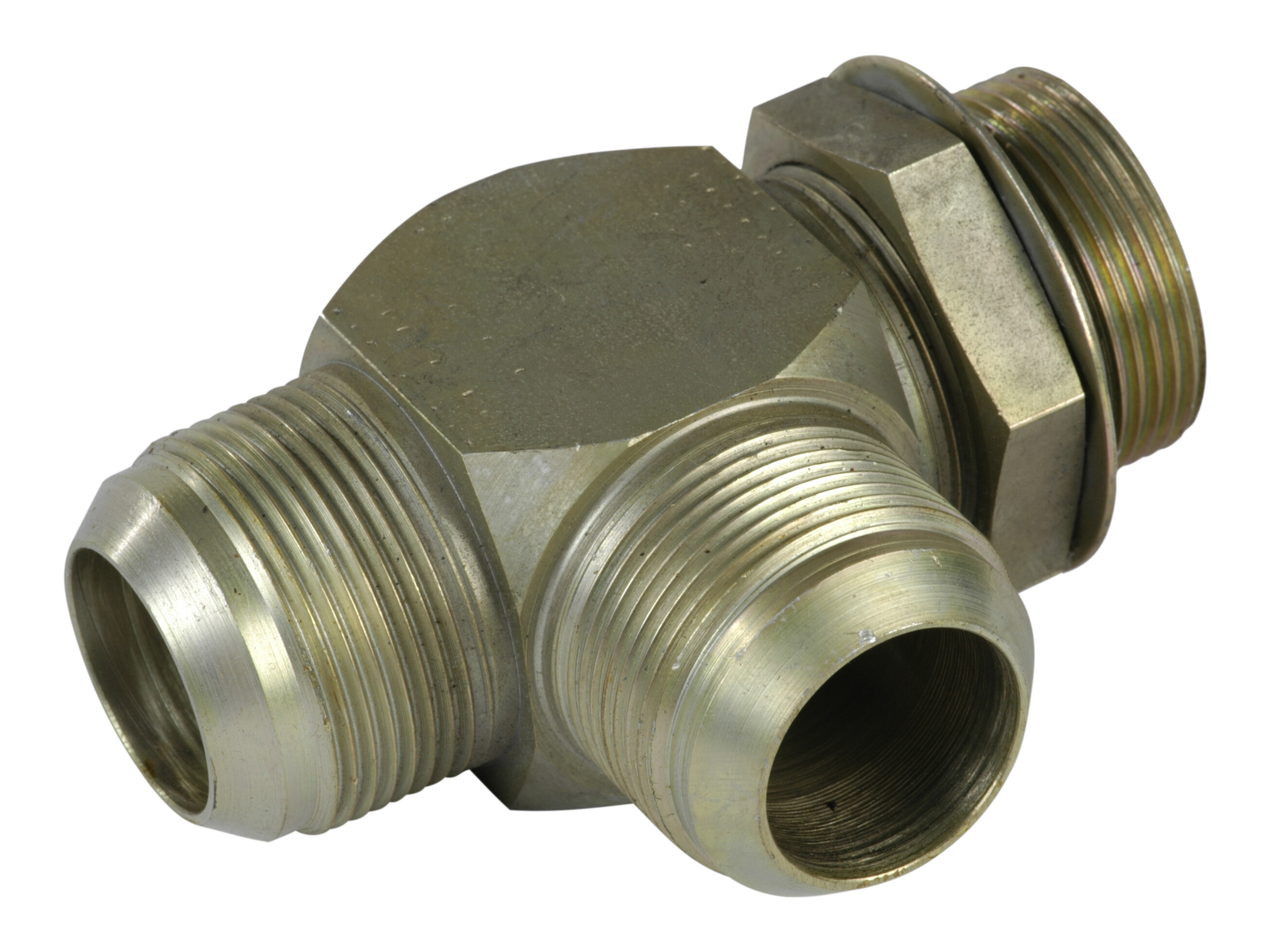

S580-32-41U barrel Tee UNF
S580-32-41U barrel Tee UNF
Artikelnummer:
TOD-32-1.5/8
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
32 mm
Dimension B
52 mm
Dimension B1
52 mm
Dimension C
57 mm
Dimension CH
50 mm
Dimension F
1.5/8-12 UNF
Dimension J
1.5/8-12 JIC
Dimension J1
1.5/8-12 JIC
Dimension T
32 mm
Dimension T1
32 mm
Material
Steel
Pressure max.
240 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.5/8-12 JIC
Thread outer
1.5/8-12 UNF
Package size
0 pcs
Barcode
5704334274919
Gross weight
0,93 Kg
Net weight
0,93 Kg
Country of origin
ITA
Intrastat code
73071110
S580-32-41U barrel Tee UNF
Note: Opening 3D files requires a program that supports the file format
