Q25M/1-F1S-111/A2/M1-F6D

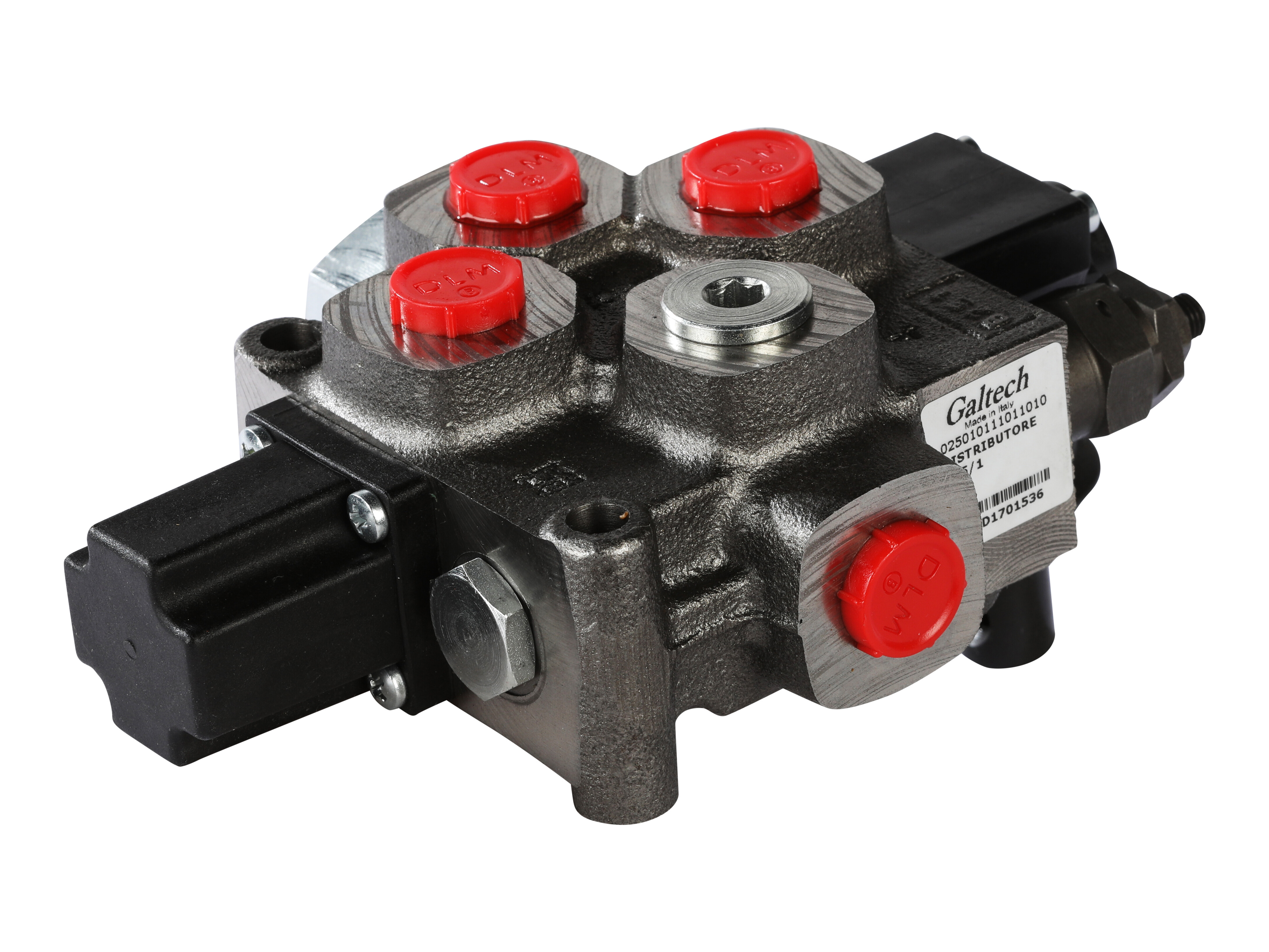

1-section Q25 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated

Spool function: Double acting with port A and B open to T in neutral position. Spring centered.

Handlever monted rotated 180°.

Open center port P to T in neutral position.

With pressure carry-over.

Partnumber:
025-1035

Package size:
0 pcs

Min. order quantity is:
1 pcs
Lever Q30
Partnumber: 030-A
Brand Name
Walvoil

Contamination level max.
16/14/12 - ISO 4406

Flow rate nominal LMin
35 lpm

Lever
Exclusive

Material
Cast iron

Model code
Q25M/1-F1S-111/A2/M1-F6D

Number of sections
1

Oil viscocity recommended
10 - 400 cSt

Port P1
G 3/8 BSP

Port P2
G 3/8 BSP

Port T1
G 3/8 BSP

Port T2
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
Yes

Pressure max.
350 bar

Pressure relief valve
Yes

Pressure setting max.
280 bar

Pressure setting min.
30 bar

Working ports
G 3/8 BSP
Package size
0 pcs

Barcode
5704334602040

Gross weight
3,04 Kg

Net weight
3,04 Kg

Country of origin
ITA

Intrastat code
84812010
