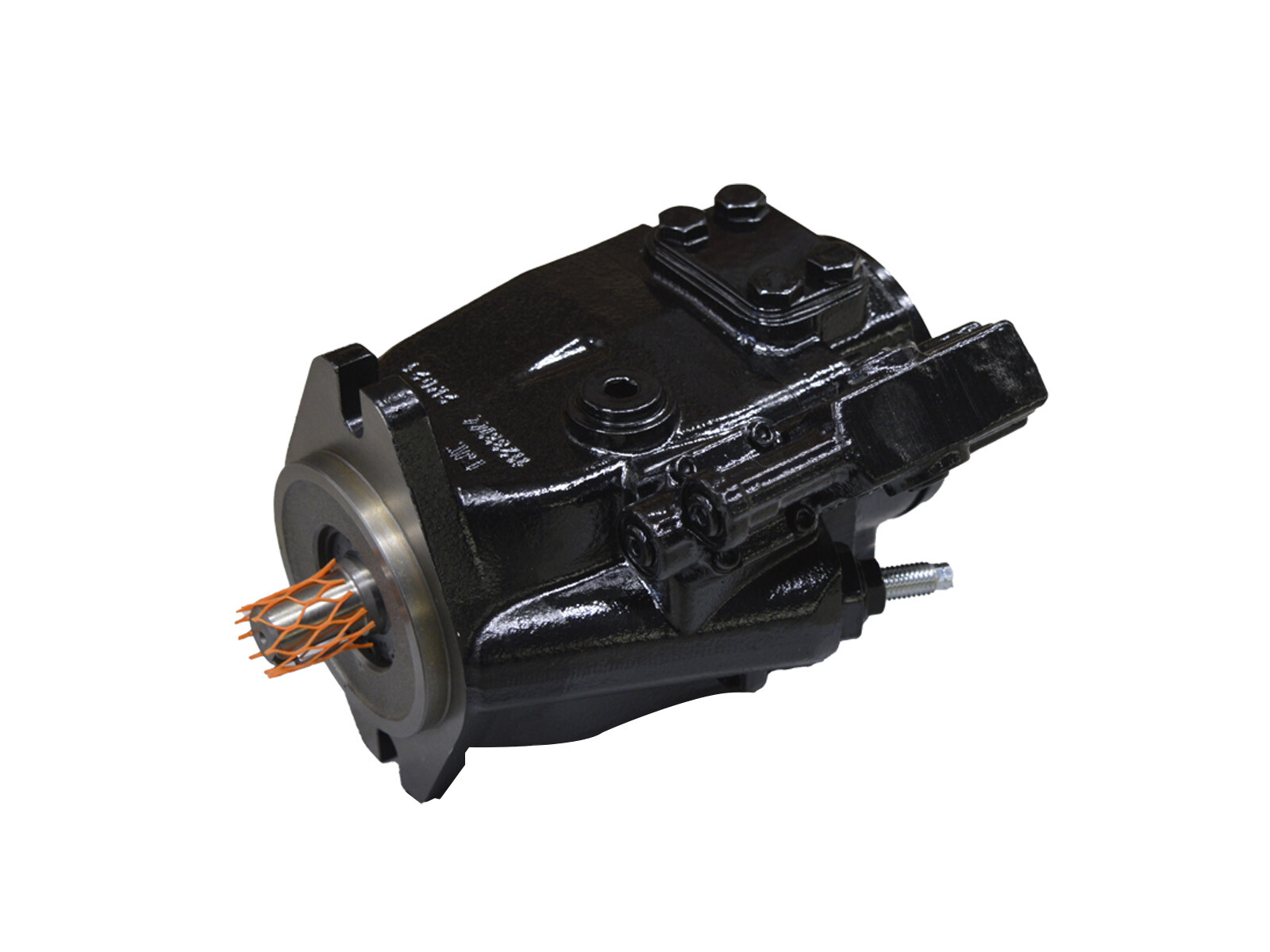

K2-R-038C-LS-26-20-NN-N-3-K1RR-A5N-AAA-NNN-NNN

K2-R-038C-LS-26-20-NN-N-3-K1RR-A5N-AAA-NNN-NNN

Partnumber:
83112558

Package size:
1 st

Min. order quantity is:
1 st
AuxMount/EndCap code
RR

Brand Name
Danfoss

Contamination level max.
22/18/13 - ISO 4406

Continuous rotation max.
2900 rpm

Control
Load sensing

Control type
LS

Displacement
38 cm3

Displacement limiter
Adjustable

Flange SAE/DIN
3000 PSI

Flange inlet
1.1/2 "

Flange outlet
1 "

Holes circle
146 mm

Model
Frame K2

Mounting flange
SAE-B2

Number of mounting holes
2

Oil viscocity recommended
9 - 110 cSt

Port position
Side

Pressure continous max.
260 bar

Pressure max.
350 bar

Rear flange
None

Recess
101,6 mm

Rotation direction
Right (CW)

Rotation max. at max. pressure
2600 rpm

Rotational speed max.
3050 rpm

Rotational speed min.
500 rpm

Sensor type
None

Shaft code
K1

Shaft diameter
22,22 mm

Shaft keyway
6,35 mm

Shaft seal material
FKM/FPM (Viton®)

Shaft type
Cylindrical

Temperature intermittent max.
+115 °C

Temperature max.
+104 °C

Temperature min.
-40 °C
Package size
1 st

Barcode
449594

Gross weight
Kg

Net weight
18,60 Kg

Country of origin
svk

Intrastat code
84135061

K2-R-038C-LS-26-20-NN-N-3-K1RR-A5N-AAA-NNN-NNN
