FR-R-074B-LS-25-20-NN-N-3-K4R2-A1N-AAA-NNN-NNN

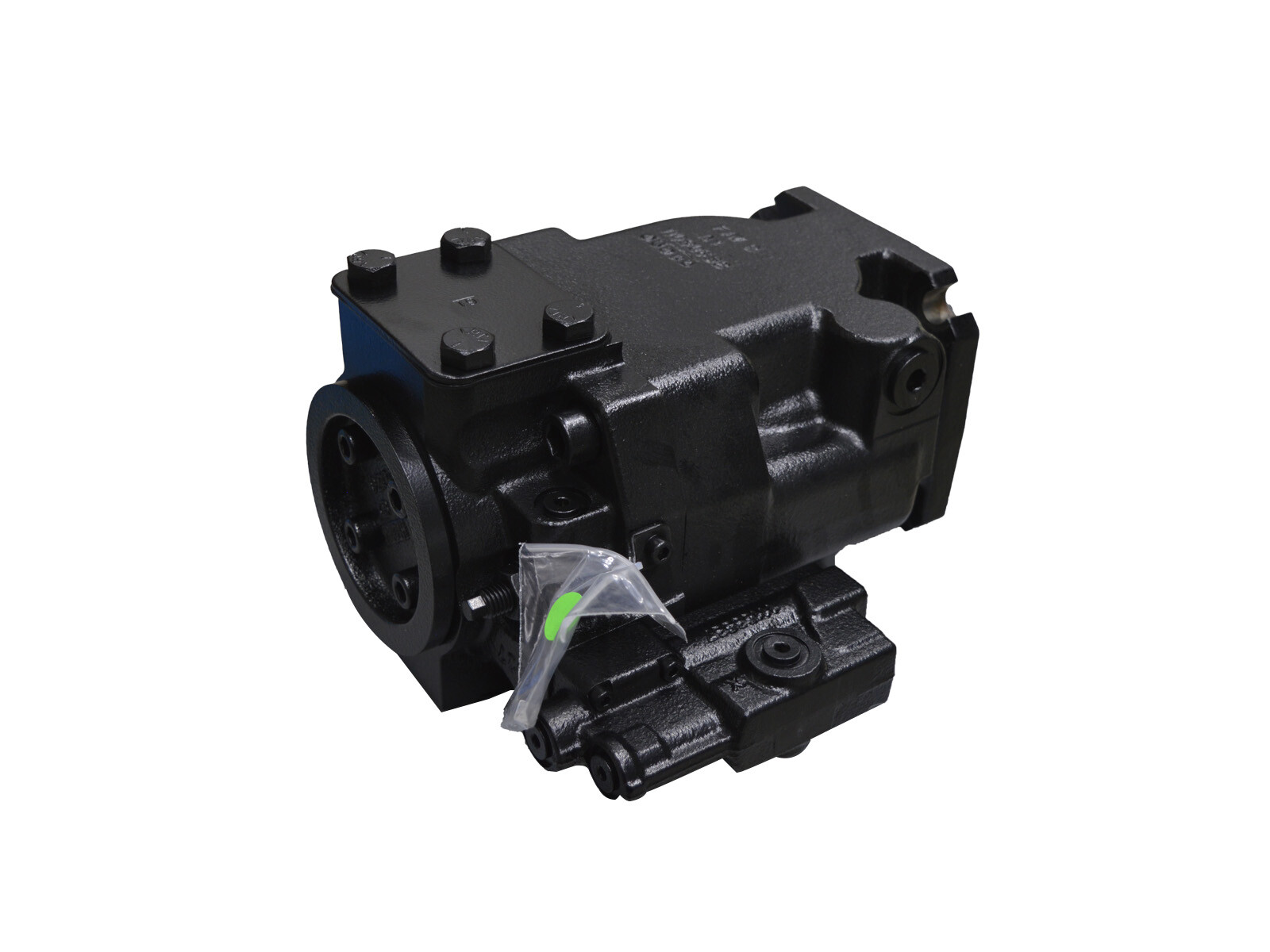

Danfoss S45 open circuit variable displacement piston pump.

Features:Load sensing.

Connections:SAE flange with side outlets.

Shaft and O-ring seals Viton®.

Varenummer:
83019262

Pakke str.:
1 st

Min. bestillingsenhed er:
1 st
AuxMount/EndCap code
R2

Brand Name
Danfoss

Contamination level max.
22/18/13 - ISO 4406

Continuous rotation max.
2400 rpm

Control
Load sensing

Control type
LS

Displacement
74 cm3

Displacement limiter
Adjustable

Flange SAE/DIN
3000 PSI

Flange inlet
2 "

Flange outlet
1 "

Holes circle
161.9 mm

Model
Frame F

Mounting flange
SAE-C4

Number of mounting holes
4

Oil viscocity recommended
9 - 110 cSt

Port position
Side

Pressure continous max.
310 bar

Pressure max.
400 bar

Rear flange
None

Recess
127,0 mm

Rotation direction
Right (CW)

Rotation max. at max. pressure
2800 rpm

Rotational speed max.
2800 rpm

Rotational speed min.
500 rpm

Sensor type
None

Shaft code
K4

Shaft diameter
31,75 mm

Shaft keyway
7,95 mm

Shaft seal material
FKM/FPM (Viton®)

Shaft type
Cylindrical

Temperature intermittent max.
+104 °C

Temperature max.
+82 °C

Temperature min.
-40 °C
Pakke str.
1 st

Stregkode
450331

Brutto vægt
Kg

Netto vægt
34,247 Kg

Oprindelsesland
usa

Intrastat varekode
84135061

Danfoss S45 open circuit variable displacement piston pump.

Features:Load sensing.

Connections:SAE flange with side outlets.

Shaft and O-ring seals Viton®.
