Pump S45 ER-R-147C-LS-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

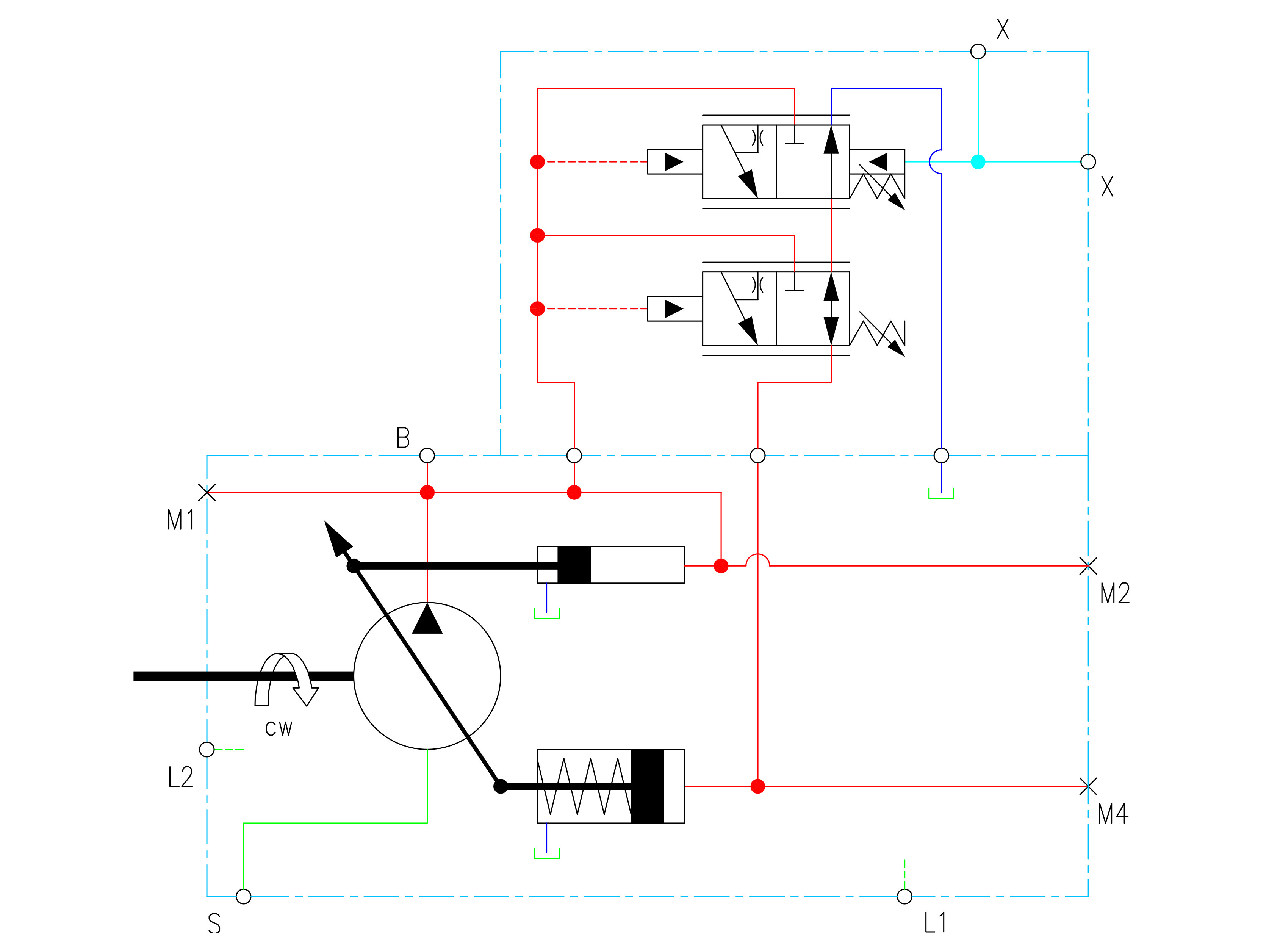

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Varenummer:
83042025
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Aksel diameter
31,2 mm
Aksel kode
S1
Aksel spline
14T 12/24 SAE-C
Akseltype
Spline
Akseltætning materiale
FKM/FPM (Viton®)
Antal montage huller
4
Bagflange
SAE-B 13T
Boltcirkel
161.9 mm
Ekstra montering/endedæksel type
RP
Flange SAE/DIN
3000 PSI/6000 PSI
Flange indgang
2.1/2 "
Flange udgang
1.1/4 "
Fortrængning
147 cm3
Fortrængningsbegrænser
Adjustable
Forureningsgrad maks.
22/18/13 - ISO 4406
Kontrol
Load sensing
Kontrol type
LS
Model
Frame E
Model kode
ER-R-147C-LS-21-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN
Monteringsflange
SAE-C4
Mærke navn
Danfoss
Olieviskositet anbefalet
9 - 110 cSt
Portplacering
Side
Reces
127,0 mm
Rotationshastighed kontinuerligt maks.
2100 rpm
Rotationshastighed maks.
2475 rpm
Rotationshastighed maks. ved maks. tryk
2100 rpm
Rotationshastighed min.
500 rpm
Rotationssretning
Right (CW)
Sensor type
None
Standard SAE
SAE J518 Code 62
Temperatur intermitterende maks.
+104 °C
Temperatur maks.
+82 °C
Temperatur min.
-40 °C
Tryk kontinuerligt maks.
260 bar
Tryk maks.
350 bar
Udvendigt splineantal
14
Package size
1 st
Barcode
334113
Gross weight
64,00 Kg
Net weight
64,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
