Pump S45 KR-L-045D-LS-20-17-NN-N-3-C2BG-A6N-PLB-NNN-NNN

Danfoss S45 variabel piston pump for open circuit.

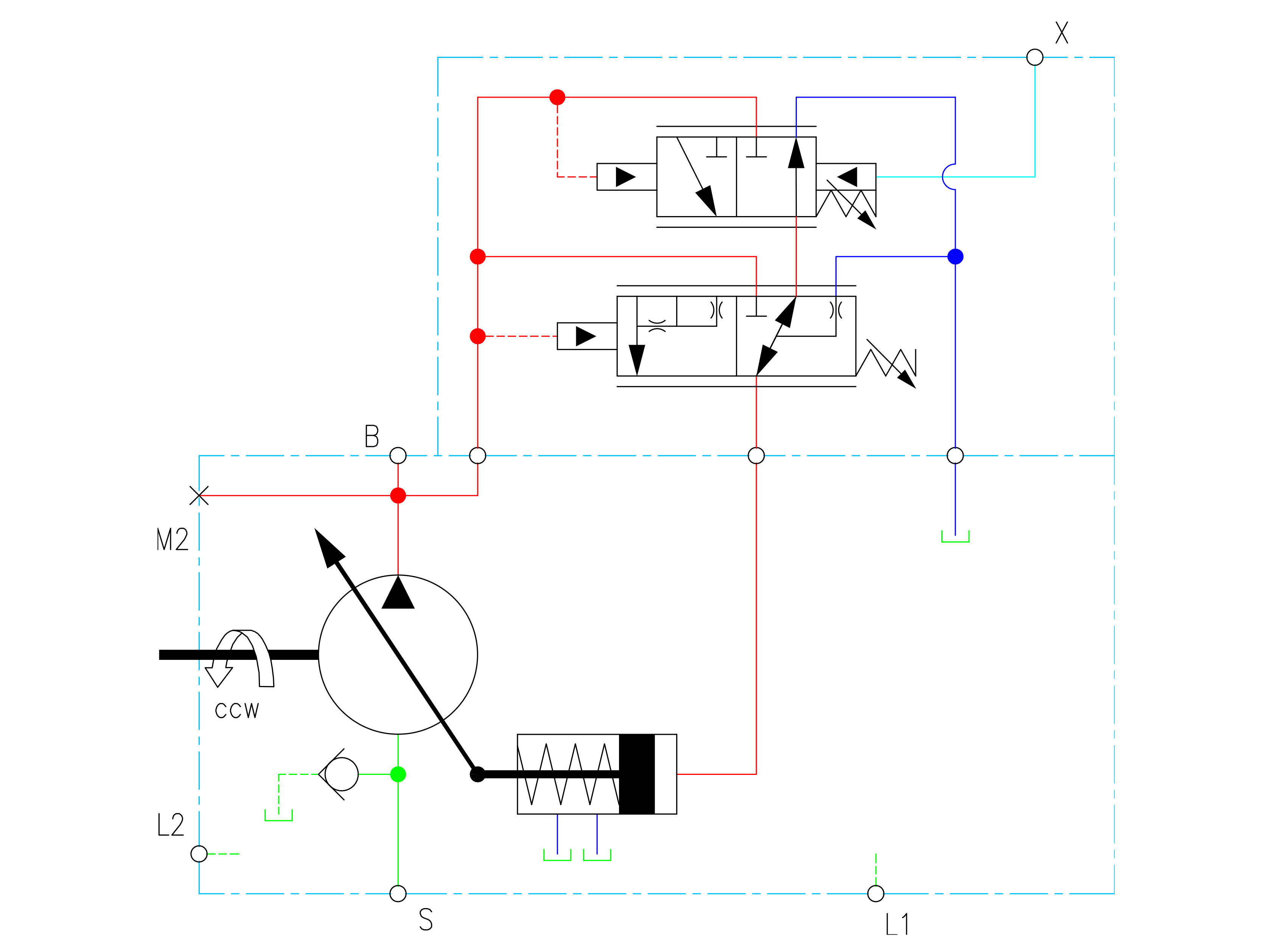

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.

Connections: SAE flange side connection in endcap.

Shaft- and o-ringsseals in Viton®.

Partnumber:
7004547

Package size:
1 st

Min. order quantity is:
1 st
AuxMount/EndCap code
BG

Brand Name
Danfoss

Contamination level max.
22/18/13 - ISO 4406

Continuous rotation max.
2650 rpm

Control
Load sensing

Control type
LS

Displacement
45 cm3

Displacement limiter
None

Holes circle
146 mm

Inlet
1.7/8-12 UNF

Model
Frame K

Model code
KR-L-045D-LS-20-17-NN-N-3-C2BG-A6N-PLB-NNN-NNN

Mounting flange
SAE-B2

Number of mounting holes
2

Number of outer grooves
13

Oil viscocity recommended
9 - 110 cSt

Outlet
1.5/16-12 UNF

Port position
Side

Pressure continous max.
210 bar

Pressure max.
300 bar

Rear flange
SAE-B 13T

Recess
101,6 mm

Rotation direction
Left (CCW)

Rotation max. at max. pressure
2650 rpm

Rotational speed max.
2800 rpm

Rotational speed min.
500 rpm

Sensor type
None

Shaft code
C2

Shaft diameter
21,8 mm

Shaft seal material
FKM/FPM (Viton®)

Shaft spline
13T 16/32 SAE-B

Shaft type
Spline

Temperature intermittent max.
+104 °C

Temperature max.
+82 °C

Temperature min.
-40 °C
Package size
1 st

Barcode
334057

Gross weight
25,00 Kg

Net weight
25,00 Kg

Country of origin
DEU

Intrastat code
84135061

Danfoss S45 variabel piston pump for open circuit.

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.

Connections: SAE flange side connection in endcap.

Shaft- and o-ringsseals in Viton®.
