Pump S45 JR-R-S75C-LS-20-20-NN-N-3-C2AE-A8N-NNN-JJJ-NNN
Danfoss S45 variabel piston pump for open circuit.

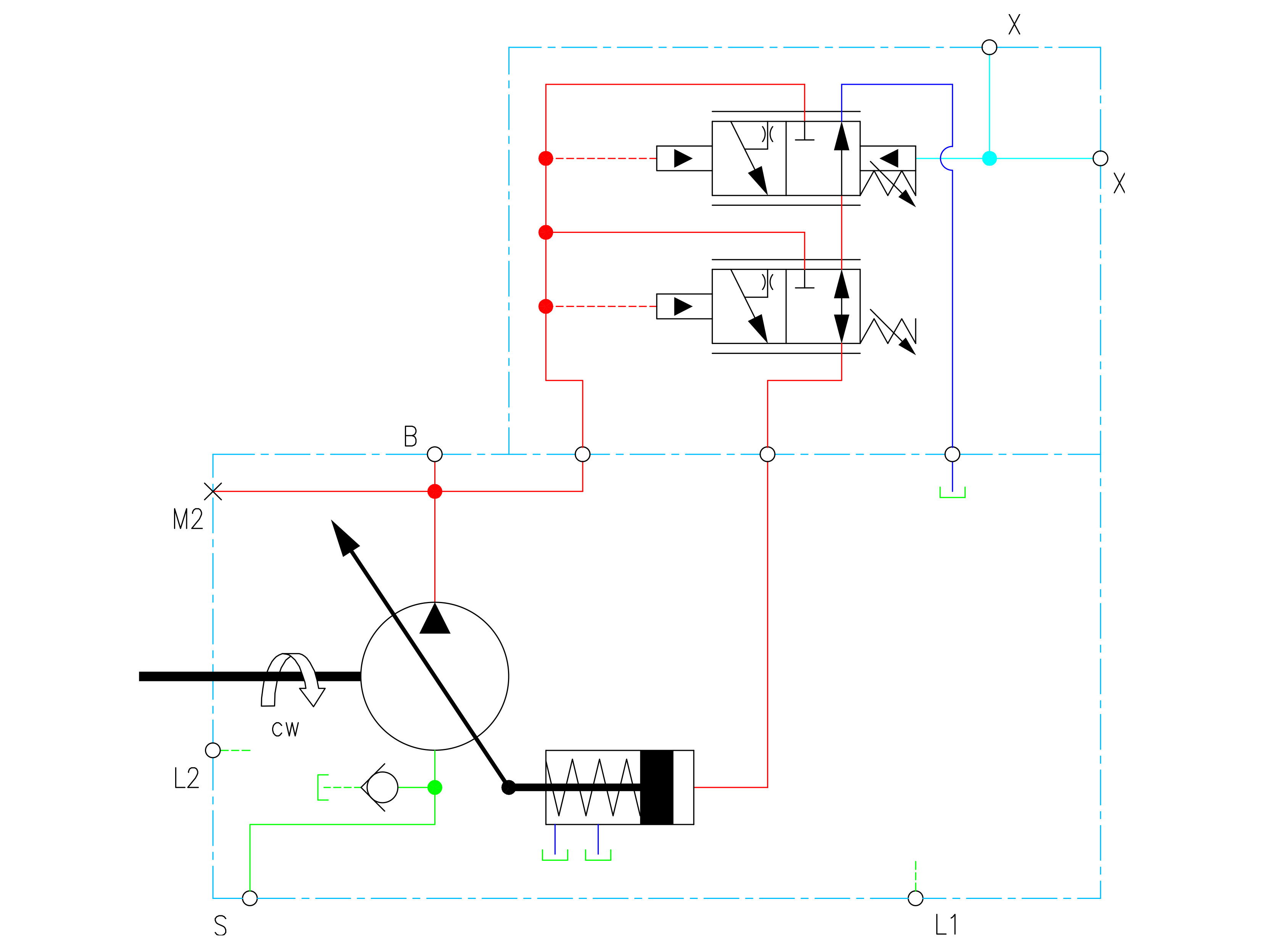

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
83025919
Package size:
1 st
Min. order quantity is:
1 st
Antal monteringshål
2
Axel diameter
21,8 mm
Axel kod
C2
Axel spline
13T 16/32 SAE-B
Axeltyp
Spline
Axeltätning materiale
FKM/FPM (Viton®)
Bultcirkel
146 mm
Deplacement
75 cm3
Ekstra montering/endedæksel typ
AE
Fläns SAE/DIN
3000 PSI
Fläns ingång
2 "
Fläns utgång
1 "
Föroreningsgrad max.
22/18/13 - ISO 4406
Förträngningsbegränsar
None
Kont. rotation max.
2400 rpm
Kontroll
Load sensing
Kontrolltyp
LS
Modell
Frame J
Modell kod
JR-R-S75C-LS-20-20-NN-N-3-C2AE-A8N-NNN-JJJ-NNN
Monteringsfläns
SAE-B2
Märke namn
Danfoss
Oljeviskositet rekommanderad
9 - 110 cSt
Portplacering
Side
Reces
101,6 mm
Rotation max. vid max. tryck
2400 rpm
Rotationshastighet max.
2880 rpm
Rotationshastighet min.
500 rpm
Rotationsriktning
Right (CW)
Sensor typ
None
Temperatur intermittent max.
+104 °C
Temperatur max.
+82 °C
Temperatur min.
-40 °C
Tryck kontinuerlig max.
260 bar
Tryck max.
350 bar
Utv. Splinesantal
13
Package size
1 st
Barcode
334060
Gross weight
28,02 Kg
Net weight
28,02 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
