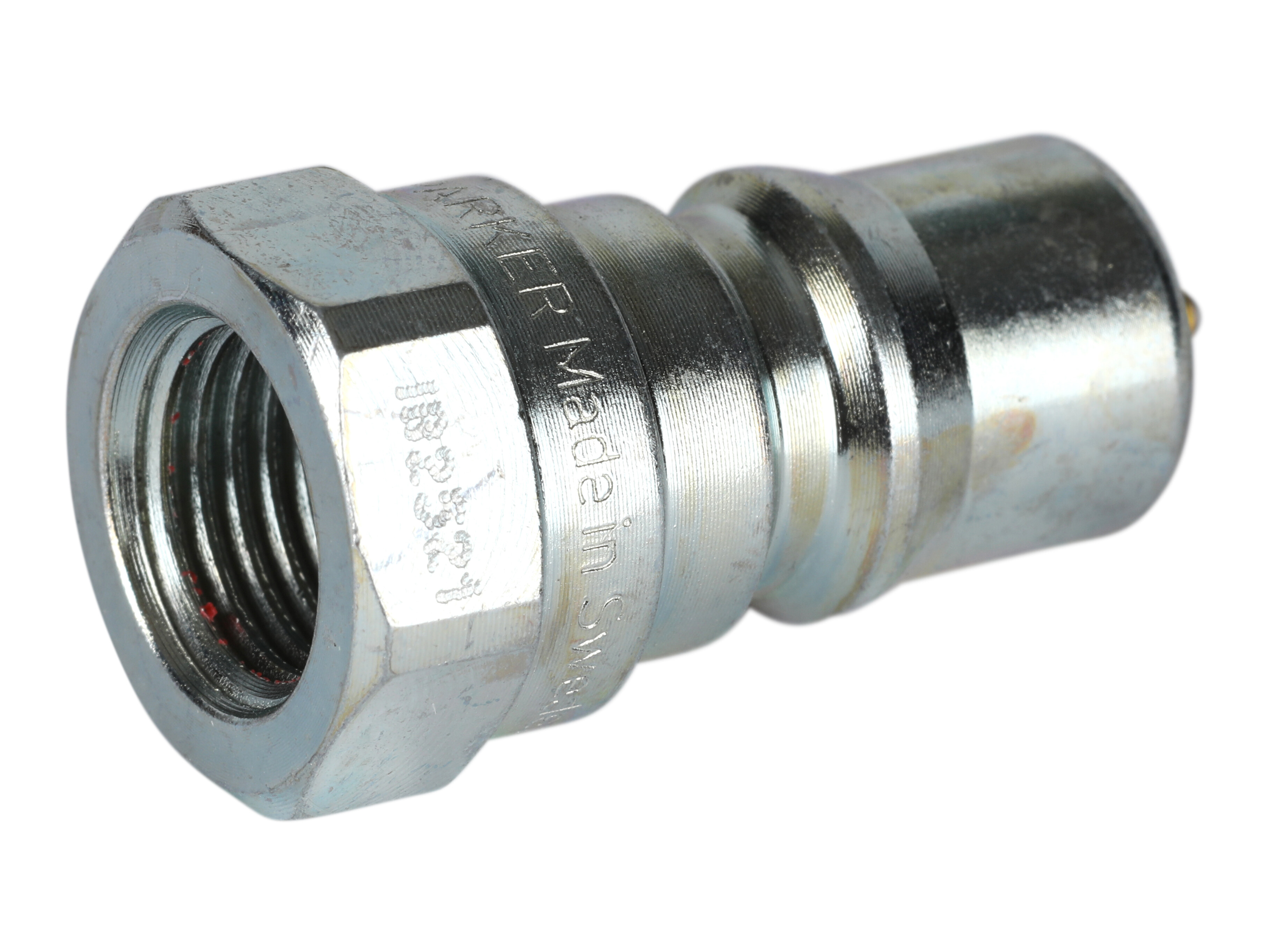

TIB2521 - Lynkobling han - Tema (ISO-B) - DN06 - G1/4" m. eliminator
Quick-coupling with ball-lock.
With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
Artikelnummer:
TIB2521
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
DN
6 mm

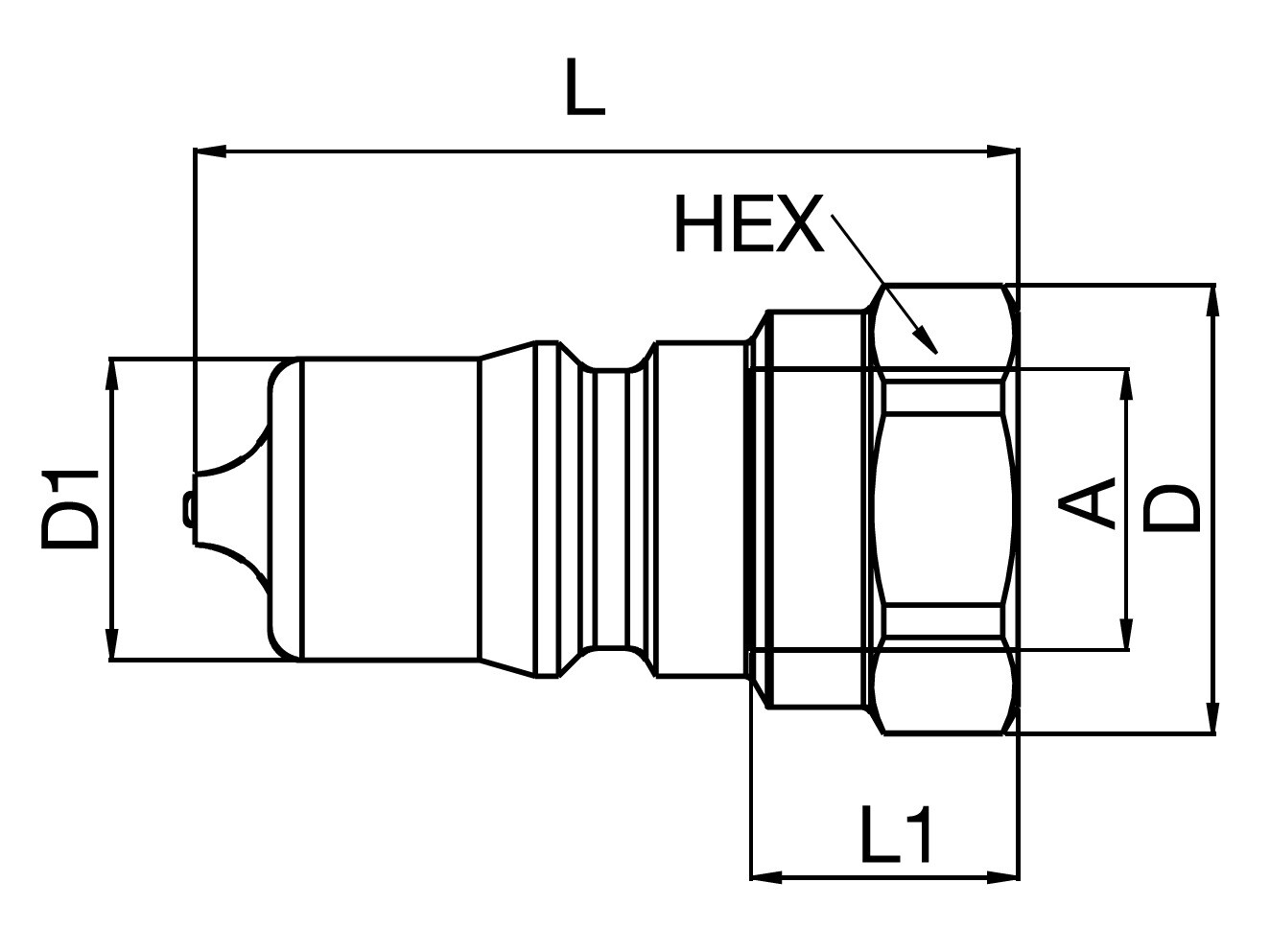

Dimension A
G 1/4 BSP
Dimension D
21 mm
Dimension D1
14.1 mm
Dimension L
38 mm
Dimension L1
12 mm
Flow rate nominal LMin
14 lpm
Hexagon
19 mm
Material
Steel
Model code
IB2521
Pressure eliminator
Yes
Pressure max.
400 bar
Sealing material
NBR
Size
1/4 "
Standard ISO
ISO 7241-1-B
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread inner
G 1/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334114253
Bruttovikt
0,036 Kg
Nettovikt
0,036 Kg
Ursprungsland
swe
Intrastat artikelkod
84812010
Quick-coupling with ball-lock.
With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
