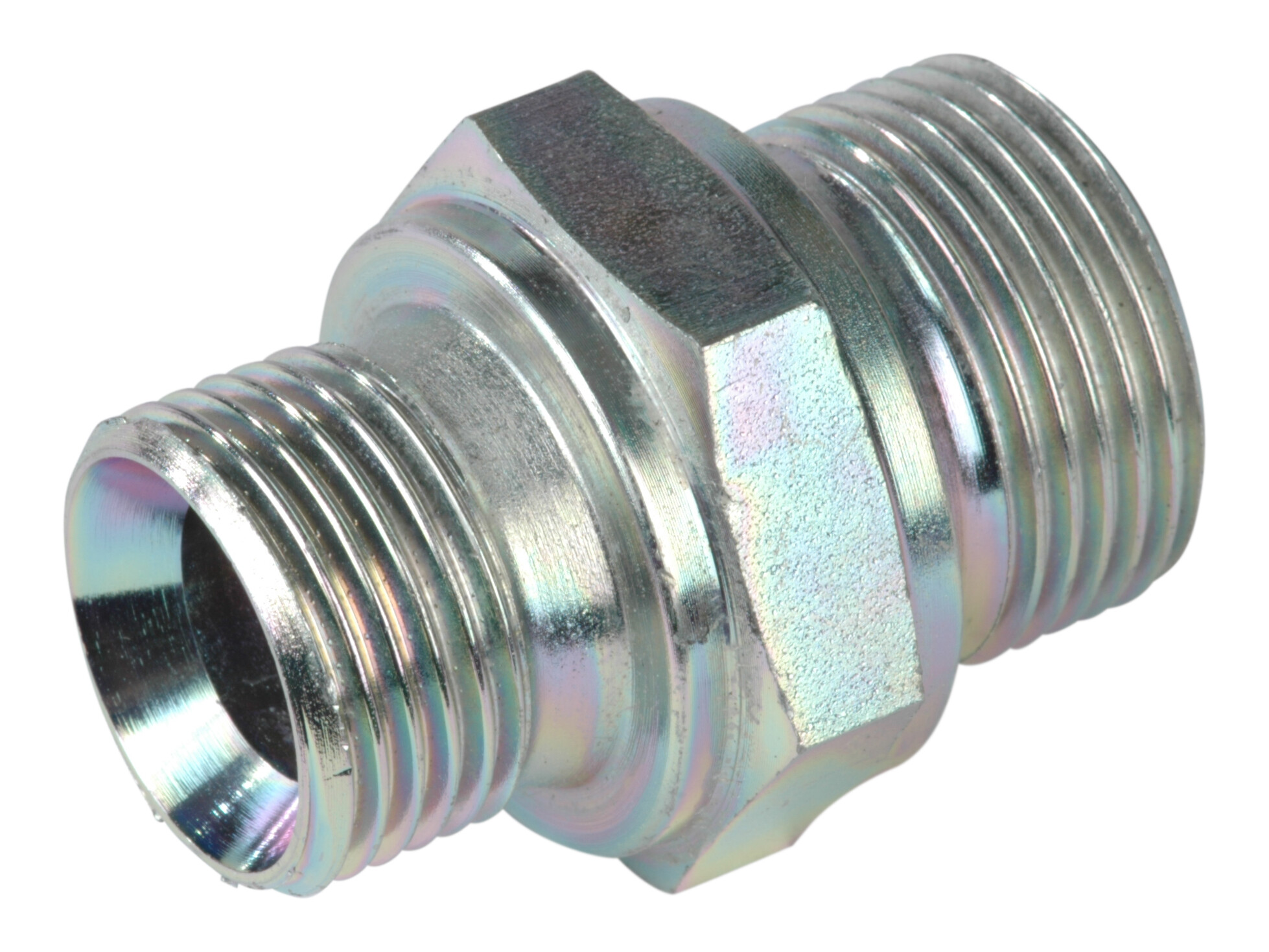

Presskoppling GS 45B, Ø 5/8'', SAE 3/4'', Kod 61
Används tillsammans med flänshalvor.
Partnumber:
10GS12FL45M
Package size:
1 st
Min. order quantity is:
1 st
Angle
45 °
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
Diameter flange
38.1 mm
Dimension A
127 mm
Dimension B
76.7 mm
Dimension D
5/8 "
Dimension E
26 mm
Dimension K
38.1 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Hose coupling type
Till lös hylsa
Hose size
5/8 "
Material
Stål
Model code
10GS-12FL45
O-ring
24,99X3,53 mm
Pressure max.
350 bar
REACH compliant
Ja
RoHs compliant
Ja
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
TuffCoat™
Torque tightening
70 - 77 Nm
Package size
1 st
Barcode
200116
Gross weight
0,24 Kg
Net weight
0,24 Kg
Country of origin
USA
Intrastat code
73269098
Används tillsammans med flänshalvor.
