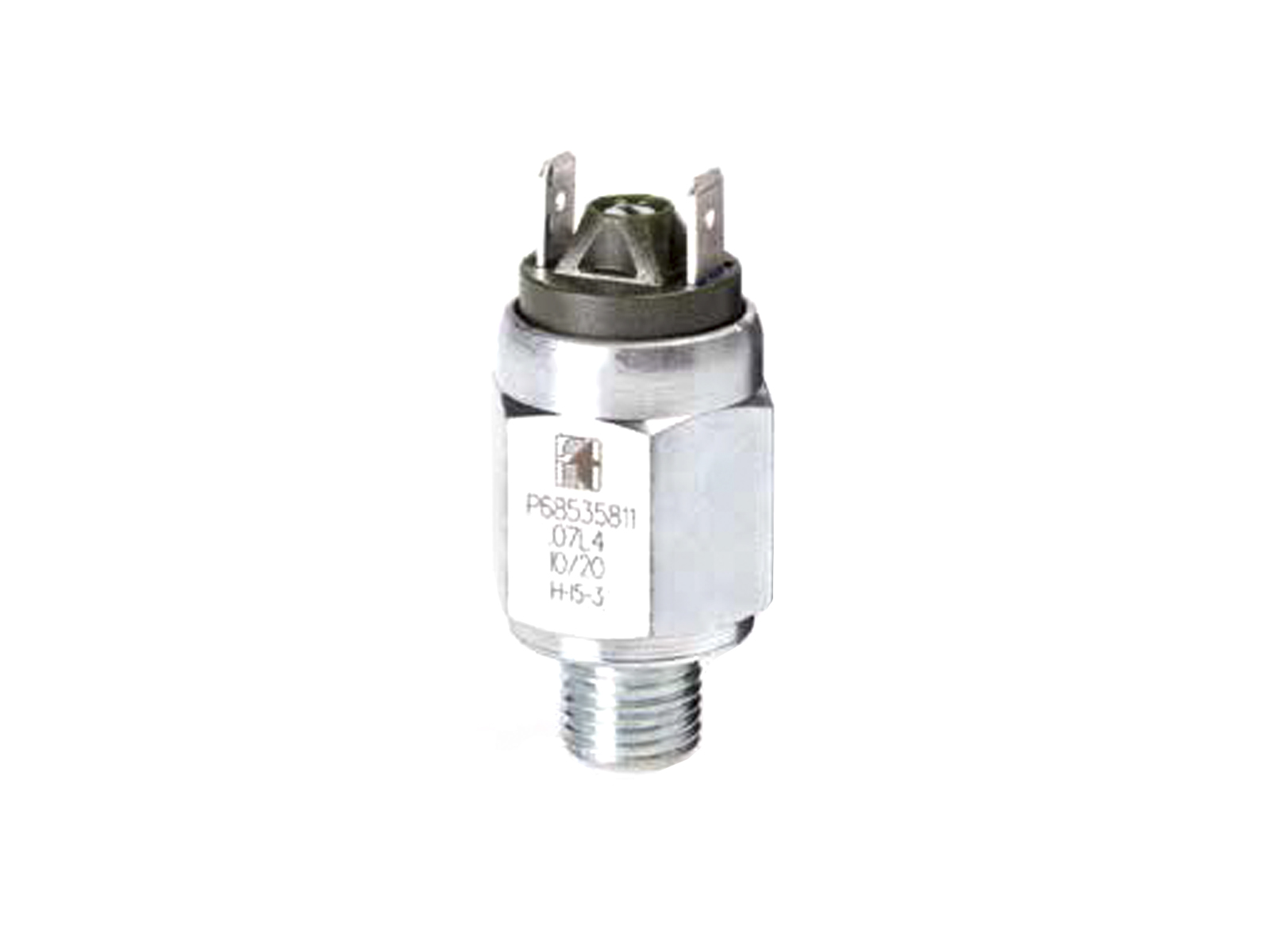

Pressure switches

SELECT VARIANT

Partnumber	Description	Pressure max.	Voltage max.	Contact function

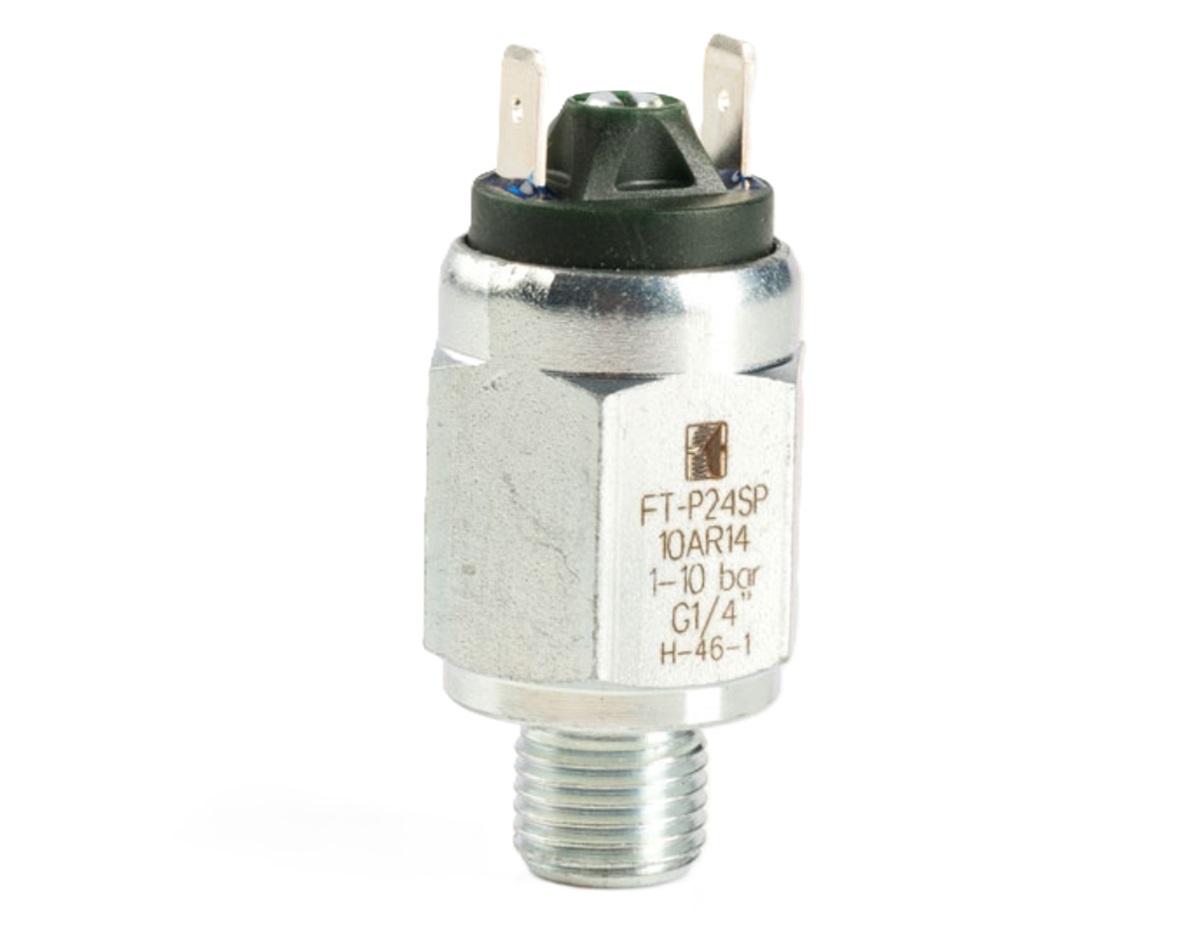

FT-P24SP10AR14	Pressure switch NO 1-10 Bar G1/4 Hyst. 3-5% Tol.+-0.6	300 bar	48 V	Normally open
FT-P24SP10CR14	Pressure switch NC 1-10 Bar G1/4 Hyst. 3-5% Tol.+-0.6	300 bar	48 V	Normally closed
FT-P24SP1AR14	Pressure switch NO 0.2-1 Bar G1/4 Hyst. 3-5% Tol.+-0.15	300 bar	48 V	Normally open
FT-P24SP1CR14	Pressure switch NC 0.2-1 Bar G1/4 Hyst. 3-5% Tol.+-0.15	300 bar	48 V	Normally closed
FT-P24SP200AR14	Pressure switch NO 50-200 Bar G1/4 Hyst. 3-5% Tol.+-5	300 bar	48 V	Normally open
FT-P24SP200CR14	Pressure switch NC 50-200 Bar G1/4 Hyst. 3-5% Tol.+-5	300 bar	48 V	Normally closed
FT-P24SP20AR14	Pressure switch NO 10-20 Bar G1/4 Hyst. 3-5% Tol.+-1.5	300 bar	48 V	Normally open
FT-P24SP20CR14	Pressure switch NC 10-20 Bar G1/4 Hyst. 3-5% Tol.+-1.5	300 bar	48 V	Normally closed
FT-P24SP2AR14	Pressure switch NO 0.5-2 Bar G1/4 Hyst. 3-5% Tol.+-0.2	300 bar	48 V	Normally open
FT-P24SP2CR14	Pressure switch NC 0.5-2 Bar G1/4 Hyst. 3-5% Tol.+-0.2	300 bar	48 V	Normally closed
FT-P24SP50AR14	Pressure switch NO 20-50 Bar G1/4 Hyst. 3-5% Tol.+-2	300 bar	48 V	Normally open
FT-P24SP50CR14	Pressure switch NC 20-50 Bar G1/4 Hyst. 3-5% Tol.+-2	300 bar	48 V	Normally closed

Brand Name

Tognella

Current max.

0.5

Material

Steel

Plug type

Flat pins 6,3x0,8

Pressure connection type

Thread

Pressure max.

300

Protection class

IP 54

Sealing material

NBR

Surface treatment

Zinc-plated

Temperature max.

+90

Temperature min.

-20

Thread

G 1/4

Voltage max.
