Pump S45 ER-L-100B-LS-25-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

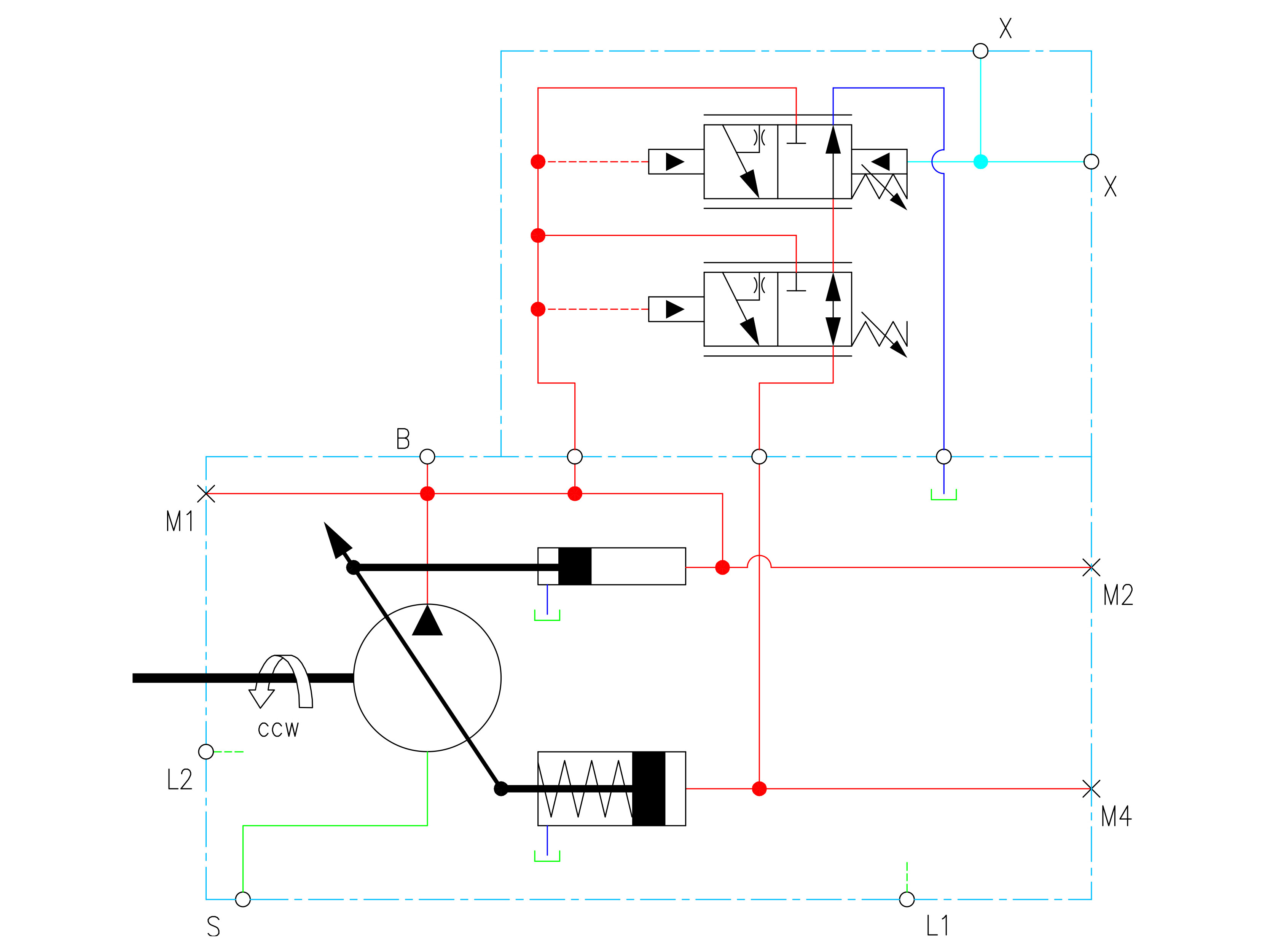

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
7000504
Package size:
1 st
Min. order quantity is:
1 st
Aksel diameter
36,66 mm
Aksel kode
S2
Aksel spline
17T 12/24 SAE-C
Akseltype
Spline
Akseltætning materiale
FKM/FPM (Viton®)
Antal montage huller
4
Bagflange
None
Boltcirkel
161.9 mm
Ekstra montering/endedæksel type
NL
Flange SAE/DIN
3000 PSI/6000 PSI
Flange indgang
2.1/2 "
Flange udgang
1.1/4 "
Fortrængning
100 cm3
Fortrængningsbegrænser
Adjustable
Forureningsgrad maks.
22/18/13 - ISO 4406
Kontrol
Load sensing
Kontrol type
LS
Model
Frame E
Model kode
ER-L-100B-LS-25-20-NN-N-3-S2NL-A1N-AAA-NNN-NNN
Monteringsflange
SAE-C4
Mærke navn
Danfoss
Olieviskositet anbefalet
9 - 110 cSt
Portplacering
Rear
Reces
127,0 mm
Rotationshastighed kontinuerligt maks.
2450 rpm
Rotationshastighed maks.
2880 rpm
Rotationshastighed maks. ved maks. tryk
2450 rpm
Rotationshastighed min.
500 rpm
Rotationssretning
Left (CCW)
Sensor type
None
Standard SAE
SAE J518 Code 62
Temperatur intermitterende maks.
+104 °C
Temperatur maks.
+82 °C
Temperatur min.
-40 °C
Tryk kontinuerligt maks.
310 bar
Tryk maks.
400 bar
Udvendigt splineantal
17
Package size
1 st
Barcode
334089
Gross weight
57,00 Kg
Net weight
57,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
