Pump S45 KR-R-045D-LS-10-20-NN-N-3-C3AG-A6N-PLB-NNN

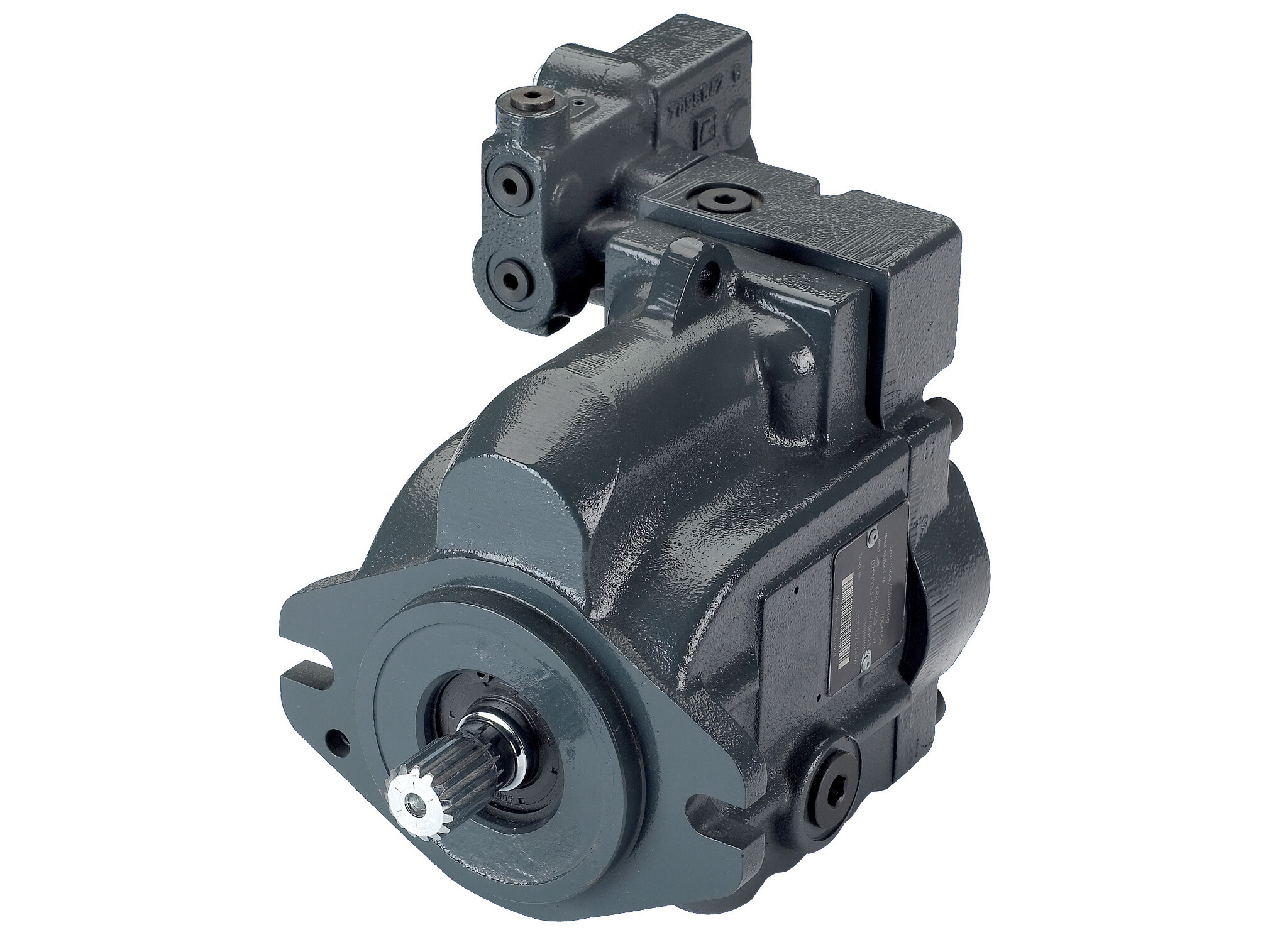

Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Varenummer:
11000835
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Antal monteringshål
2
Axel diameter
25,4 mm
Axel kod
C3
Axel spline
15T 16/32 SAE-BB
Axeltyp
Spline
Axeltätning materiale
FKM/FPM (Viton®)
Bultcirkel
146 mm
Deplacement
45 cm3
Ekstra montering/endedæksel typ
AG
Fläns bak
SAE-A 9T
Föroreningsgrad max.
22/18/13 - ISO 4406
Förträngningsbegränsar
None
Ingång
1.7/8-12 UNF
Kont. rotation max.
2650 rpm
Kontroll
Load sensing
Kontrolltyp
LS
Modell
Frame K
Modell kod
KR-R-045D-LS-10-20-NN-N-3-C3AG-A6N-PLB-NNN
Monteringsfläns
SAE-B2
Märke namn
Danfoss
Oljeviskositet rekommanderad
9 - 110 cSt
Portplacering
Side
Reces
101,6 mm
Rotation max. vid max. tryck
2650 rpm
Rotationshastighet max.
2800 rpm
Rotationshastighet min.
500 rpm
Rotationsriktning
Right (CW)
Sensor typ
None
Temperatur intermittent max.
+104 °C
Temperatur max.
+82 °C
Temperatur min.
-40 °C
Tryck kontinuerlig max.
210 bar
Tryck max.
300 bar
Utgång
1.5/16-12 UNF
Utv. Splinesantal
15
Package size
1 st
Barcode
334119
Gross weight
30,00 Kg
Net weight
30,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
