Oil-Air cooler TT 21 rail AC w. pressure by-pass

Oil-Air cooler TT 21 rail AC w. pressure by-pass

NOTE! also requires TT rail connection kit.

Please order separately.

Partnumber:
ASATT21RA47BP
Package size:
1 kpl
Min. order quantity is:
1 kpl
Foot mounting TT 07-36 (heavy duty = mobile use)
Partnumber: ILLEFUSSTTHDK
Mounting feet set ASA-TT 07 - 25
Partnumber: ILLEFUSSTTK
TT-rail Connector Kit 90 degrees BSP1 1/4"
Partnumber: ILLZSET5G32
TT-rail Connector Kit Straight BSP1 1/4"
Partnumber: ILLZSET5G32A
TT-rail Connector Kit Mixed BSP1 1/4"
Partnumber: ILLZSET5G32B
Temperature control 12VDC
Partnumber: ILLZTC12-2K
Temperature control 24VDC
Partnumber: ILLZTC24-2K
Temperature switch BSP1/2" DIN-3P Set point 50C
Partnumber: ILLZTH4765K
Temperature switch BSP1/2" AMP Superseal 1.5 Set point 50C
Partnumber: ILLZTH5069K
Brand Name
ASA
By-pass valve
Yes

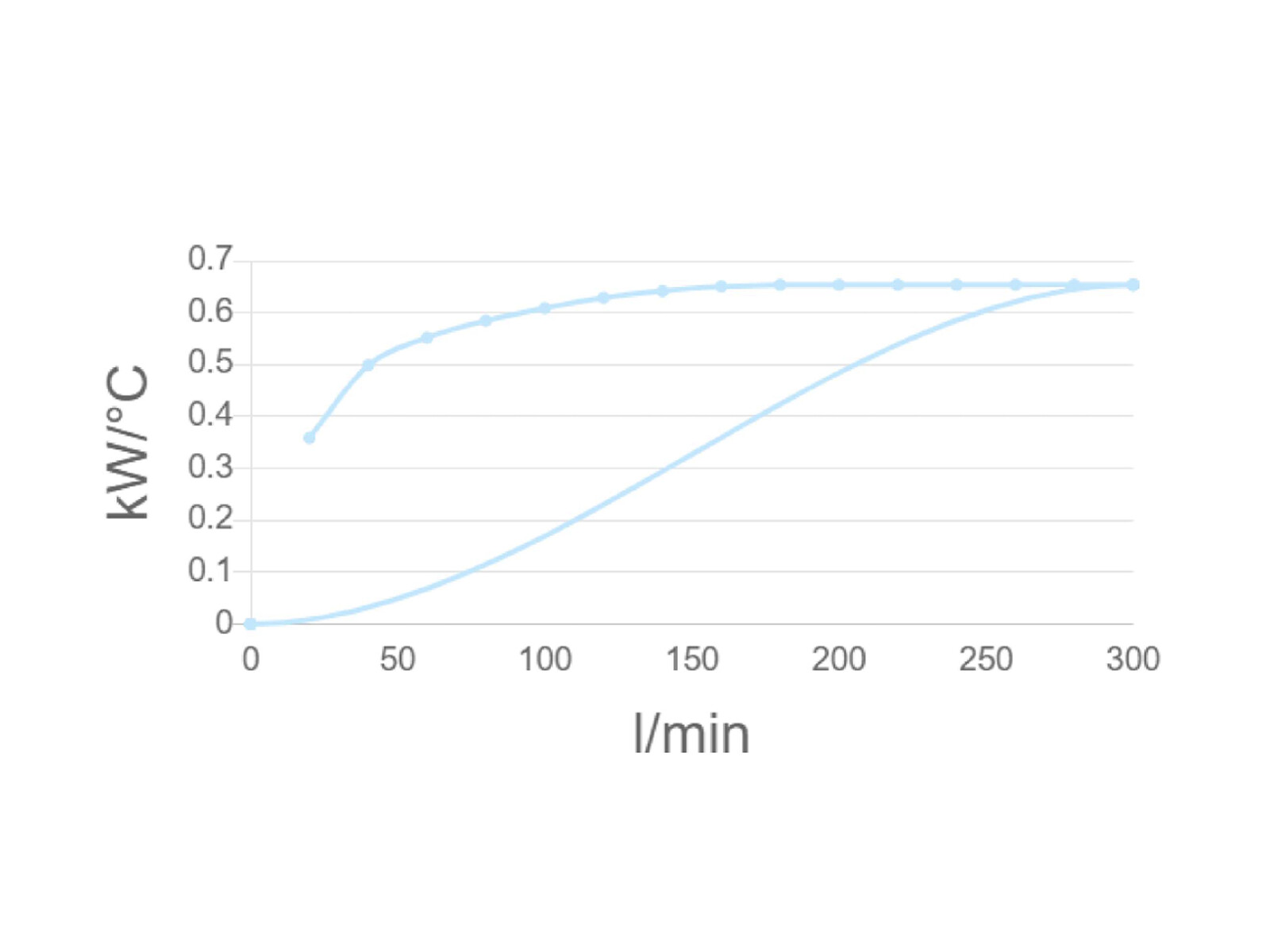

Cooling efficiency
0.66 kW/°C
Current type
AC
Depth
444 mm
Flow rate nominal LMin
250 lpm
Height
605 mm
Material
Aluminium
Model code
ASATT21RA47BP
Noise level
81 dB-A
Pressure max.
26 bar
Pressure static max.
26 bar
Temperature ambient max.
+80 °C
Temperature ambient min.
-20 °C
Temperature working fluid max.
+80 °C
Voltage
230, 400 V
Width
558 mm
Package size
1 kpl
Barcode
477672
Gross weight
Kg
Net weight
42,60 Kg
Country of origin
aut
Intrastat code
84186900

NOTE! also requires TT rail connection kit.

Please order separately.
