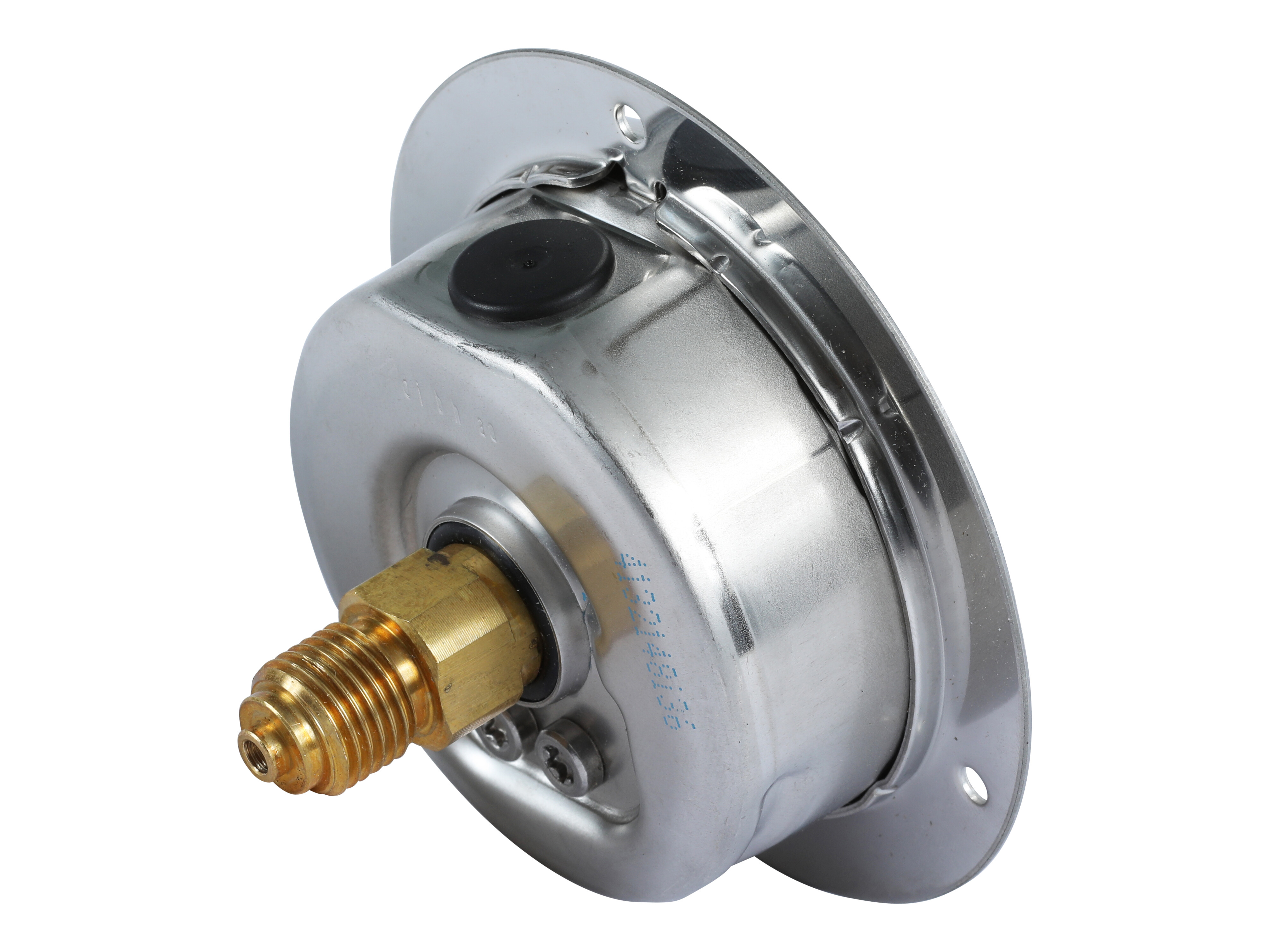

1/4" pressure gauge. Rear mount w. frontring. Scale 0-1000 b
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
Partnumber:
SPG0631000RF
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter
63 mm
Glastyp
Acrylic glass
Gänga
G 1/4 BSP
Materialkvalitet
1.4301 / AISI304
Modell kod
SPG-063-01000-01-P-B04-F
Märke namn
Stauff
Portplacering
Rear
Temperatur max.
+60 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Stainless steel
Tryckinställning max.
1000 bar
Tryckinställning min.
0 bar
Tryckmätning noggrannhet
±1,6% FS
Package size
0 pcs
Barcode
5704295681252
Gross weight
0,28 Kg
Net weight
0,28 Kg
Country of origin
DEU
Intrastat code
90262040
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
Note: Opening 3D files requires a program that supports the file format
