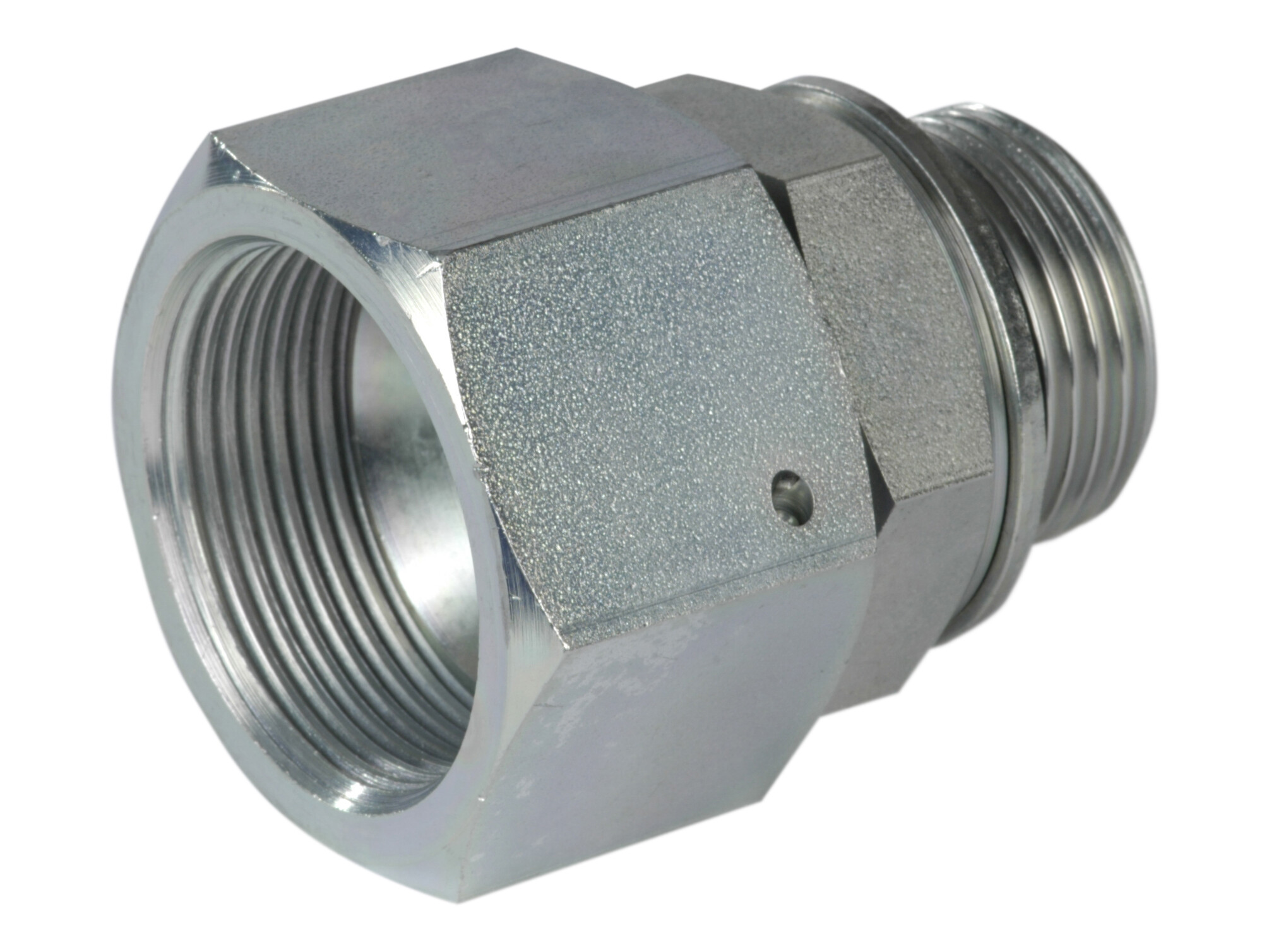

Adaptor with nut, BSP 60° cone

Partnumber:

FG-32-1

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

32 mm

Dimension A

64.5 mm

Dimension B

32.5 mm

Dimension CH

42 mm

Dimension CH1

50 mm

Dimension D

15.5 mm

Dimension F

G 1 BSP

Dimension J

1.5/8-12 JIC

Dimension T

32 mm

Material

Steel

Pressure max.

240 bar

Surface treatment

Electro-galvanized / White chromatized

Thread inner

1.5/8-12 JIC

Thread outer

G 1 BSP

Package size

0 pcs

Barcode

5704334274445

Gross weight

0,33 Kg

Net weight

0,33 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Adaptor with nut, BSP 60° cone

Note: Opening 3D files requires a program that supports the file format
