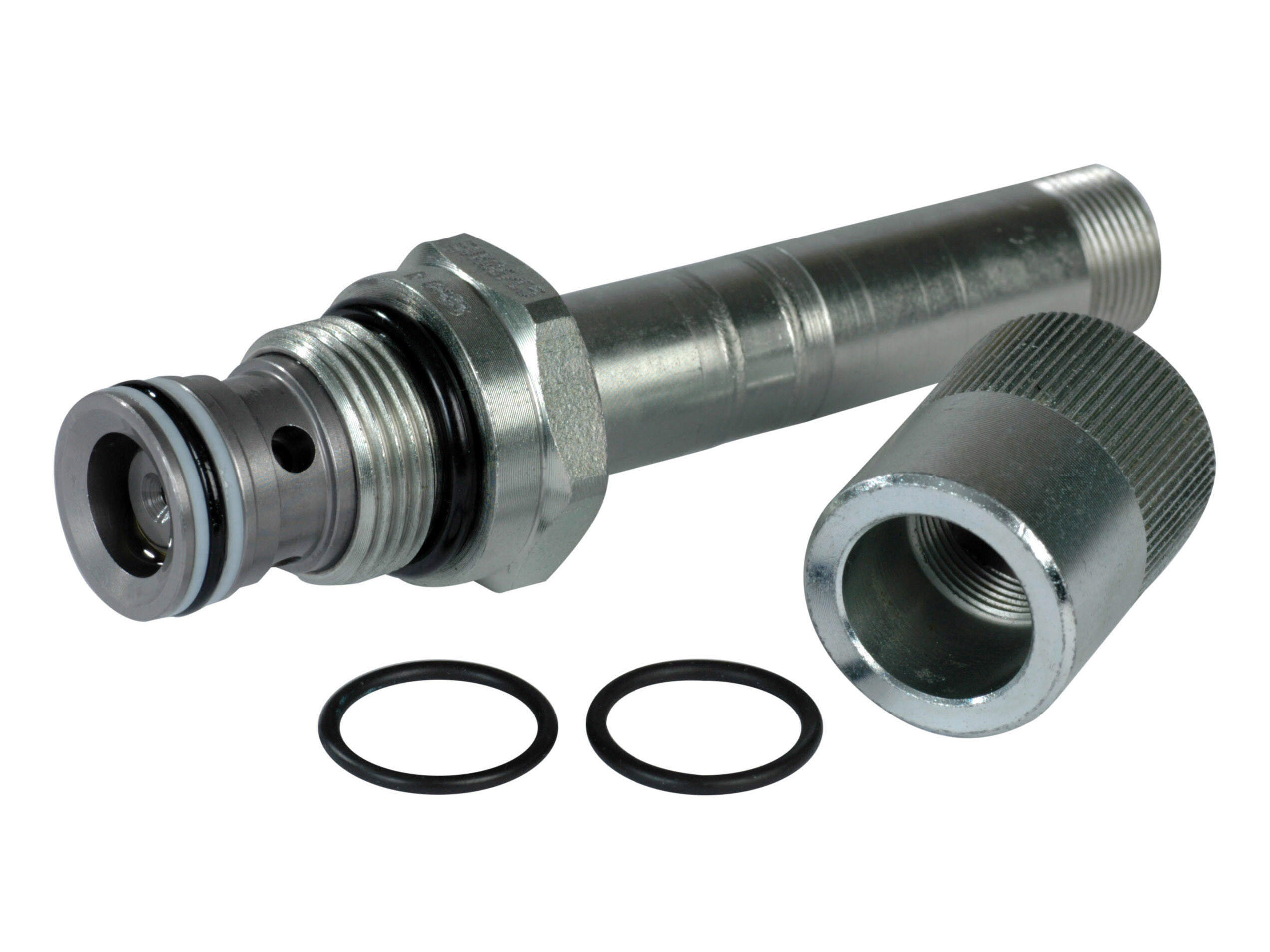

SOLENOID VALVE EVK 06/C5-00-00 EVK06/C5--00-00-HD-00

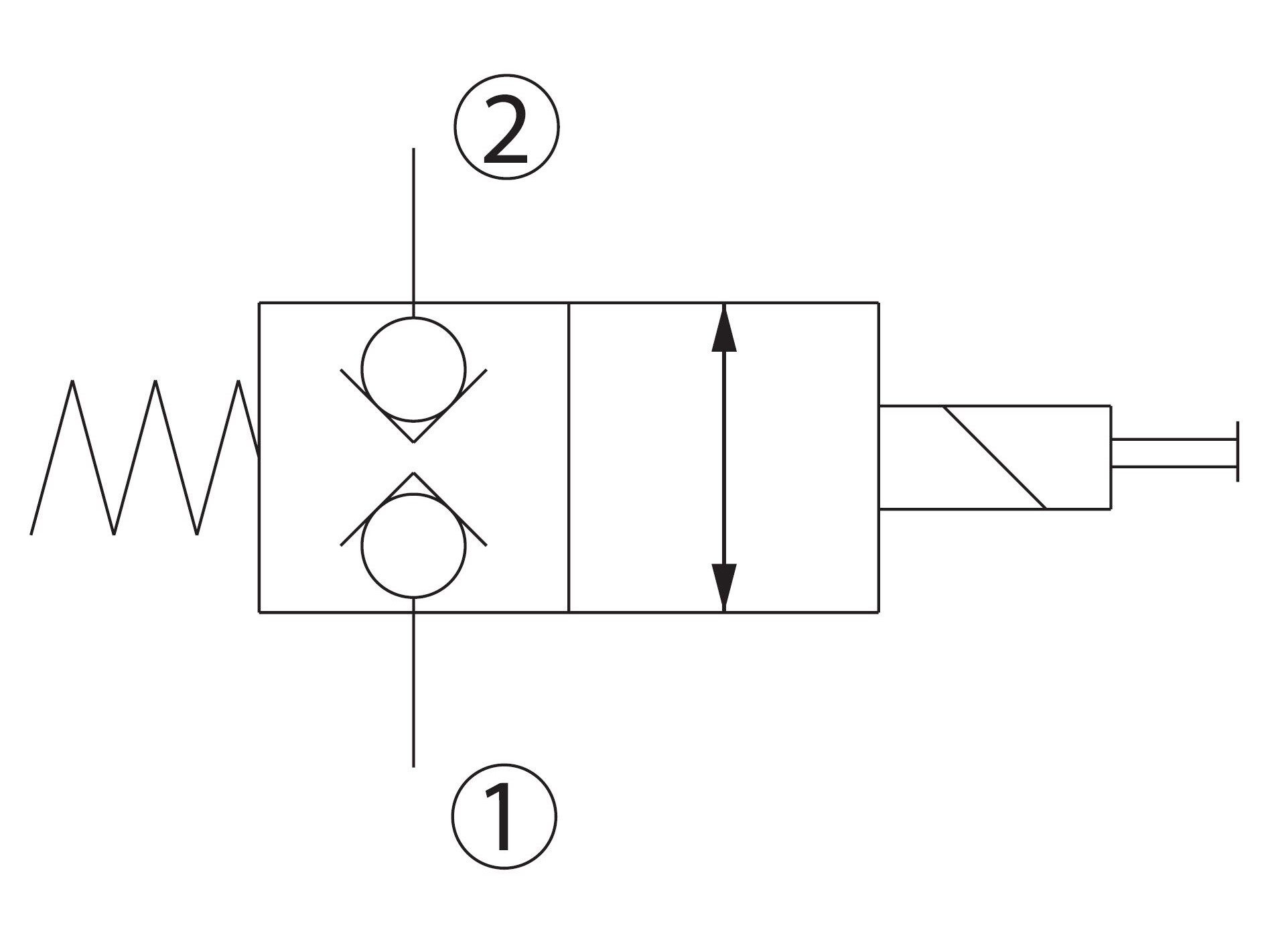

This is a 2-way, 2-position, poppet type, direct acting, normally closed, bi-directional solenoid valve. In its de-energized condition, fl­ow is blocked in both directions. Leakage in either direction is kept to a minimum due to the poppet design. When energized, ­flow can take place from port 2 to 1 and from 1 to 2.

These valves come standard with a push pin manual override. These valves can be used to hold loads in position or interrupt a pressure line where fl­ow is expected to pass in both directions in the de-energized condition. They do not suffer from momentary opening due to shock pressures.

Artikelnummer:
805405319

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
COIL, EVH-EDH 06 48V DC M16--48D-26W-DN
Partnumber: 171112119
COIL, M16-12D-26W-DN M16-12D-26W-DN
Partnumber: 17114581
Coil M16-20D-27W-DN
Partnumber: 171145919
COIL, M16-24D-26W-DN M16-24D-26W-DN
Partnumber: 171146019
Coil M16-12D-26W-DE
Partnumber: 17114931
Spole M13-120RA%
Partnumber: 171149519
Coil M16-110RA-22W-DN
Partnumber: 171184319
COIL, M16-220RA-22W-DN M16-220RA-22W-DN
Partnumber: 171184419
Housing NCS06/2--LG2 1/2
Partnumber: 922500113
Housing NCS06/2--LG2 3/8
Partnumber: 922500213
Housing NCS06/2--LG1 1/2
Partnumber: 922500313
Housing NCS06/2--LG1 3/8
Partnumber: 922500413
LINE BODY, NCS 06/2 DG 1/2 NCS06/2-DG 1/2
Partnumber: 922500513
LINE BODY, NCS 06/2 DG 3/8 NCS06/2-DG 3/8
Partnumber: 922500613
Sealkit SDC 08-2 B
Partnumber: 354000119
SOLENOID VALVE EVK 06/C5-00-00 EVK06/C5--00-00-HD-00
Partnumber: 805405319
Activation
Solenoid

Brand Name
Danfoss

Cavity
NCS06/2

Contamination level max.
20/18/14 - ISO 4406

Filter built-in
No

Flow rate nominal LMin
40 lpm

Manual operated
No

Model code
EVK06/C5-00-00-HD-00

Number of ways/positions
2/2

Oil viscocity recommended
12 - 54 cSt

Pressure max.
210 bar

Sealing material
NBR

Solenoidtype
M16

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
45 - 50 Nm

Valve type
NC - Normally closed
Package size
0 pcs

Barcode
5704334372653

Gross weight
0,43 Kg

Net weight
0,43 Kg

Country of origin

Intrastat code
84812010

This is a 2-way, 2-position, poppet type, direct acting, normally closed, bi-directional solenoid valve. In its de-energized condition, fl­ow is blocked in both directions. Leakage in either direction is kept to a minimum due to the poppet design. When energized, ­flow can take place from port 2 to 1 and from 1 to 2.

These valves come standard with a push pin manual override. These valves can be used to hold loads in position or interrupt a pressure line where fl­ow is expected to pass in both directions in the de-energized condition. They do not suffer from momentary opening due to shock pressures.
