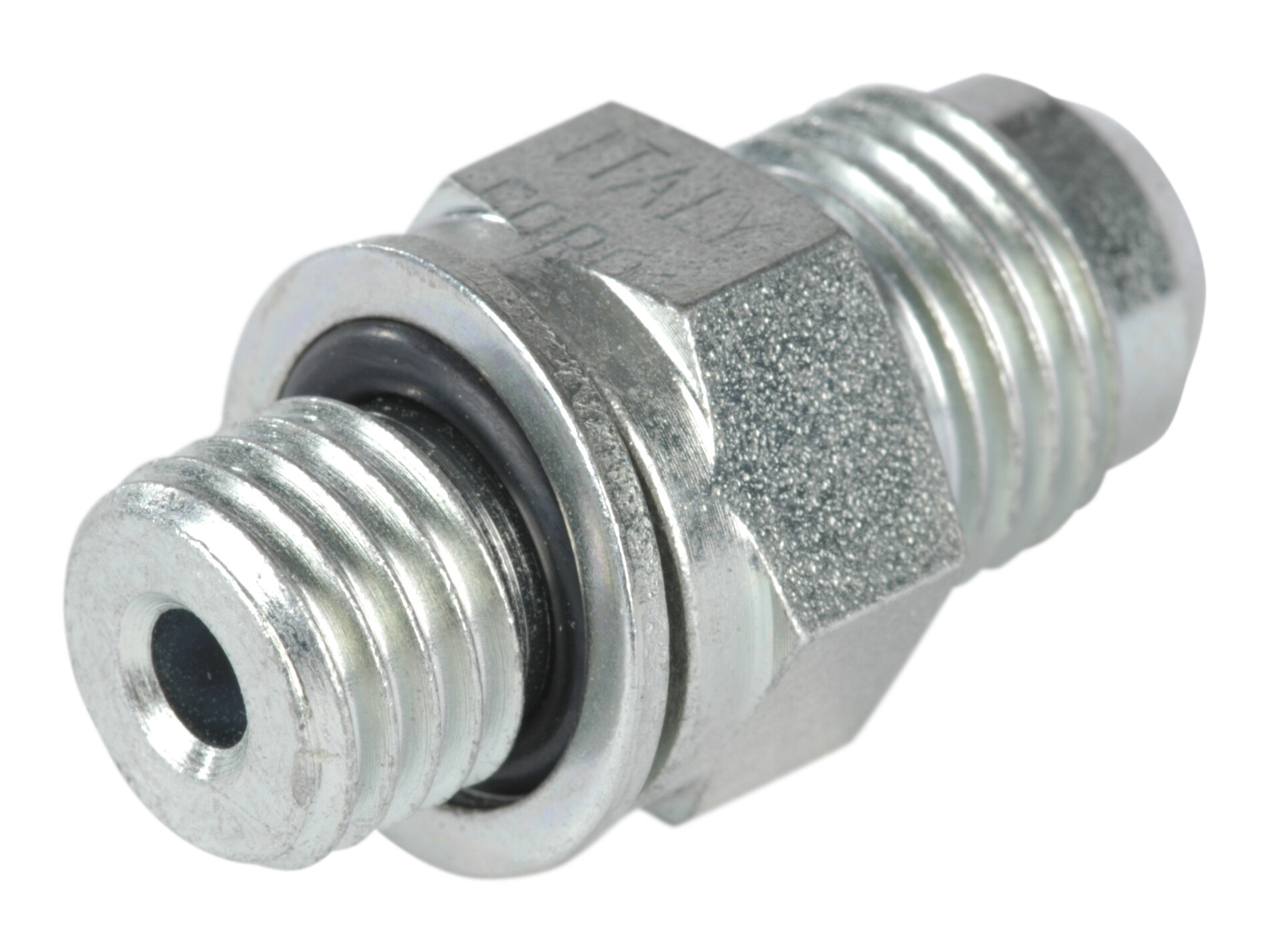

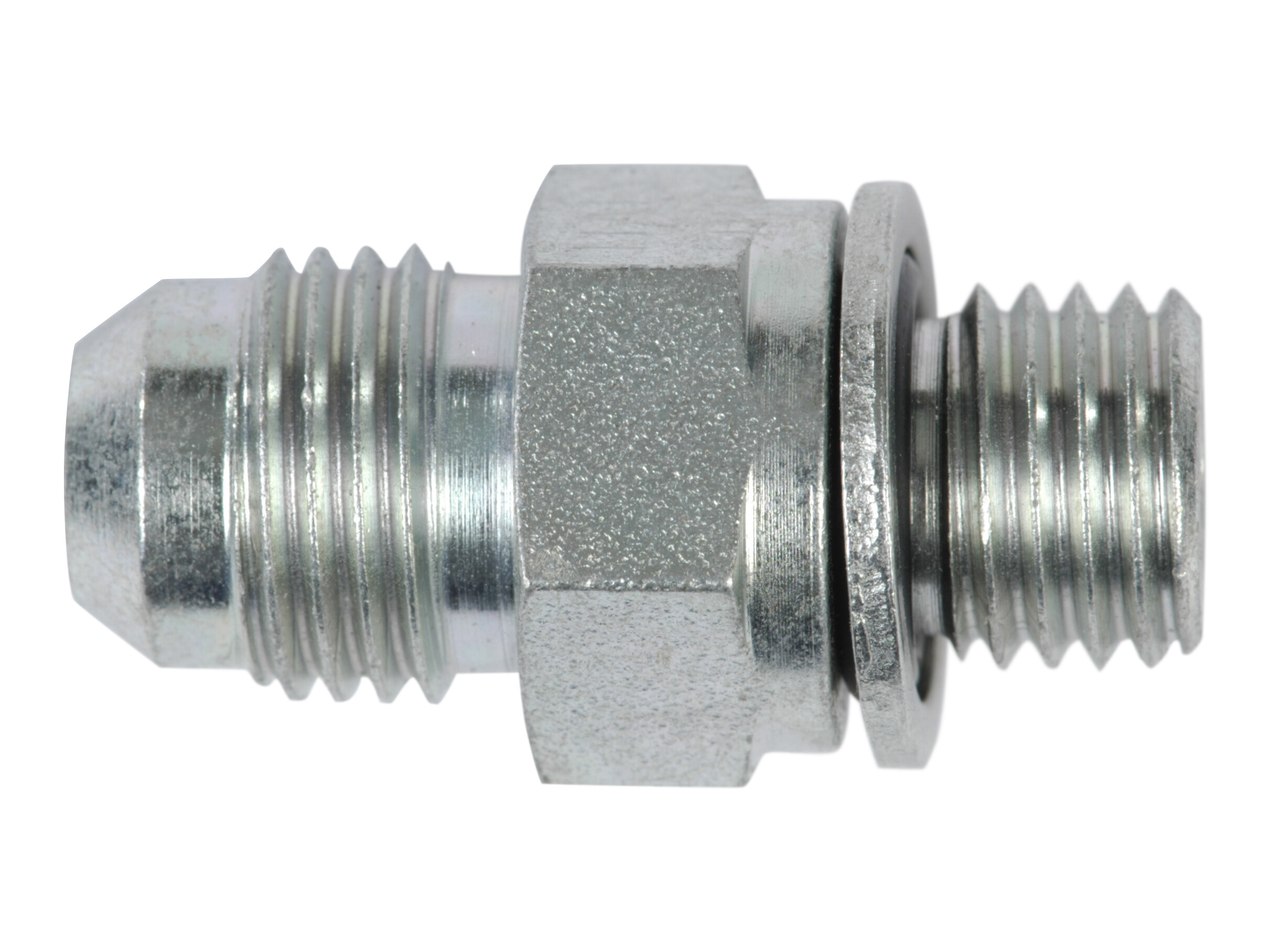

Indskruning 9/16-18 JIC udv x M12x1.5 udv
Indskruning 9/16-18 JIC udv x M12x1.5 udv
Partnumber:
M-10-12
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
Dimension A
34.5 mm
Dimension B
14 mm
Dimension CH
17 mm
Dimension D
9.5 mm
Dimension F metric
M12x1,5
Dimension J
9/16-18 JIC
Dimension T
10 mm
Material
Stål
Model code
SA102067/1012
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
9/16-18 JIC
Thread outer metric
M12x1,5
Package size
0 pcs
Barcode
5704334197577
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 9/16-18 JIC udv x M12x1.5 udv
