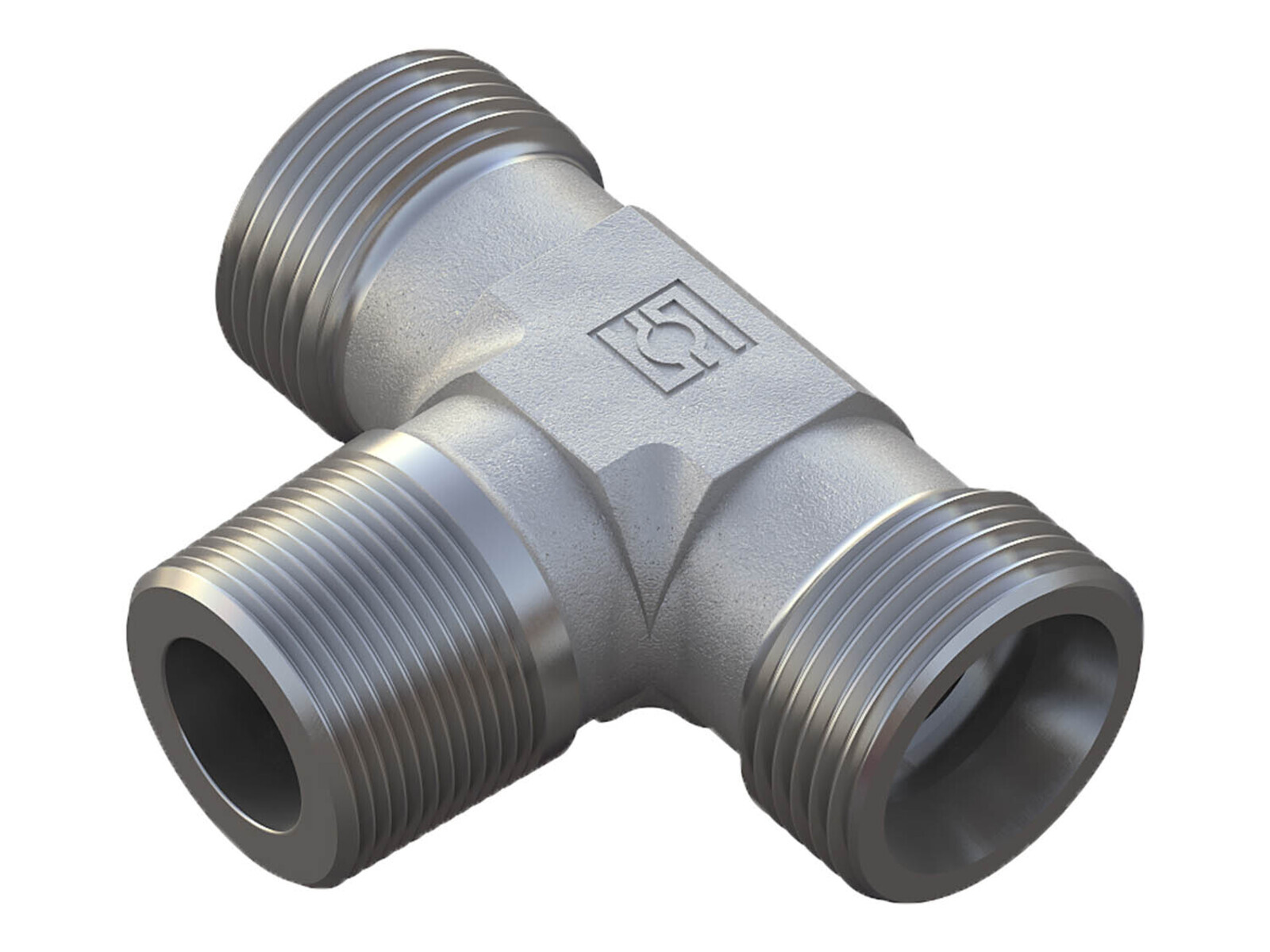

Stud branch tee - ø6LL x 1/8" BSPT

Partnumber:

XTE06LLKR

Package size:

1 st

Min. order quantity is:

1 st

Specifications
Dimensions and shipping

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Diameter pipe

6 mm

Dimension D1

6 mm

Dimension D2

4.5 mm

Dimension D3

4.5 mm

Dimension L

15 mm

Dimension L1

21 mm

Dimension L2

9.5 mm

Dimension L3

17 mm

Dimension S1

9 mm

Dimension S2

12 mm

Dimension i

8 mm

Material

Steel

Model code

FI-TE-06LLRk-W3

Pressure max.

100 bar

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

Series

Surface treatment

Zinc-Nickel plated

Temperature max.

+120 °C

Temperature min.

-40 °C

Thread T

R 1/8 BSPT

Thread outer

R 1/8 BSPT

Thread outer metric

M10x1

Package size

1 st

Barcode

430137

Gross weight

0,032 Kg

Net weight

0,032 Kg

Country of origin

deu

Product information
Measure sketch

Stud branch tee - ø6LL x 1/8" BSPT

Note: Opening 3D files requires a program that supports the file format
