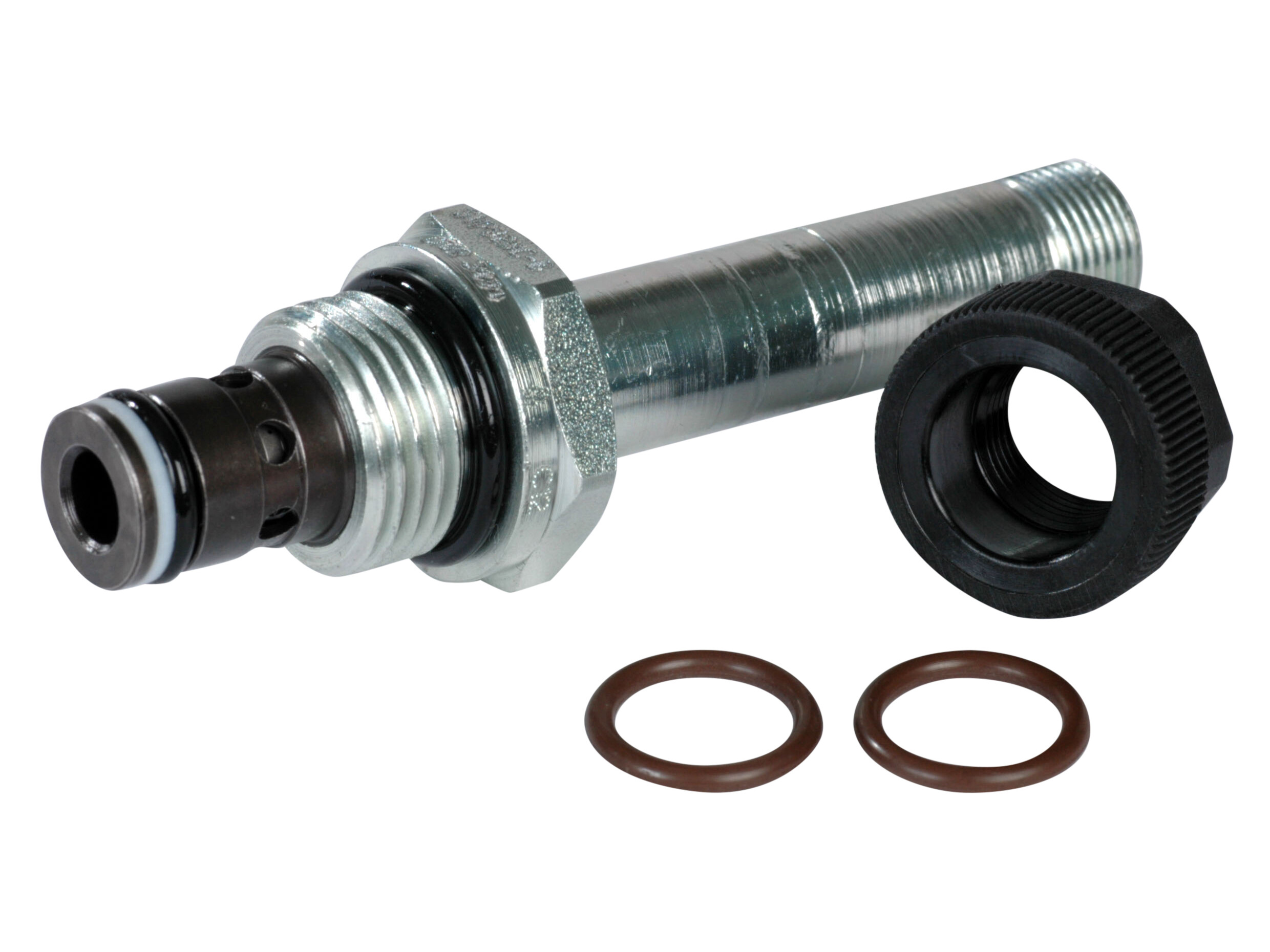

SOLENOID VALVE POPPET SVP08-NC-00-00-B-00
This is a 2-way, 2-position, poppet type, pilot operated, normally closed solenoid valve. In its de-energized condition, flow passes from port 1 to 2 but is blocked in the opposite direction. When energized, flow passes from port 2 to 1 but is restricted in the opposite direction.
Some models have the option of a filter at port 2. Due to the low leakage provided by the poppet design, these valves can be used to hold loads in position and bypass excess oil to tank.
Artikelnummer:
805314919
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Aktivering
Solenoid
Antal väger/positioner
2/2
Flödeshastighet nominell LMin
35 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Inbyggt filter
No
Kavitet
SDC08-2
Magnetspoltyp
M13 - R13
Manuellt styrd
No
Modell kod
SVP08-NC-00-00-B-00
Märke namn
Danfoss
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
NBR
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
230 bar
Ventiltyp
NC - Normally closed
Åtdragning moment
35 - 40 Nm
Pakke str.
1 st
Stregkode
374829
Brutto vægt
0,23 Kg
Netto vægt
0,23 Kg
Oprindelsesland
Intrastat varekode
84812010
This is a 2-way, 2-position, poppet type, pilot operated, normally closed solenoid valve. In its de-energized condition, flow passes from port 1 to 2 but is blocked in the opposite direction. When energized, flow passes from port 2 to 1 but is restricted in the opposite direction.
Some models have the option of a filter at port 2. Due to the low leakage provided by the poppet design, these valves can be used to hold loads in position and bypass excess oil to tank.
