Logikelement SUN T-33A

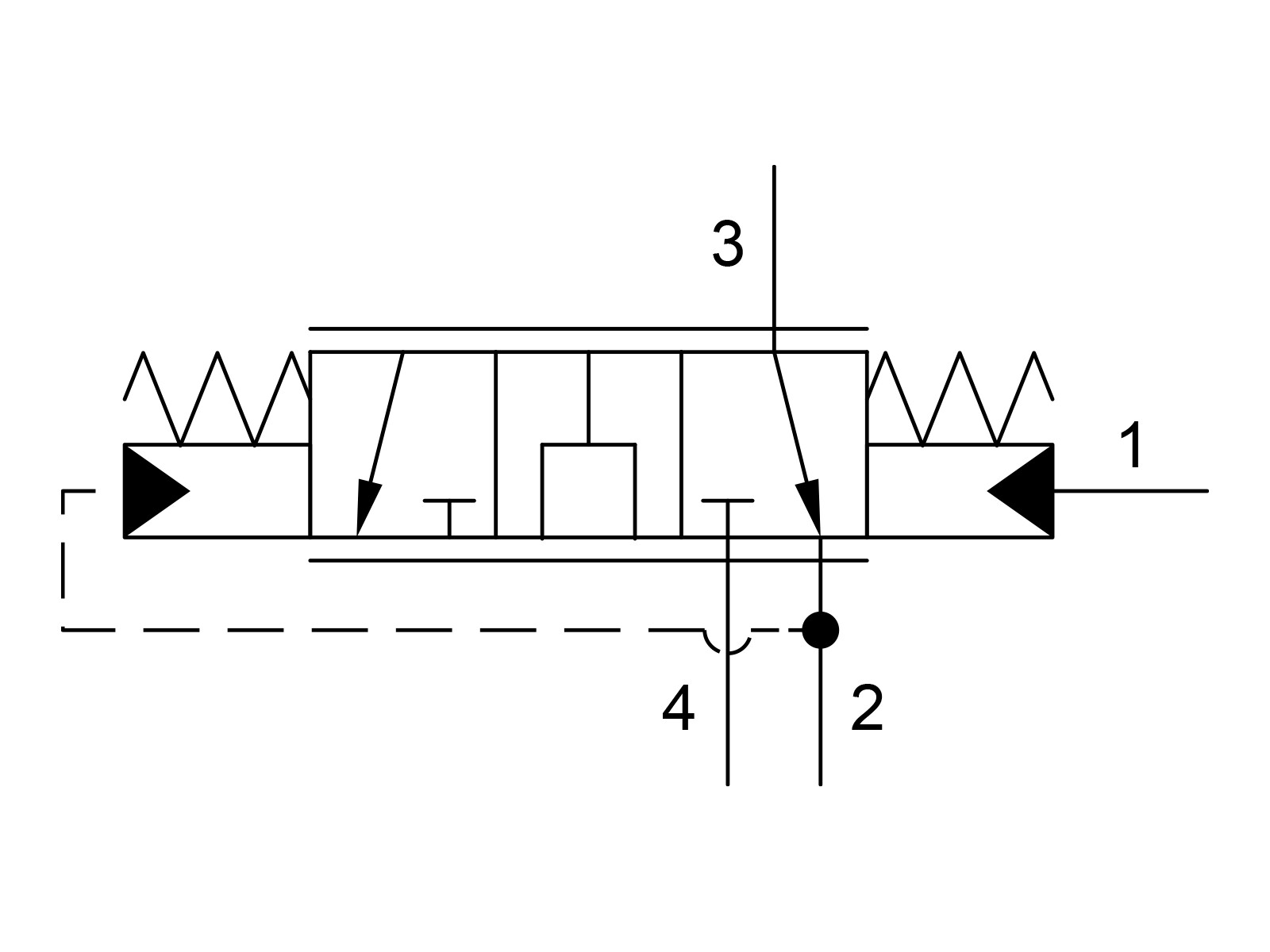

Bypass/restrictive modulating elements, when combined with an external orifice, create a bypass/restrictive flow control. Input flow (port 3) is directed to the priority or control flow at port 2. Once the priority requirements are met, excess flow is bypassed out port 4. The after-orifice signal is connected to port 1.
The before-orifice design allows both pressure and flow to be controlled on the priority side of the circuit regardless of pressure in the bypass circuit. These valves work equally well in either closed or open center systems.
Their main use is to allow after-market accessories to be driven off the host machine's hydraulic system without adding an additional pump.
Varenummer:
LHHA-XFN
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Sun Hydraulics
Cavity
T-33A
Contamination level max.
19/17/14 - ISO 4406
Flow rate nominal LMin
240 lpm
Material
Steel
Oil viscocity recommended
2,8 - 380 cSt
Pressure max.
350 bar
Sealing material
NBR
Temperature max.
+110 °C
Temperature min.
-30 °C
Torque tightening
203 - 217 Nm
Valve type
Logic element
Pakke str.
1 st
Stregkode
316706
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
usa
Bypass/restrictive modulating elements, when combined with an external orifice, create a bypass/restrictive flow control. Input flow (port 3) is directed to the priority or control flow at port 2. Once the priority requirements are met, excess flow is bypassed out port 4. The after-orifice signal is connected to port 1.
The before-orifice design allows both pressure and flow to be controlled on the priority side of the circuit regardless of pressure in the bypass circuit. These valves work equally well in either closed or open center systems.
Their main use is to allow after-market accessories to be driven off the host machine's hydraulic system without adding an additional pump.
