Logikelement SUN T-23A

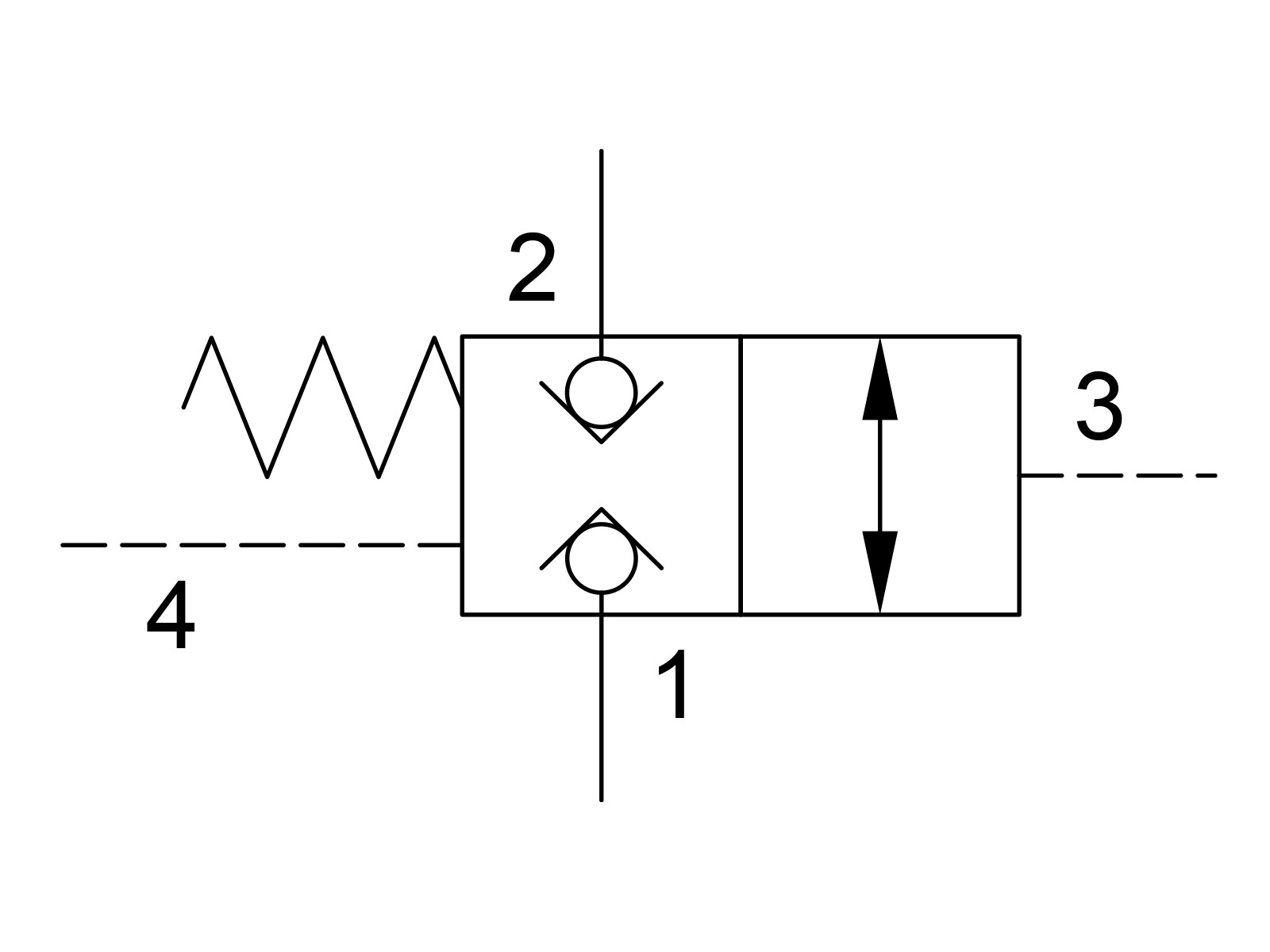

This is a normally closed, balanced poppet, switching element. Pilot pressure at port 3 shifts the valve to the open position.

Partnumber:
DKHS-XHN

Package size:
1 st

Min. order quantity is:
1 st
Brand Name
Sun Hydraulics

Cavity
T-23A

Contamination level max.
19/17/14 - ISO 4406

Flow rate nominal LMin
240 lpm

Material
Steel

Oil viscocity recommended
2,8 - 380 cSt

Pressure max.
350 bar

Pressure opening
20 bar

Sealing material
NBR

Temperature max.
+110 °C

Temperature min.
-30 °C

Torque tightening
203 - 217 Nm
Package size
1 st

Barcode
236696

Gross weight
Kg

Net weight
Kg

Country of origin
usa

This is a normally closed, balanced poppet, switching element. Pilot pressure at port 3 shifts the valve to the open position.
