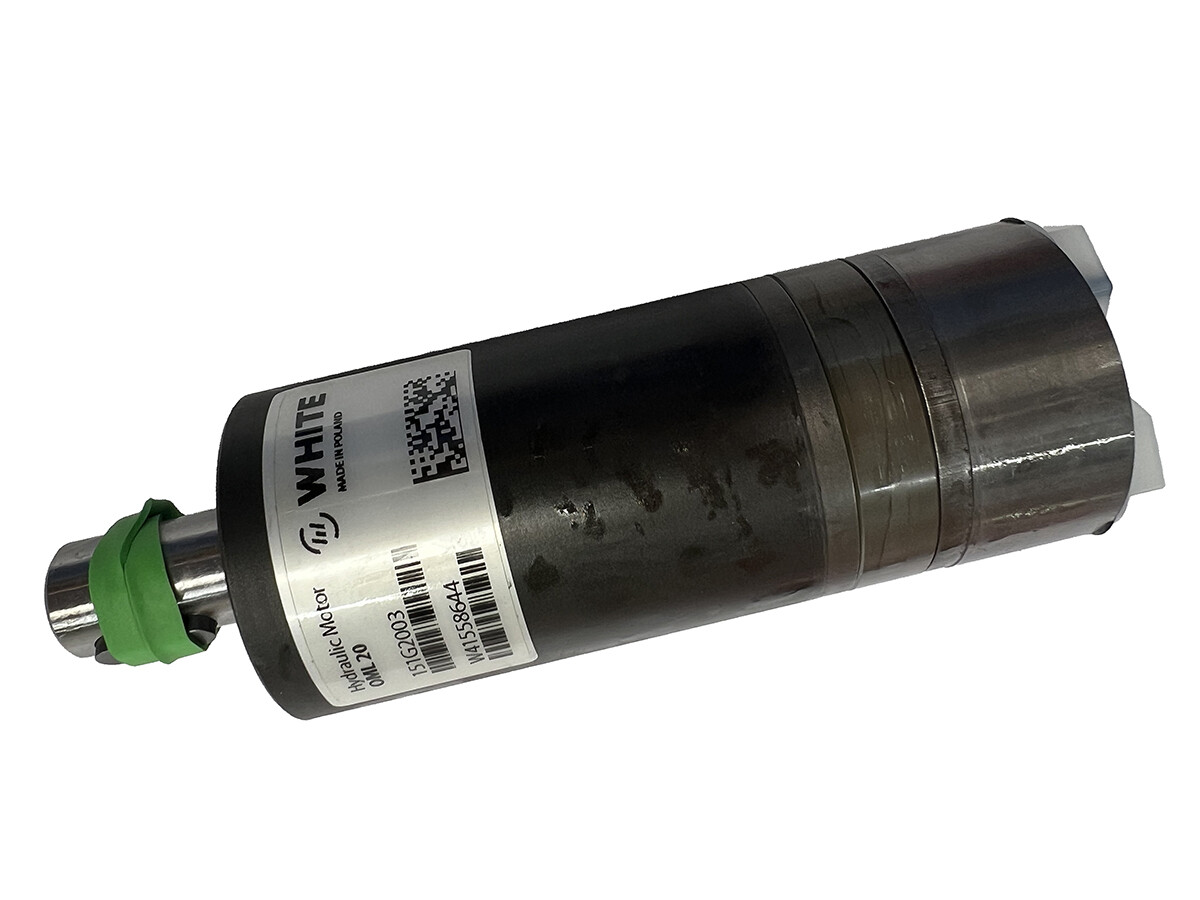

OML 20 HYDRAULIC MOTOR
OML 20 HYDRAULIC MOTOR
Varenummer:
151G2003
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
White
C
M5
Continuous power max.
1.1 kW
Continuous rotation max.
800 rpm
D
G 1/4 BSP
Displacement
20 cm3
Holes circle
36 mm
Intermittent Rotation speed Max.
1000
Intermittent Torque Max.
32 Nm
L
108,6 mm
L1
10,2 mm
Mounting flange
OMM 45
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Rear
Power max.
2 kW
Pressure continous max.
125 bar
Pressure drop continuous max.
70 bar
Pressure intermittent max.
140 bar
Pressure peak max.
145 bar
Sealing material
NBR
Shaft diameter
16 mm
Shaft keyway
5,0 mm
Shaft spline
DIN 6885
Shaft type
Cylindrical
Torque continuous max.
18 Nm
Working ports
G 1/4 BSP
Package size
1 st
Barcode
333757
Gross weight
1,20 Kg
Net weight
1,20 Kg
Country of origin
Intrastat code
84122981
OML 20 HYDRAULIC MOTOR
