OMSW 80 HYDRAULIC MOTOR
“OMS Hub Motor (OMSW). The retracted installation flange enables installation on the wheel hub, whereby the radial load is directed between the tapered roller bearings. The bike motor is very compact."
Partnumber:
151F0521
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
White
C
G 1/4 BSP
Continuous power max.
15.5 kW
Continuous rotation max.
810 rpm
D
M10
Displacement
80.5 cm3

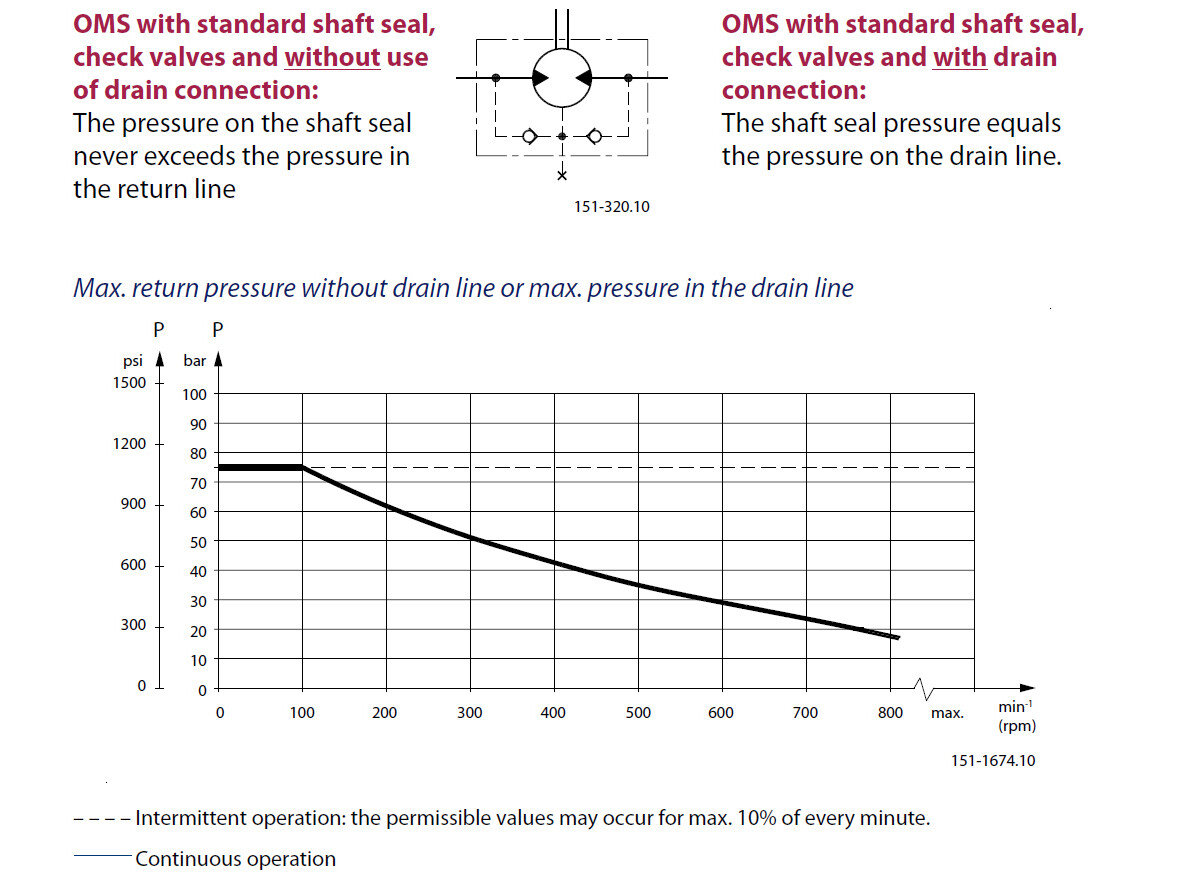

Drainport
G 1/4 BSP
E
G 1/2 BSP
Holes circle
160 mm
Intermittent Effect Max.
19.5
Intermittent Rotation speed Max.
1000
Intermittent Torque Max.
310 Nm
L
167 mm
L1
14 mm
L2
124 mm
Mounting flange
Wheel 125
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure continous max.
230 bar
Pressure drop continuous max.
210 bar
Pressure intermittent max.
295 bar
Pressure peak max.
300 bar
Recess
125,0 mm
Rotational speed max.
810 rpm
Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrical
Torque continuous max.
240 Nm
Working ports
G 1/2 BSP
Package size
1 st
Barcode
333741
Gross weight
11,10 Kg
Net weight
11,10 Kg
Country of origin
Intrastat code
84122981
“OMS Hub Motor (OMSW). The retracted installation flange enables installation on the wheel hub, whereby the radial load is directed between the tapered roller bearings. The bike motor is very compact."
