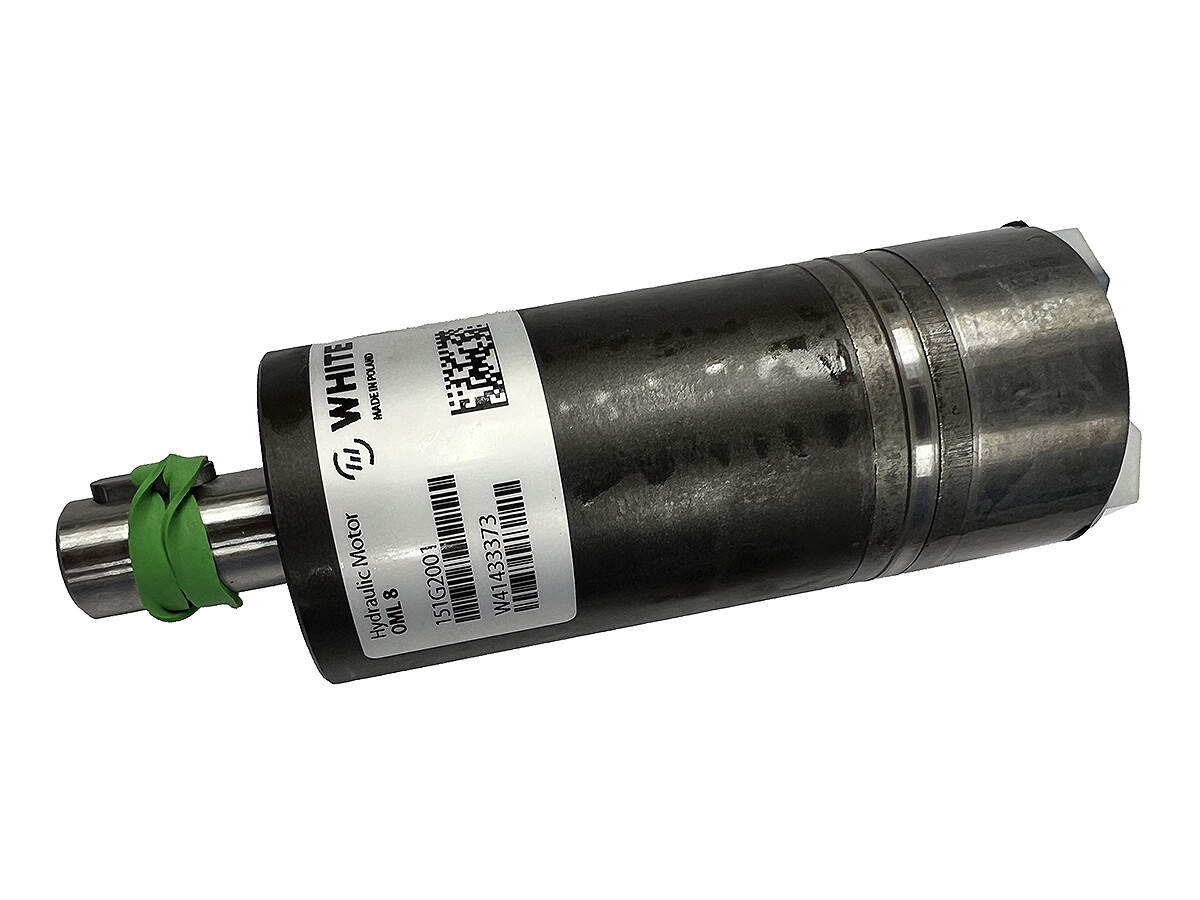

OML 8 HYDRAULIC MOTOR
OML 8 HYDRAULIC MOTOR
Varenummer:
151G2001
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
White
C
M5
Continuous power max.
1.1 kW
Continuous rotation max.
2000 rpm
D
G 1/4 BSP
Displacement
8 cm3
Holes circle
36 mm
Intermittent Effect Max.
2 kW
Intermittent Rotation speed Max.
2500 rpm
Intermittent Torque Max.
13 Nm
L
102,5 mm
L1
4,1 mm
Mounting flange
OMM 45
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Rear
Power max.
2 kW
Pressure continous max.
125 bar
Pressure drop continuous max.
70 bar
Pressure intermittent max.
140 bar
Pressure peak max.
145 bar
Sealing material
NBR
Shaft diameter
16 mm
Shaft keyway
5,0 mm
Shaft spline
DIN 6885
Shaft type
Cylindrical
Torque continuous max.
7 Nm
Working ports
G 1/4 BSP
Package size
1 st
Barcode
333822
Gross weight
1,20 Kg
Net weight
1,20 Kg
Country of origin
Intrastat code
84122981
OML 8 HYDRAULIC MOTOR
