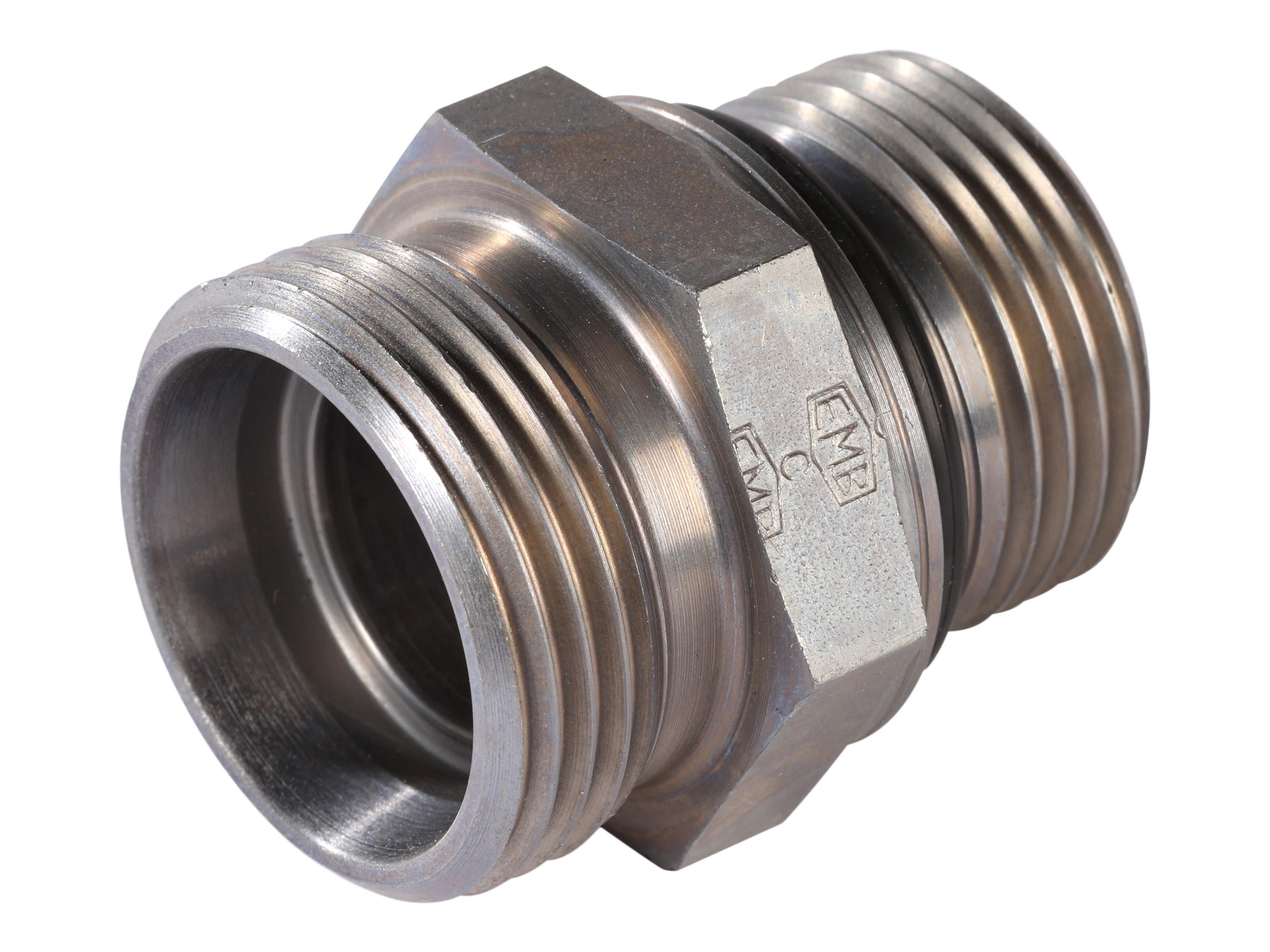

Straight fitting 0° - S-series - DIN male x MM male stud O-ring seal ISO6149 - A-MSOX / XGE-SMO

Adapter 10S, M16x1.5 OR ISO6149 Port

Adapter 12S, M18x1.5 OR ISO6149 Port

Adapter 16S, M22x1.5 OR ISO6149 Port

Stud fitting - Ø20S x M27x2 - O-ring

Adapter 25S, M33x2 OR ISO6149 Port

Adapter 30S, M42x2 OR ISO6149 Port

SELECT VARIANT

Partnumber	Description	Diameter rør	Gevind udvendig metrisk	Tryk maks.
XGE10SMO	Adapter 10S, M16x1.5 OR ISO6149 Port	10 mm	M16x1,5	630 bar
XGE12SMO	Adapter 12S, M18x1.5 OR ISO6149 Port	12 mm	M18x1,5	630 bar
XGE16SMO	Adapter 16S, M22x1.5 OR ISO6149 Port	16 mm	M22x1,5	630 bar
XGE20SMO	Stud fitting - Ø20S x M27x2 - O-ring	20 mm	M27x2	400 bar
XGE25SMO	Adapter 25S, M33x2 OR ISO6149 Port	25 mm	M33x2	400 bar
XGE30SMO	Adapter 30S, M42x2 OR ISO6149 Port	30 mm	M42x2	400 bar

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Materiale

Steel

Mærke navn

Stauff

Pakningsmateriale

NBR

REACH compliant

Yes

RoHs compliant

Yes

Serie

Sikkerhedsfaktor

Temperatur maks.

+100

Temperatur min.

-35

Vinkel
