Stud branch tee stilbar - ø15L x 1/2" BSP
Stud branch tee stilbar - ø15L x 1/2" BSP
Partnumber:
XTEE15LR
Package size:
10 st
Min. order quantity is:
1 st
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
15 mm

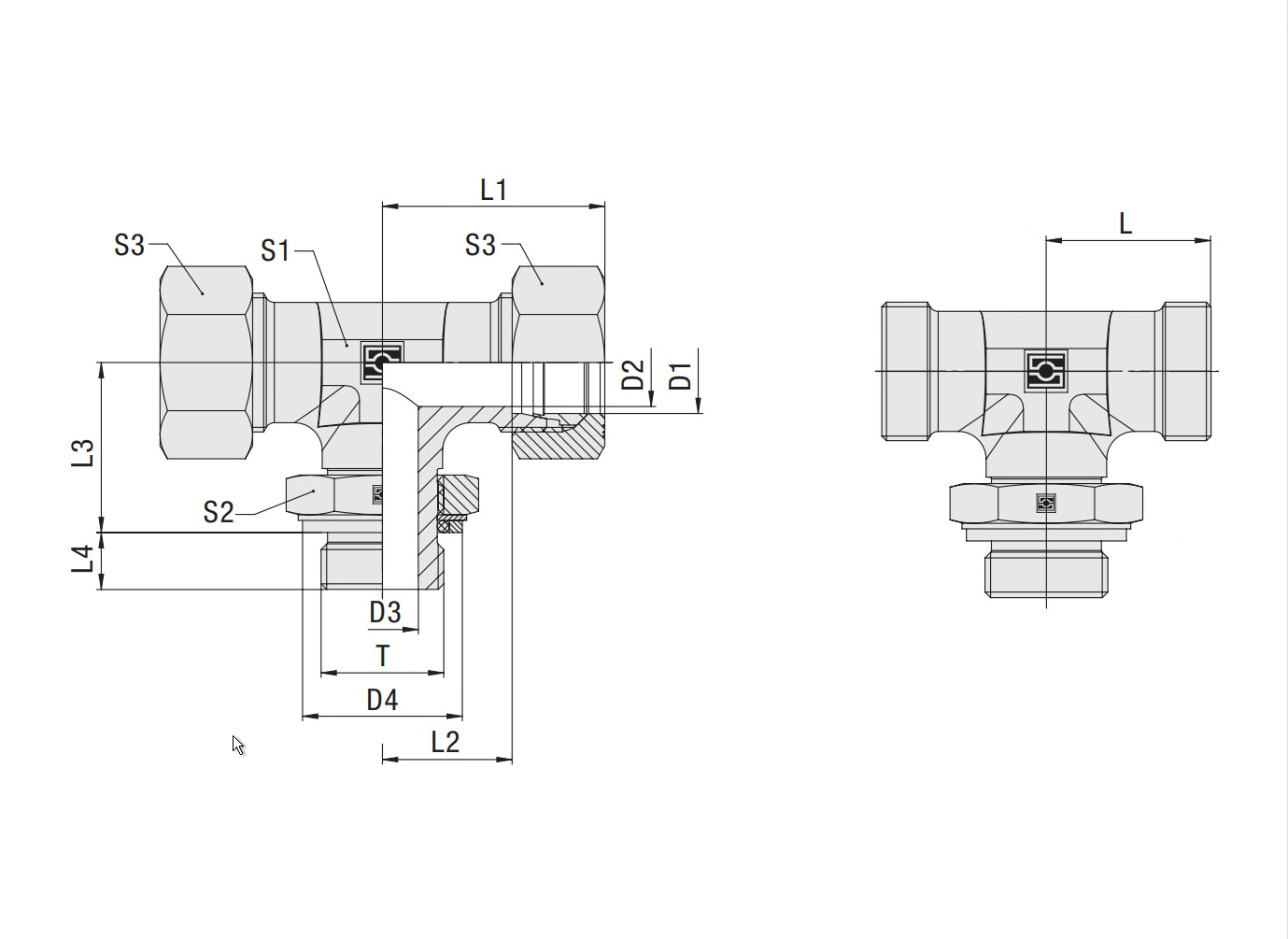

Dimension D1
15 mm
Dimension D2
12 mm
Dimension D3
12 mm
Dimension D4
27.8 mm
Dimension L
28 mm
Dimension L1
36 mm
Dimension L2
21 mm
Dimension L3
29 mm
Dimension L4
13 mm
Dimension S1
22 mm
Dimension S2
27 mm
Dimension S3
27 mm
Material
Steel
Model code
XCE15RLOAZN
Pressure max.
250 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
NBR
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T
G 1/2 BSP
Thread outer
G 1/2 BSP
Thread outer metric
M22x1,5
Torque tightening
105 Nm
Type
Forged
Package size
10 st
Barcode
240613
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
DEU
Intrastat code
73071110
Stud branch tee stilbar - ø15L x 1/2" BSP
