Orbit motor OMPW N-X 200 - 28.5mm taper 1:10 shaft
Orbit motor OMPW N-X 200 - 28.5mm taper 1:10 shaft
Osanumero:
11186749
Pakkauskoko:
1 pcs
Pienin tilausmäärä on:
1 pcs

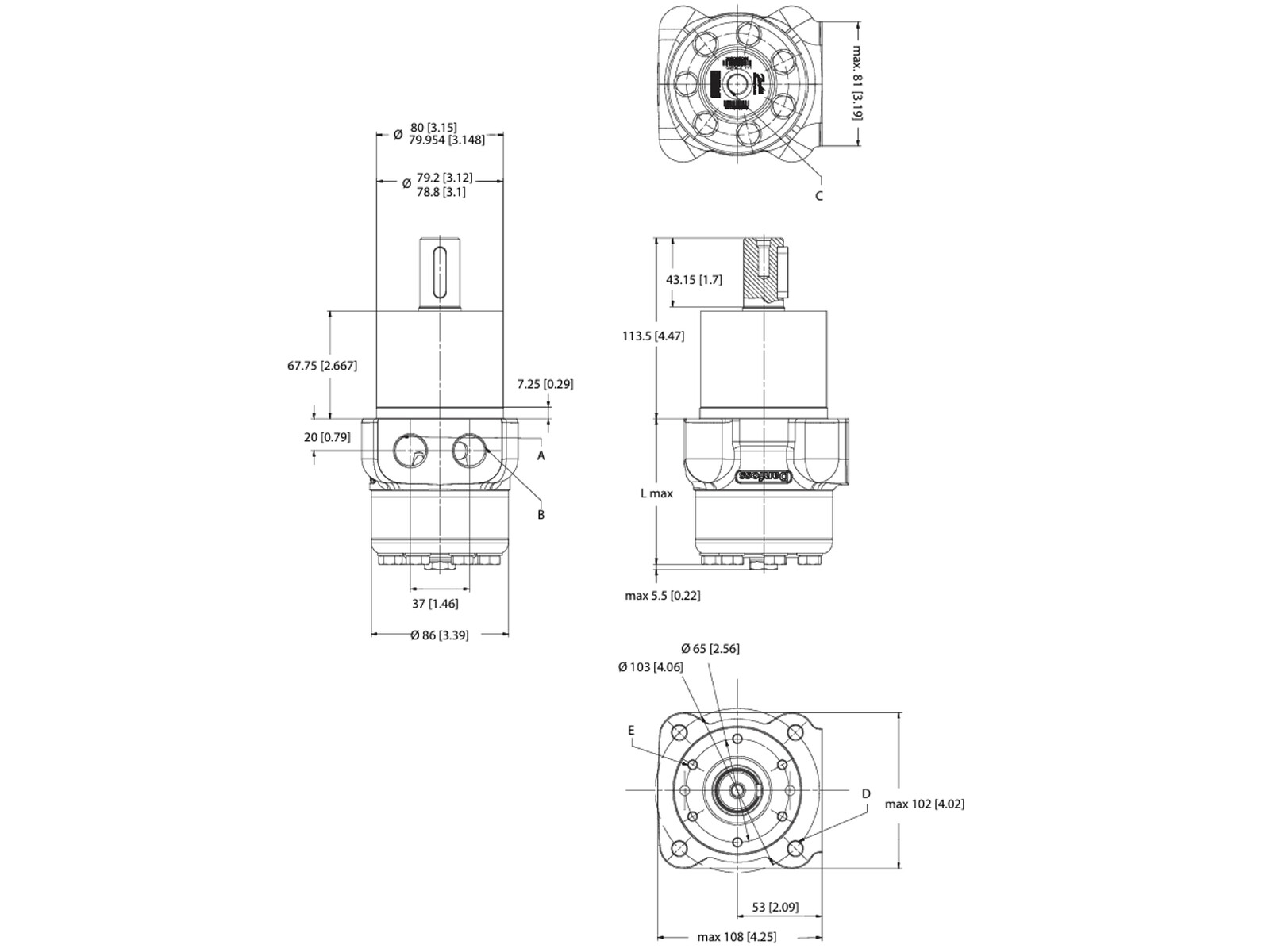

A
G 1/2 BSP
B
G 1/2 BSP
Brand Name
White
C
G 1/4 BSP
Continuous power max.
10.9 kW
Continuous rotation max.
310 rpm
D
M10
Displacement
194.6 cm3
Drainport
G 1/4 BSP
Holes circle
103 mm
Intermittent Effect Max.
13.7 kW
Intermittent Rotation speed Max.
385 rpm
Intermittent Torque Max.
495 Nm
L
92,9 mm
Mounting flange
Wheel 80
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure continous max.
200 bar
Pressure drop continuous max.
155 bar
Pressure intermittent max.
225 bar
Recess
80,0 mm
Shaft cone
1:10
Shaft diameter
28,5 mm
Shaft keyway
5 mm
Shaft type
Tapered
Torque continuous max.
400 Nm
Working ports
G 1/2 BSP
Package size
1 pcs
Barcode
368920
Gross weight
Kg
Net weight
Kg
Country of origin
Intrastat code
84122981
Orbit motor OMPW N-X 200 - 28.5mm taper 1:10 shaft
