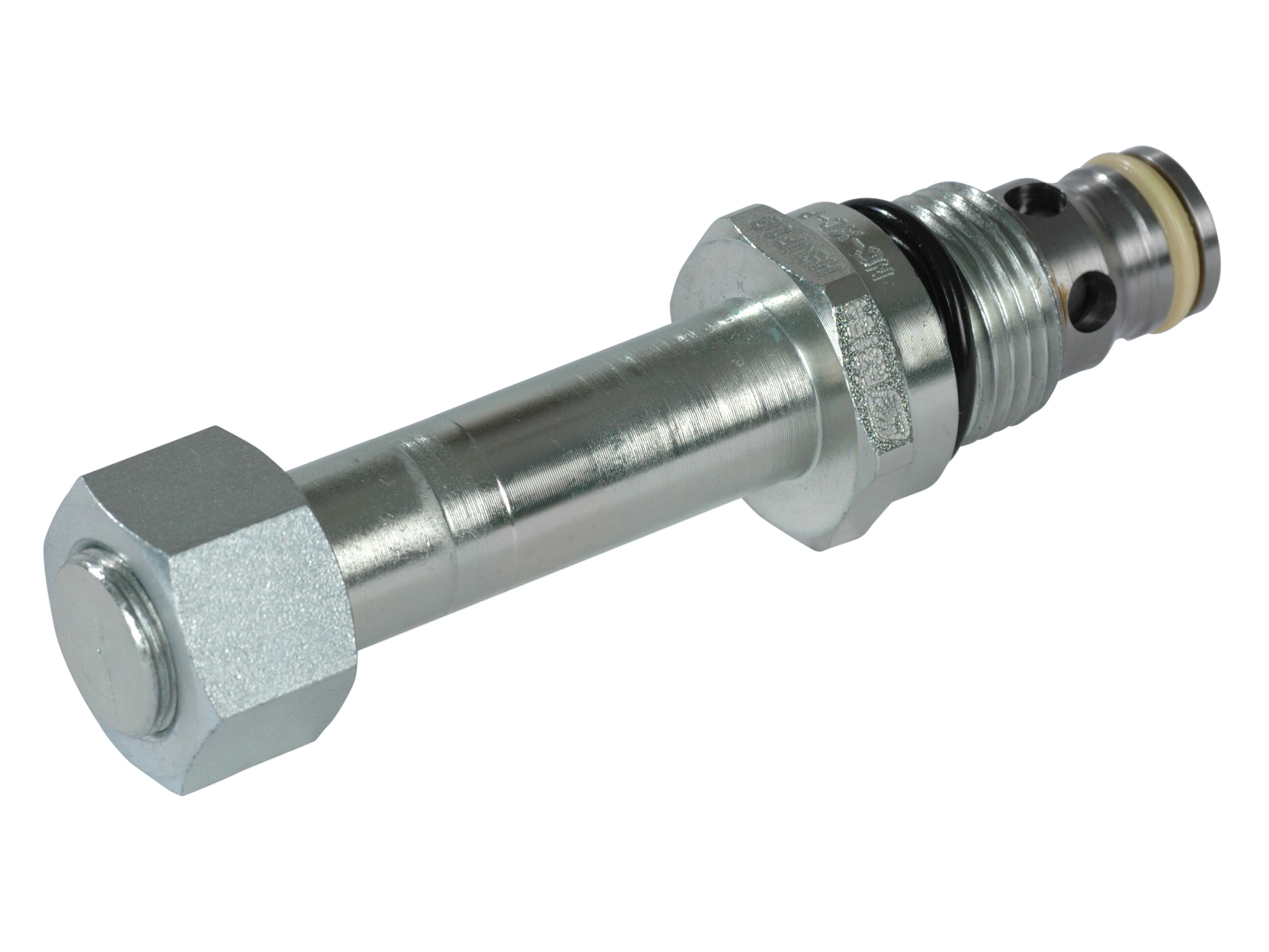

Solenoid Valve 65l/m NC HSVP10-NC-H00-00-XC-P-00

This is a normally closed, pilot-operated, poppet-style 10-size solenoid valve. When de-energized, the HSVP10-NC acts as a check valve allowing flow from port 1 to port 2 and blocking flow from port 2 to port 1. When energized, the valve’s poppet is shifted and allows flow from port 2 to port 1, and severely restricts from port 1 to port 2.



Applications:

The HSVP10-NC is designed to function as load holding or blocking valve in applications where low internal leakage is required. In load holding applications, the circuit should be designed so that the de-energized state is the position that is holding the load.

Partnumber:
11133303

Package size:
1 st

Min. order quantity is:
1 st
Activation
Solenoid

Brand Name
Danfoss

Cavity
SDC10-2

Contamination level max.
20/18/14 - ISO 4406

Filter built-in
No

Flow rate nominal LMin
80 lpm

Manual operated
No

Model code
HSVP10-NC-H00-00-XC-P-00

Number of ways/positions
2/2

Oil viscocity recommended
12 - 54 cSt

Pressure max.
350 bar

Sealing material
Polyurethane

Solenoidtype
H16

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
70 Nm

Valve type
NC - Normally closed
Pakke str.
1 st

Stregkode
374759

Brutto vægt
0,19 Kg

Netto vægt
0,19 Kg

Oprindelsesland
ITA

Intrastat varekode
85051990

This is a normally closed, pilot-operated, poppet-style 10-size solenoid valve. When de-energized, the HSVP10-NC acts as a check valve allowing flow from port 1 to port 2 and blocking flow from port 2 to port 1. When energized, the valve’s poppet is shifted and allows flow from port 2 to port 1, and severely restricts from port 1 to port 2.



Applications:

The HSVP10-NC is designed to function as load holding or blocking valve in applications where low internal leakage is required. In load holding applications, the circuit should be designed so that the de-energized state is the position that is holding the load.
