1/2" Insert - 3/4" SAE6000 flange - 90°

1/2" Insert - 3/4" SAE6000 flange - 90°

1/2" Insert - 3/4" SAE6000 flange - 90°

Connection: SAE flange.

Sealing: O-ring against metal.

Varenummer:

08GS12FLH90M

Pakke str.:

1 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

A

88 mm

B

50,5 mm

Byggehøjde

58 mm

D

1/2"

DN

12 mm

Diameter flange

41.3 mm

E

58 mm

Flange

3/4 "

Flange SAE/DIN

6000 PSI

K

41,3 mm

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Steel

Model kode

8GS-12FLH90M

Mærke navn

Gates

O-ring

24,99X3,53 mm

Overfladebehandling

TuffCoat™

REACH compliant

Yes

RoHs compliant

Yes

Slangekoblingstype

For separate ferrule

Slangestørrelse

1/2 "

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Tilspændingsmoment

70 - 77 Nm

Vinkel

90 °

Package size

1 pcs

Barcode

200045

Gross weight

0,46 Kg

Net weight

0,46 Kg

Country of origin

USA

Intrastat code

73269098

Product information

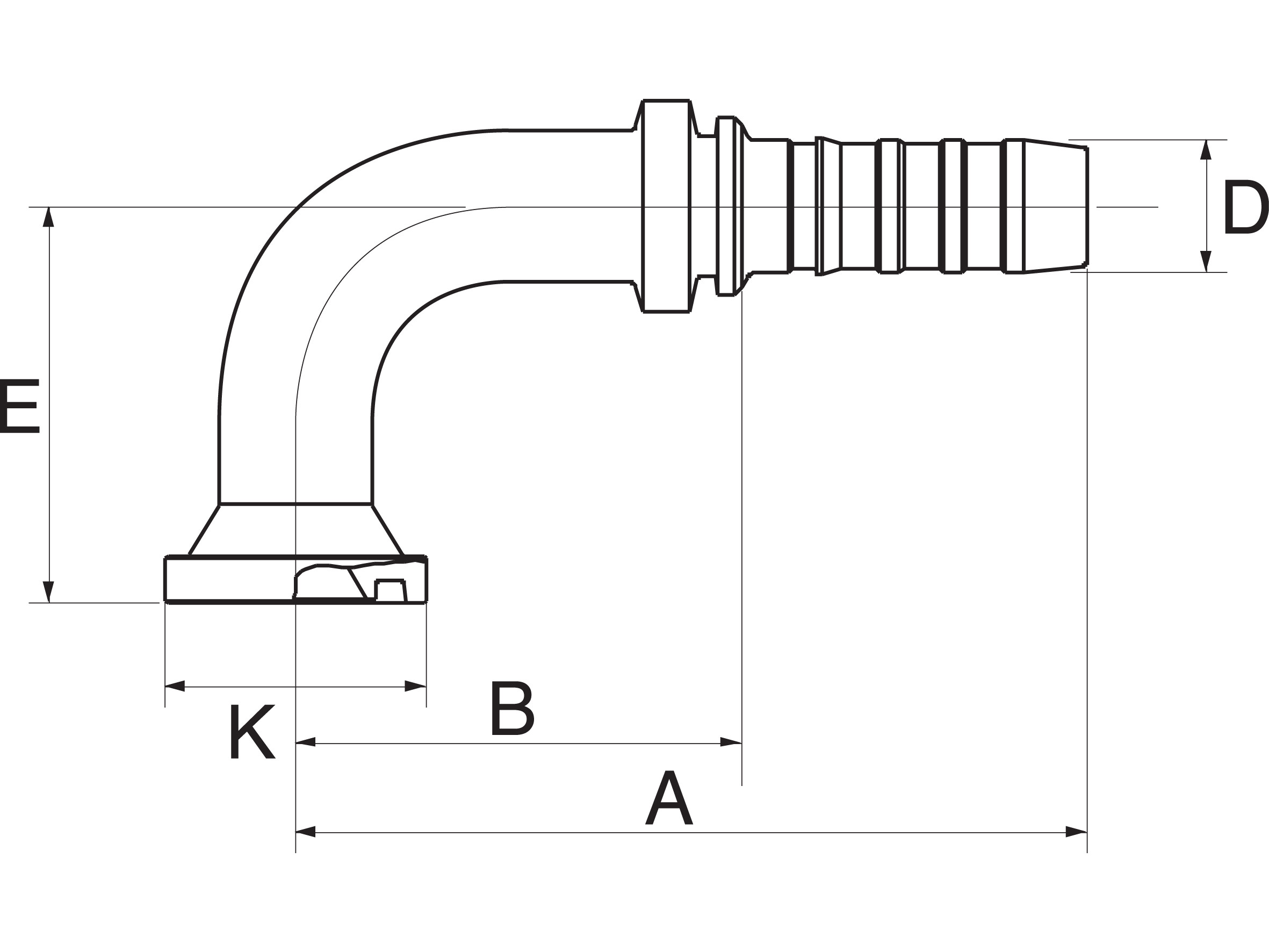

Measure sketch

Connection: SAE flange.

Sealing: O-ring against metal.

1/2" Insert - 3/4" SAE6000 flange - 90°
