Socket weld flange 90 2.1/2" SAE3000
Socket weld flange 90 2.1/2" SAE3000
Partnumber:
0538-40
Package size:
1 st
Min. order quantity is:
1 st

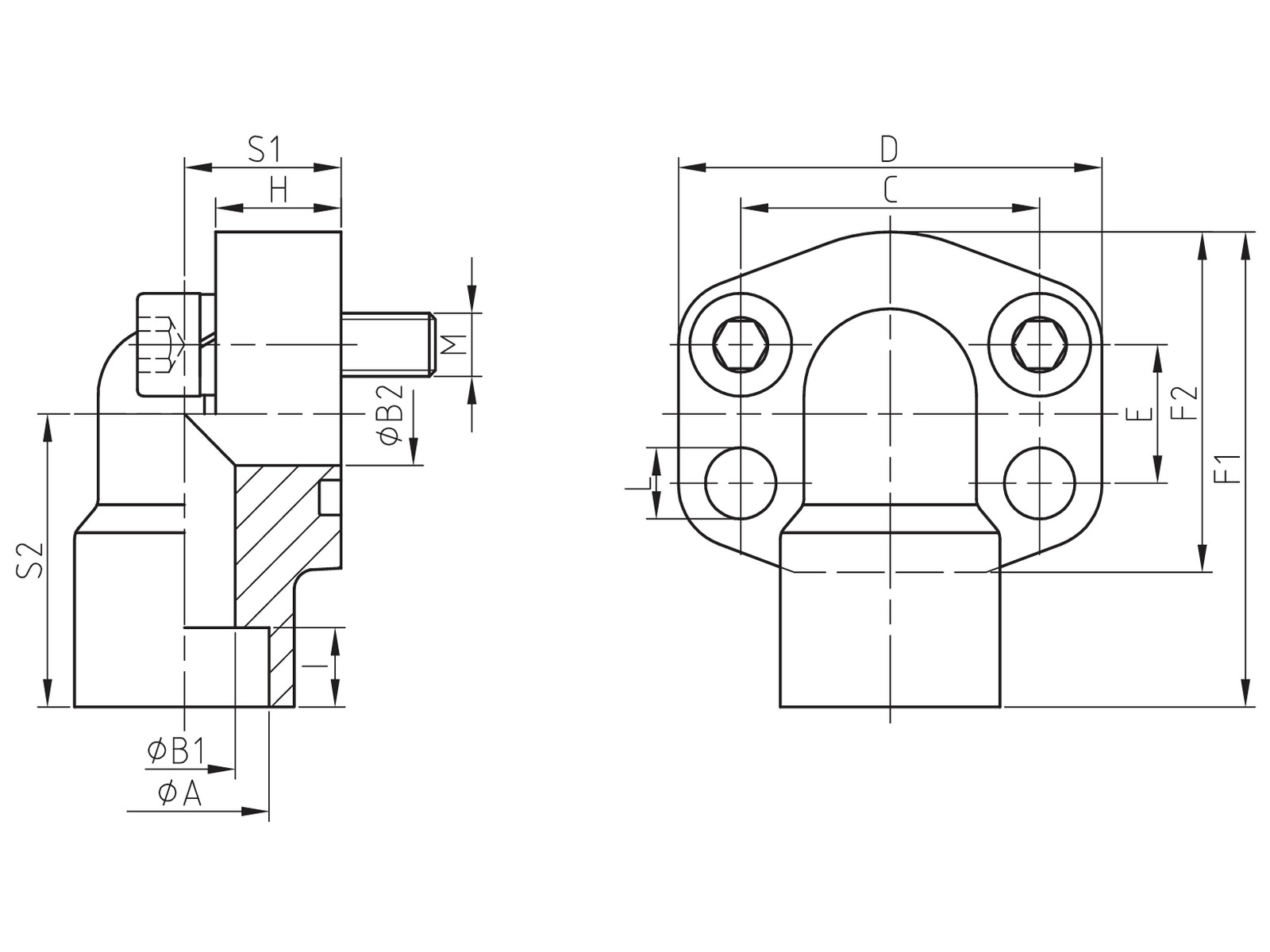

A
76,6 mm
Angle
90 °
B1
57 mm
B2
60 mm
Bolt dimension
M12x45 mm
Brand Name
Havit
C
88,9 mm
D
115 mm
Diameter Weld butt
76.6 mm
Diameter flange
84.1 mm
E
50,8 mm
F1
127 mm
F2
96 mm
Flange
2.1/2 "
Flange SAE/DIN
3000 PSI
H
25 mm
I
30 mm
L
13,5 mm
M
M12x45
Material
Steel
Number of bolts
4
O-ring
69,44X3,53 mm
Pressure max.
175 bar
S1
50 mm
S2
77 mm
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
1 st
Barcode
198656
Gross weight
2,80 Kg
Net weight
2,80 Kg
Country of origin
DEU
Intrastat code
73079100
