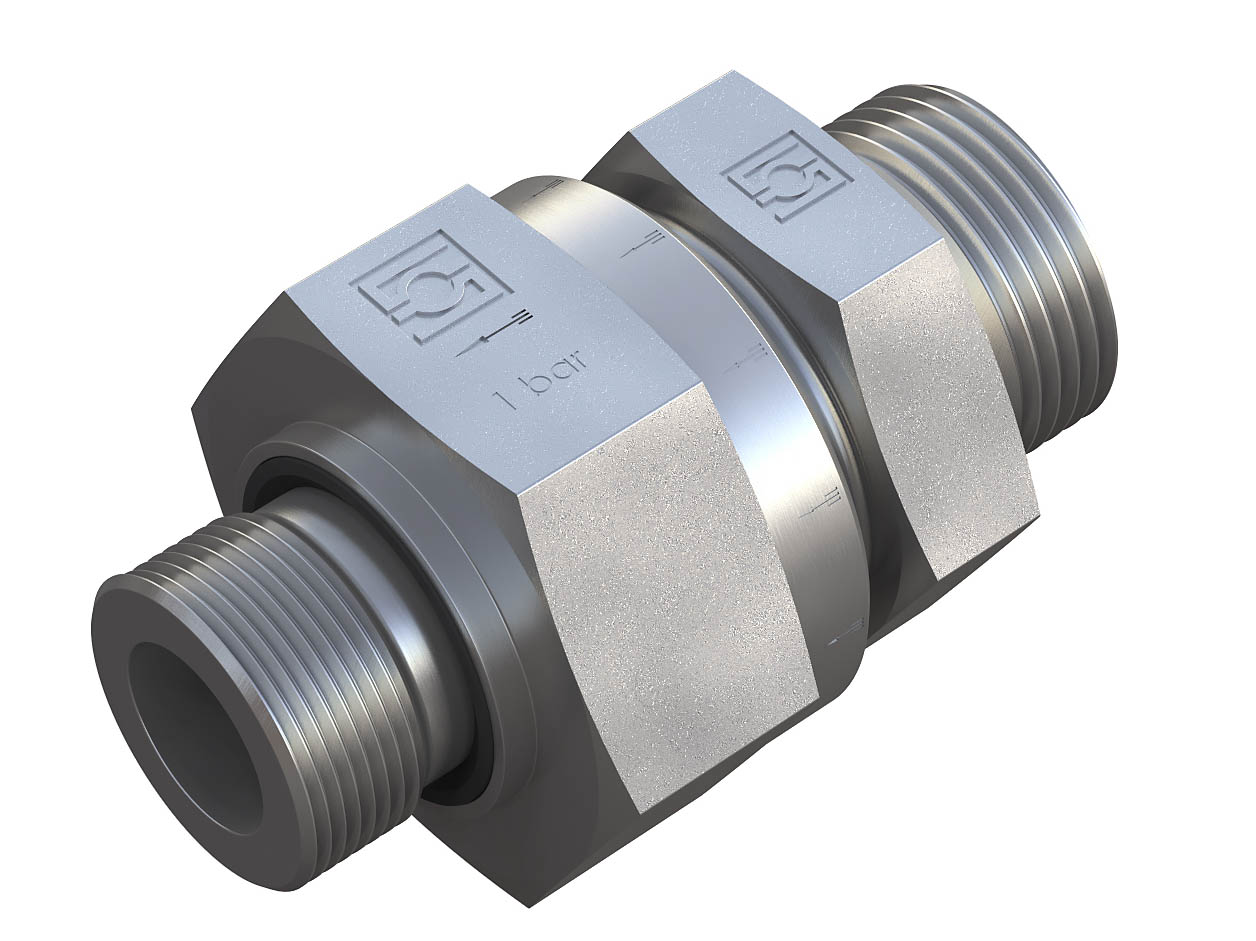

Check valves DIN2353 BSP - L-Series "RZ"

Check valves DIN2353 BSP - L-Series "RZ"

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread Pressure opening Pressure max.
XRHZ06LRED Check valve (->) - ø6L x 1/8" BSP - 1 bar - WD seal 6 mm G 1/8 BSP 1 bar 400 bar
XRHZ08LRED Check valve (->) - ø8L x 1/4" BSP - 1 bar - WD seal 8 mm G 1/4 BSP 1 bar 400 bar
XRHZ10LRED Check valve (->) - ø10L x 1/4" BSP - WD seal G 1/4 BSP 1 bar 400 bar
XRHZ12LRED Check valve (->) - ø12L x 3/8" BSP - 1 bar - WD seal 12 mm G 3/8 BSP 1 bar 400 bar
XRHZ15LRED Check valve (->) - ø15L x 1/2" BSP - 1 bar - WD seal 15 mm G 1/2 BSP 1 bar 400 bar
XRHZ18LRED Check valve (->) - ø18L x 1/2" BSP - 1 bar - WD seal 18 mm G 1/2 BSP 1 bar 400 bar
XRHZ22LRED Check valve (->) - ø22L x 3/4" BSP - 1 bar - WD seal 22 mm G 3/4 BSP 1 bar 250 bar
XRHZ28LRED Check valve (->) - ø28L x 1" BSP - 1 bar - WD seal 28 mm G 1 BSP 1 bar 250 bar
XRHZ35LRED Check valve (->) - ø35L x 1.1/4" BSP - 1 bar - WD seal 35 mm G 1.1/4 BSP 1 bar 250 bar
XRHZ42LRED Check valve (<-) - Ø42L x 1.1/2" BSP - 1 bar - WD seal 42 mm G 1.1/2 BSP 1 bar 250 bar
Brand Name
Stauff
Pressure opening
1
Temperature max.
+90
Temperature min.
-20
