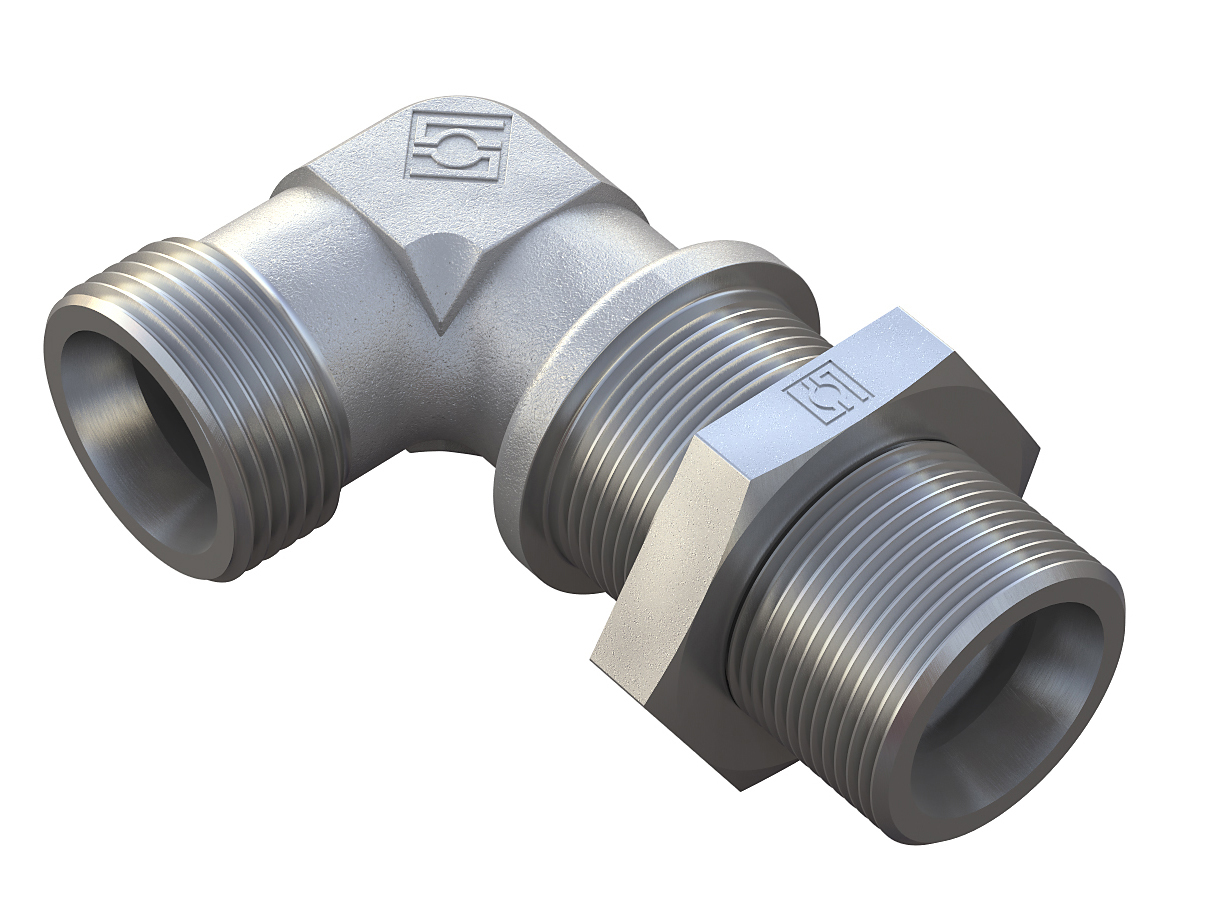

Bulkhead fitting elbow 90° - S-series

Bulkhead fitting elbow 90° - S-series

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description
XWSV06S Elbow bulkhead fitting 90° - ø6S - w. counter nut
XWSV08S Elbow bulkhead fitting 90° - ø8S - w. counter nut
XWSV10S Elbow bulkhead fitting 90° - ø10S - w. counter nut
XWSV12S Elbow bulkhead fitting 90° - ø12S - w. counter nut
XWSV14S Elbow bulkhead fitting 90° - ø14S - w. counter nut
XWSV16S Elbow bulkhead fitting 90° - ø16S - w. counter nut
XWSV20S Bulkhead elbow ø20S - with lock nut
XWSV25S Bulkhead elbow ø25S - with lock nut
XWSV30S Bulkhead elbow ø30S - with lock nut
XWSV38S Bulkhead elbow ø38S - with lock nut
Angle
90
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
L7 max
16 mm
Material
Steel
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120
