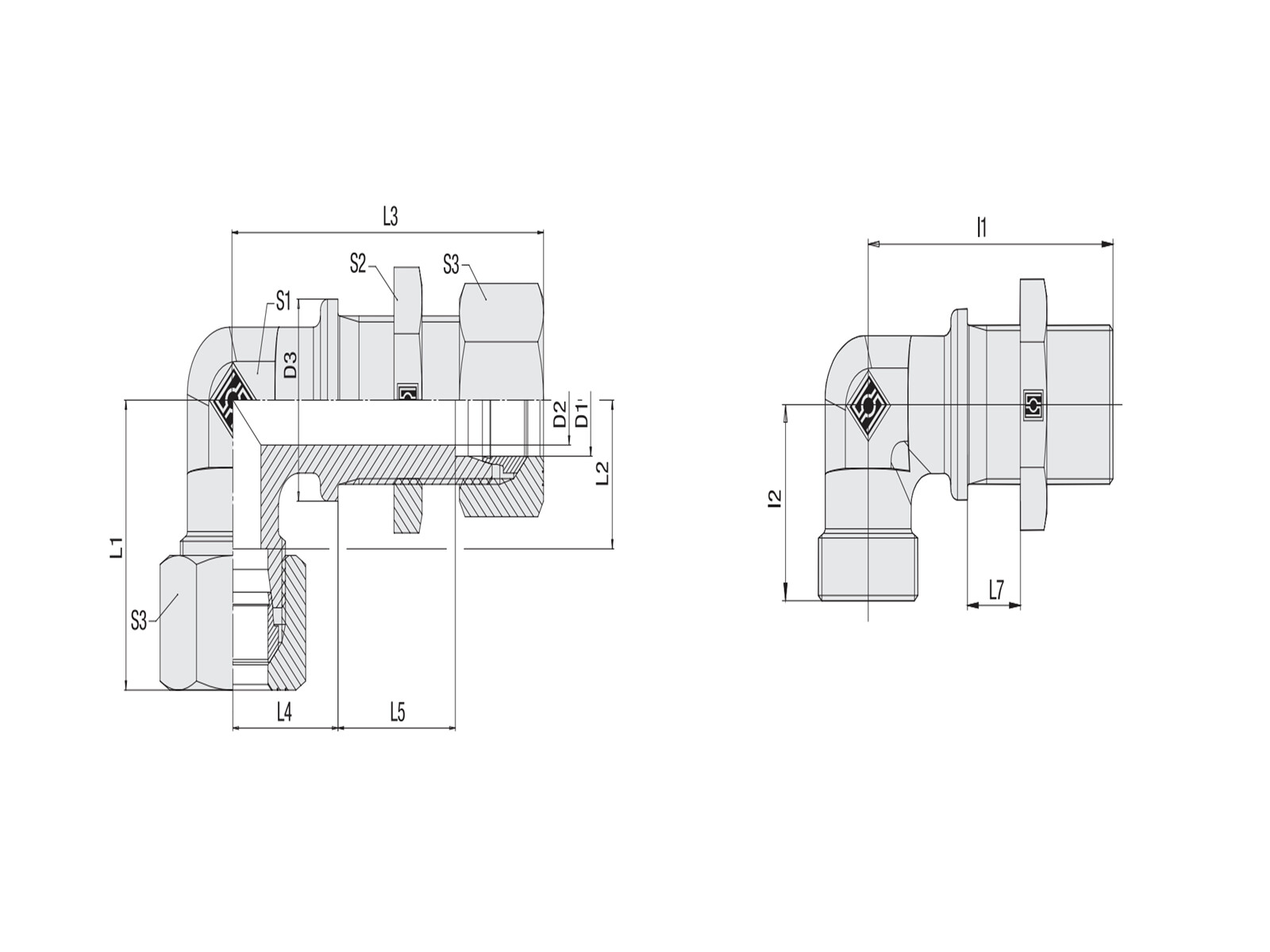

Bulkhead elbow ø38S - with lock nut
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
XWSV38S
Package size:
4 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
38 mm
Dimension D1
38 mm
Dimension D2
32 mm
Dimension L
60 mm
Dimension L1
72 mm
Dimension L2
41 mm
Dimension L3
112 mm
Dimension L4
43 mm
Dimension L7 max
16 mm
Dimension L7 min
4 mm
Dimension S1
50 mm
Dimension S2
65 mm
Dimension S3
60 mm
Dimension i1
96 mm
Dimension i2
57 mm
Material
Steel
Model code
FI-WS-38S-W3-SKM
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer metric
M52x2
Package size
4 st
Barcode
317968
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73079910
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
