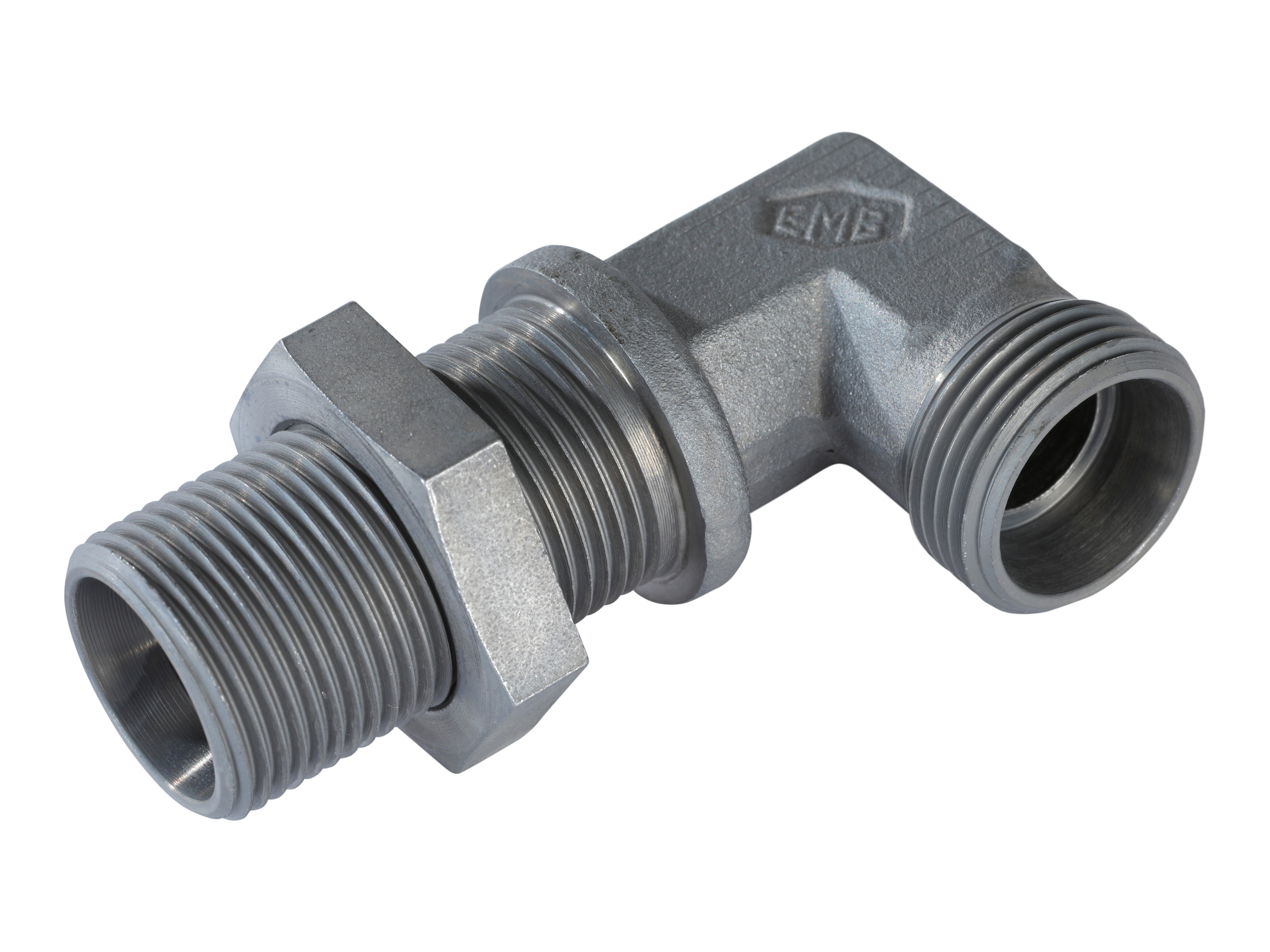

Elbow bulkhead fitting 90° - ø14S - w. counter nut
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
XWSV14S
Package size:
1 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
14 mm
Dimension D1
14 mm
Dimension D2
10 mm
Dimension L
27 mm
Dimension L1
40 mm
Dimension L2
22 mm
Dimension L3
73 mm
Dimension L4
23 mm
Dimension L7 max
16 mm
Dimension L7 min
3 mm
Dimension S1
19 mm
Dimension S2
30 mm
Dimension S3
27 mm
Dimension i1
63 mm
Dimension i2
30 mm
Material
Steel
Model code
FI-WS-14S-W3-SKM
Pressure max.
630 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread 1 metric
M22x1,5
Thread outer metric
M22x1,5
Package size
1 st
Barcode
337980
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
DEU
Intrastat code
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
