Rectangular oil level indicators - standard bolts

SELECT VARIANT
Partnumber Description Pressure max. Mounting holes spacing

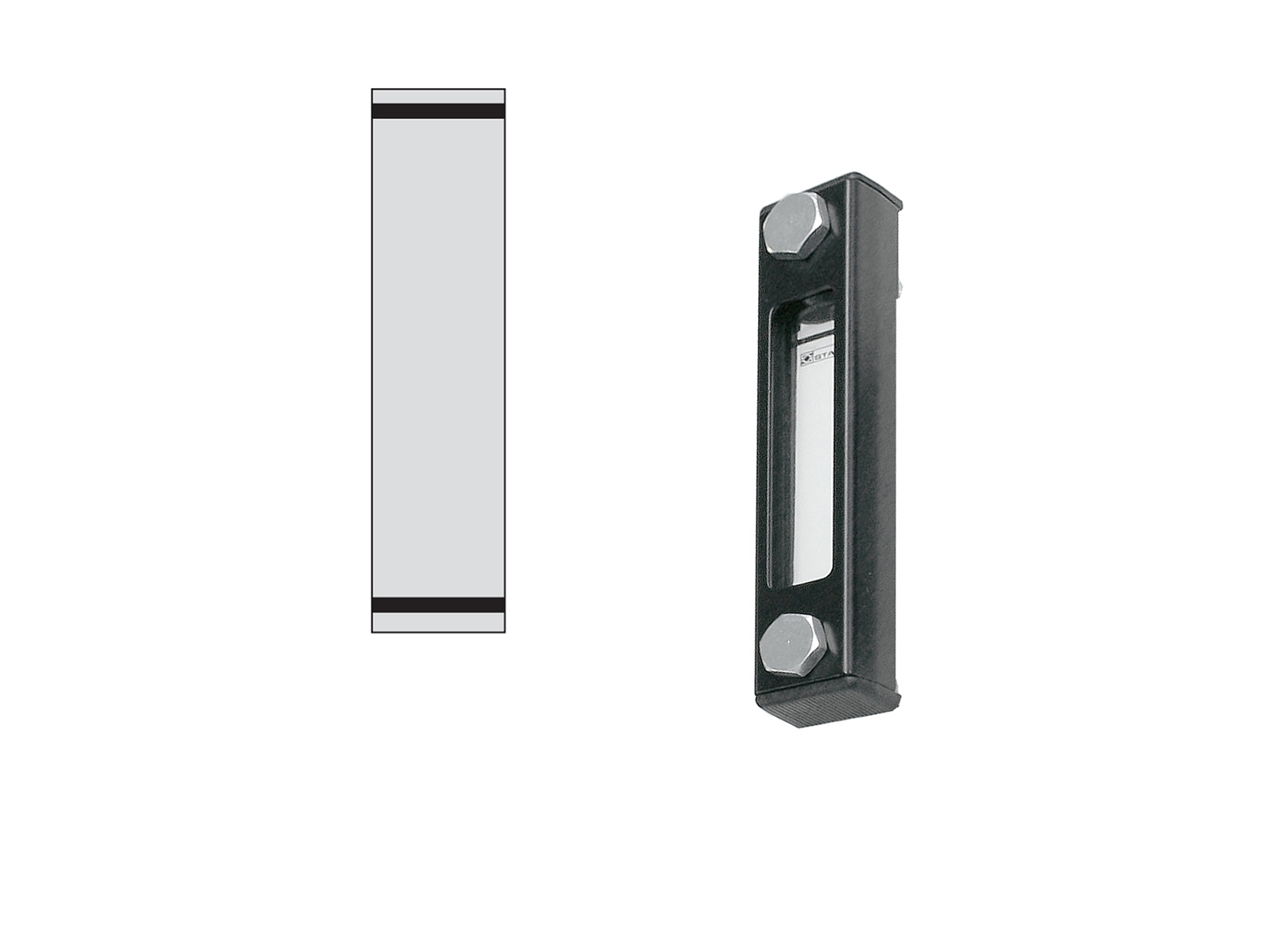

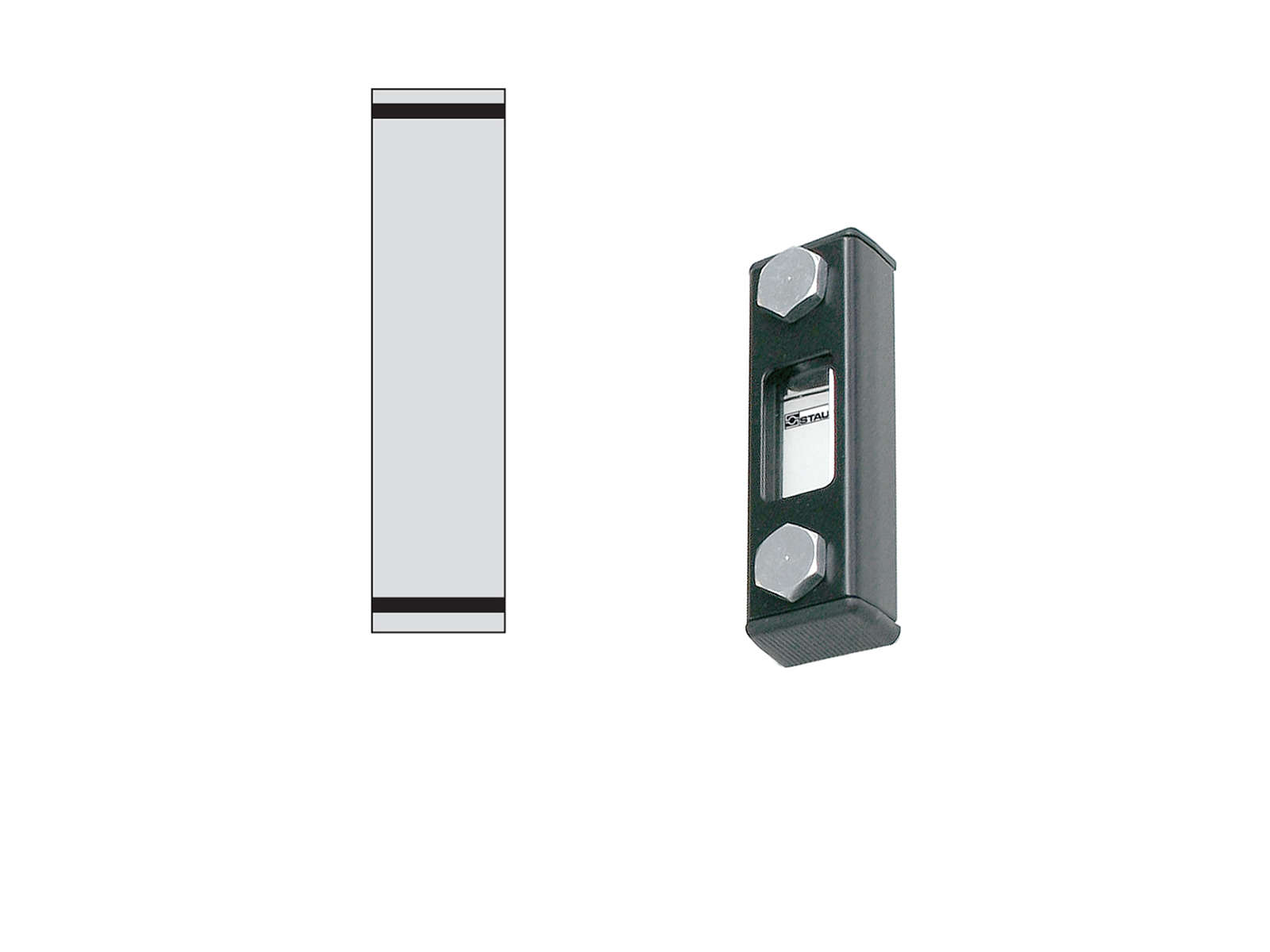

SNA-076-B-N-O-10 Nivåglas, 76 CC, M10 2 bar 76 mm
SNA-076-B-N-O-12 Nivåglas, 76 CC, M12 2 bar 76 mm

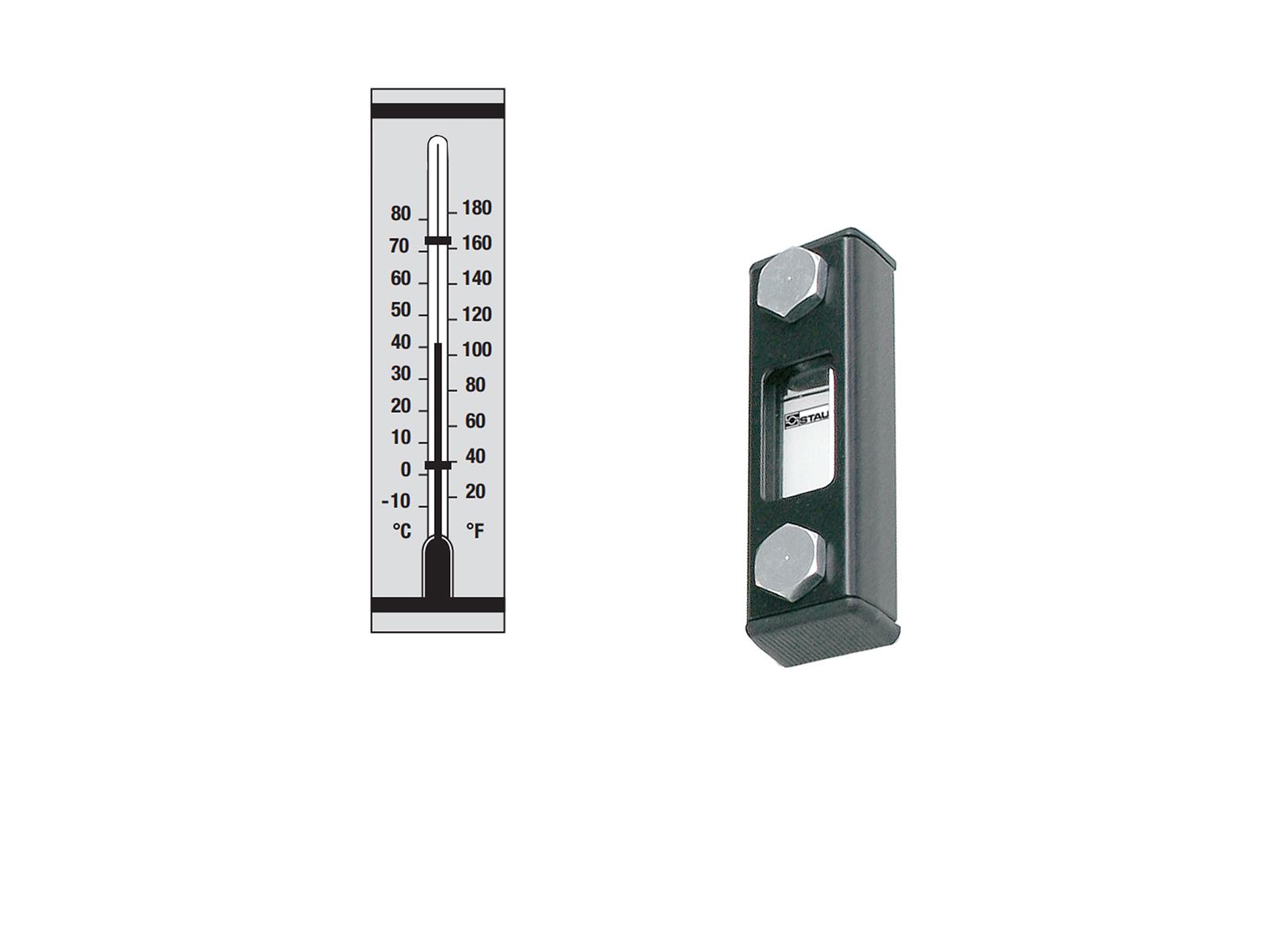

SNA-076-B-N-T-10 Nivåglas med termometer, 76 CC, M10 2 bar 76 mm
SNA-076-B-N-T-12 Nivåglas med termometer, 76 CC, M12 2 bar 76 mm
SNA-127-B-N-O-10 SNA 127 B-N-O-10 (FL-211) **** 2 bar 127 mm
SNA-127-B-N-O-12 SNA 127 B-N-O-12 (FL-213)***** 2 bar 127 mm

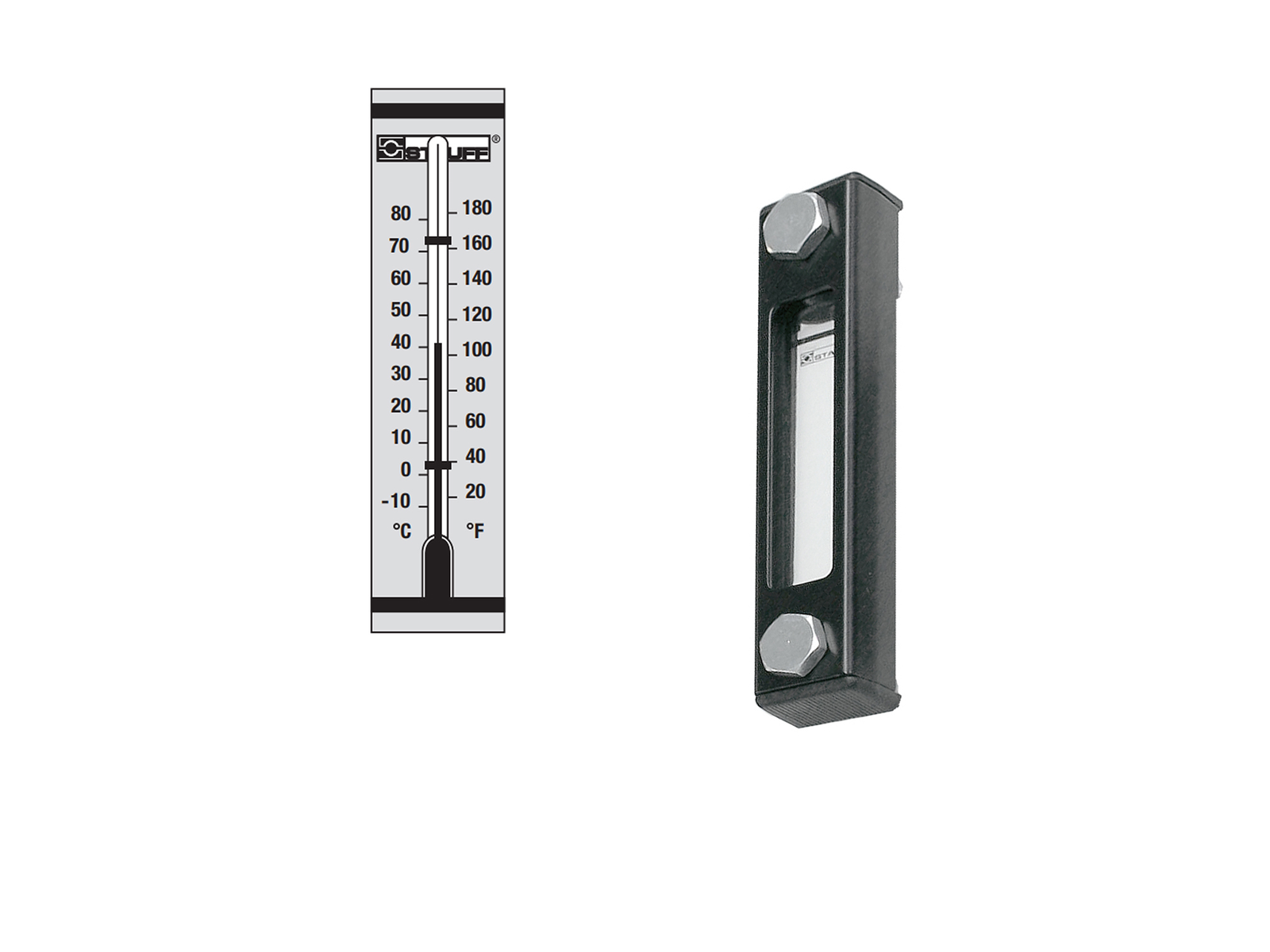

SNA-127-B-N-T-10 SNA 127 B-N-T-10 (FLT-221)**** 2 bar 127 mm
SNA-127-B-N-T-12 SNA 127 B-N-T-12 (FLT-223)**** 2 bar 127 mm
SNA-127-V-N-O-12 Level Glass w. level indicator Without thermometer

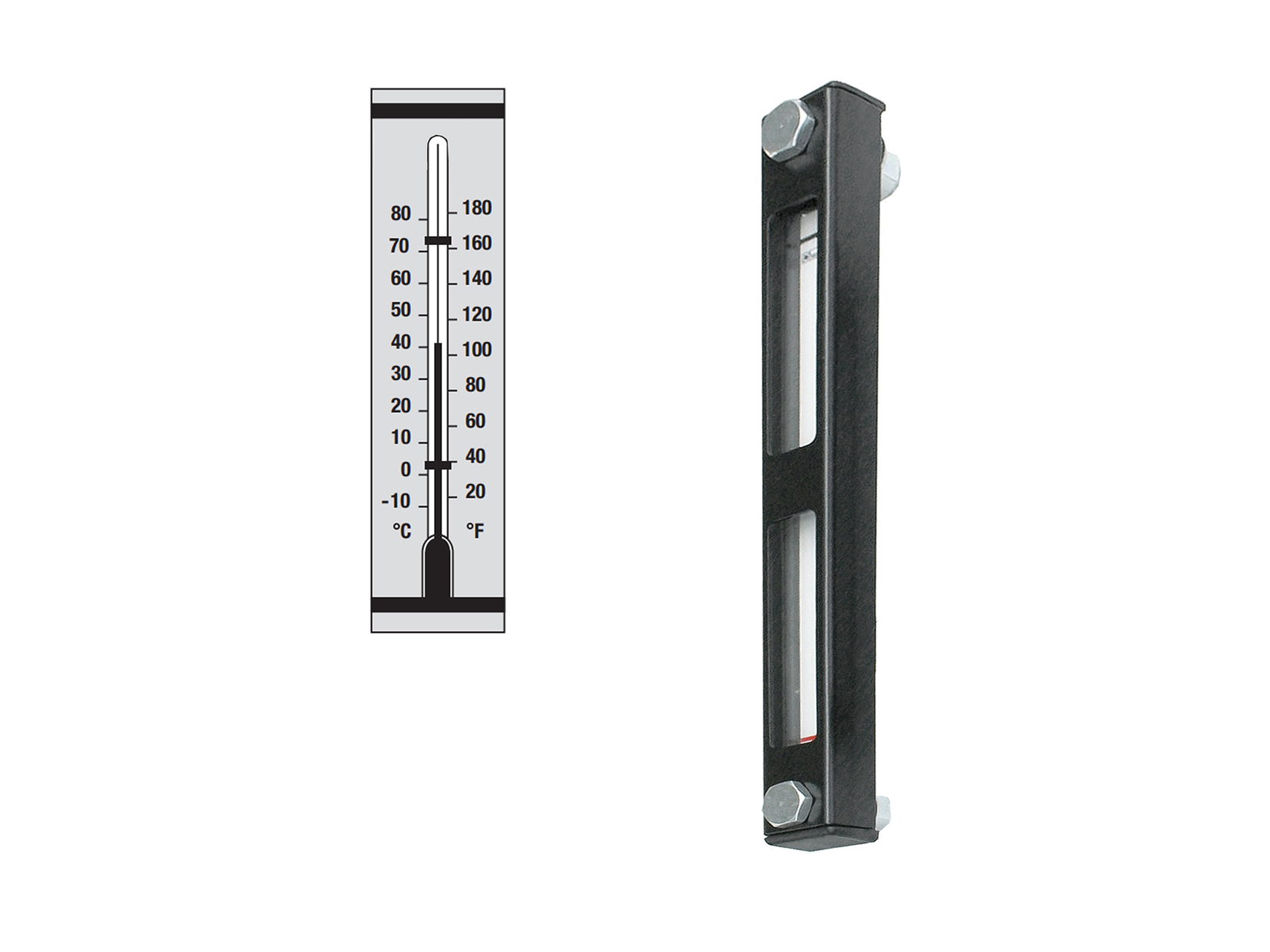

SNA-176-B-N-T-12 Nivåglas med termometer, 176 CC, M12 2 bar 176 mm
SNA-176-B-S-O-10 Nivåglas, 176 CC, M10 2 bar 176 mm
SNA-176-B-S-T-10 Nivåglas med termomter, 176 CC, M10

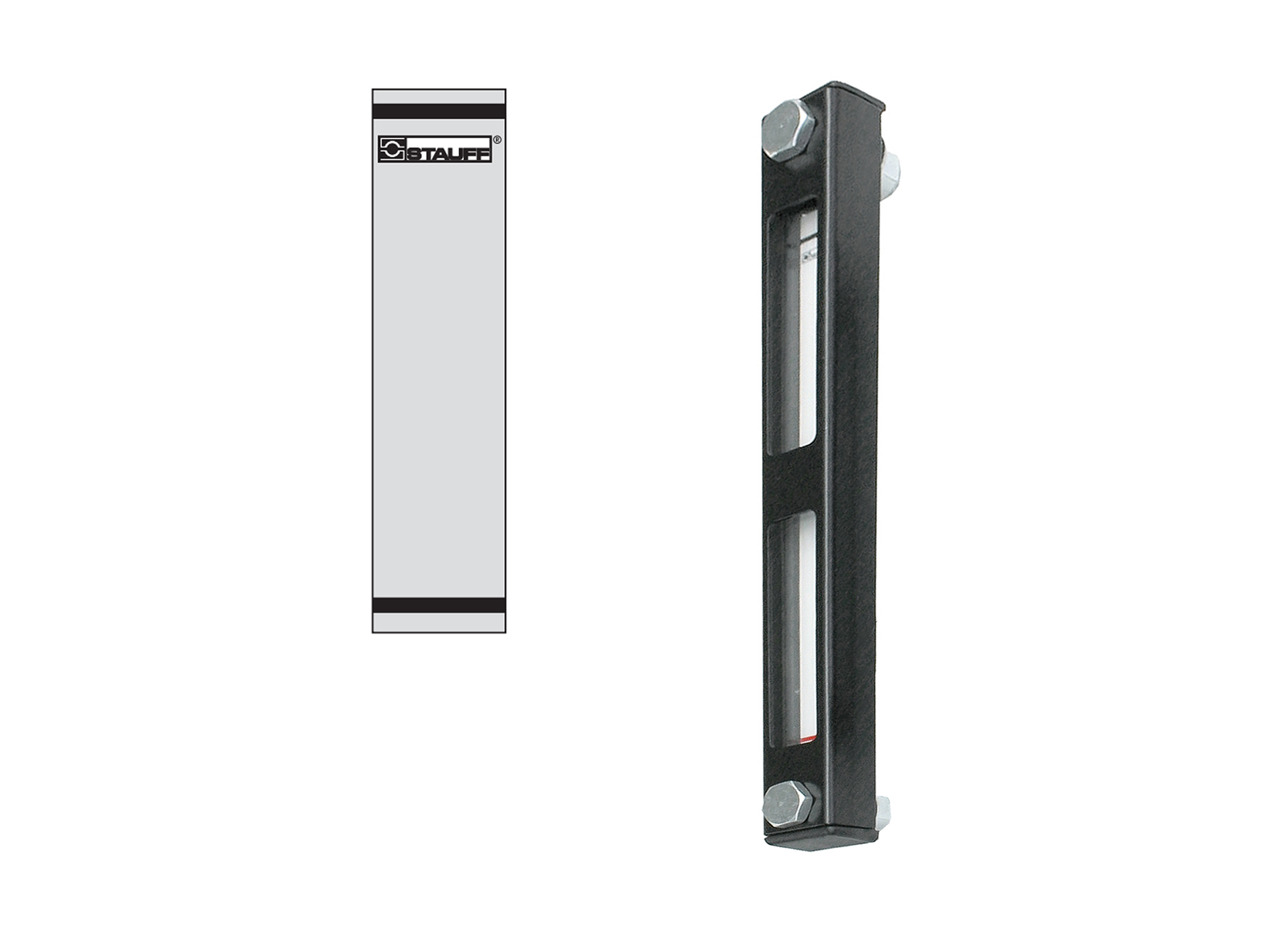

SNA-254-B-N-O-10 SNA 254 B-N-O-10 (FL-311)***** 2 bar 254 mm
SNA-254-B-N-O-12 SNA 254 B-N-O-12 (FL-313)***** 2 bar 254 mm

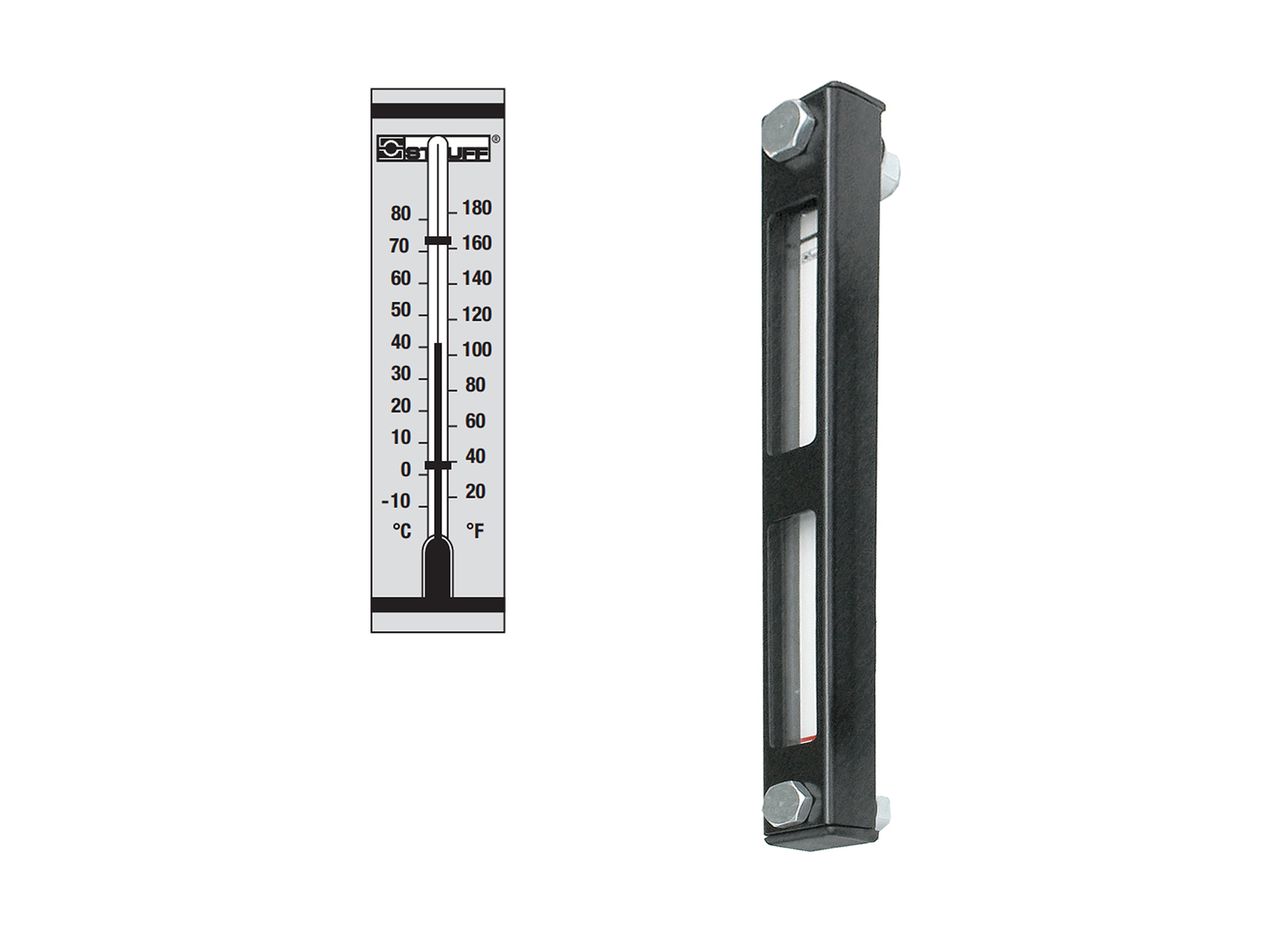

SNA-254-B-N-T-10 SNA254-B-N-T-10 (UC-FLT-321) 2 bar 254 mm
SNA-254-B-N-T-12 Level Glass with thermometer- -10+80.M12 2 bar 254 mm
SNA-305-B-N-T-12 Level Gauge 305CC. M12. Termometer
SNA-305-B-S-O-12 Nivåglas, 305 CC, M12
SNA-381-B-S-O-12 Level glas 381 c/c M12 2 bar 381 mm
SNK-254-V-C-O-12 Level Glass with level indicat Without thermometer l2=254 MM 2 bar 254 mm
Brand Name
Stauff

Pressure max.
2

Temperature max.
+80

Temperature min.
-30

Torque tightening
8
