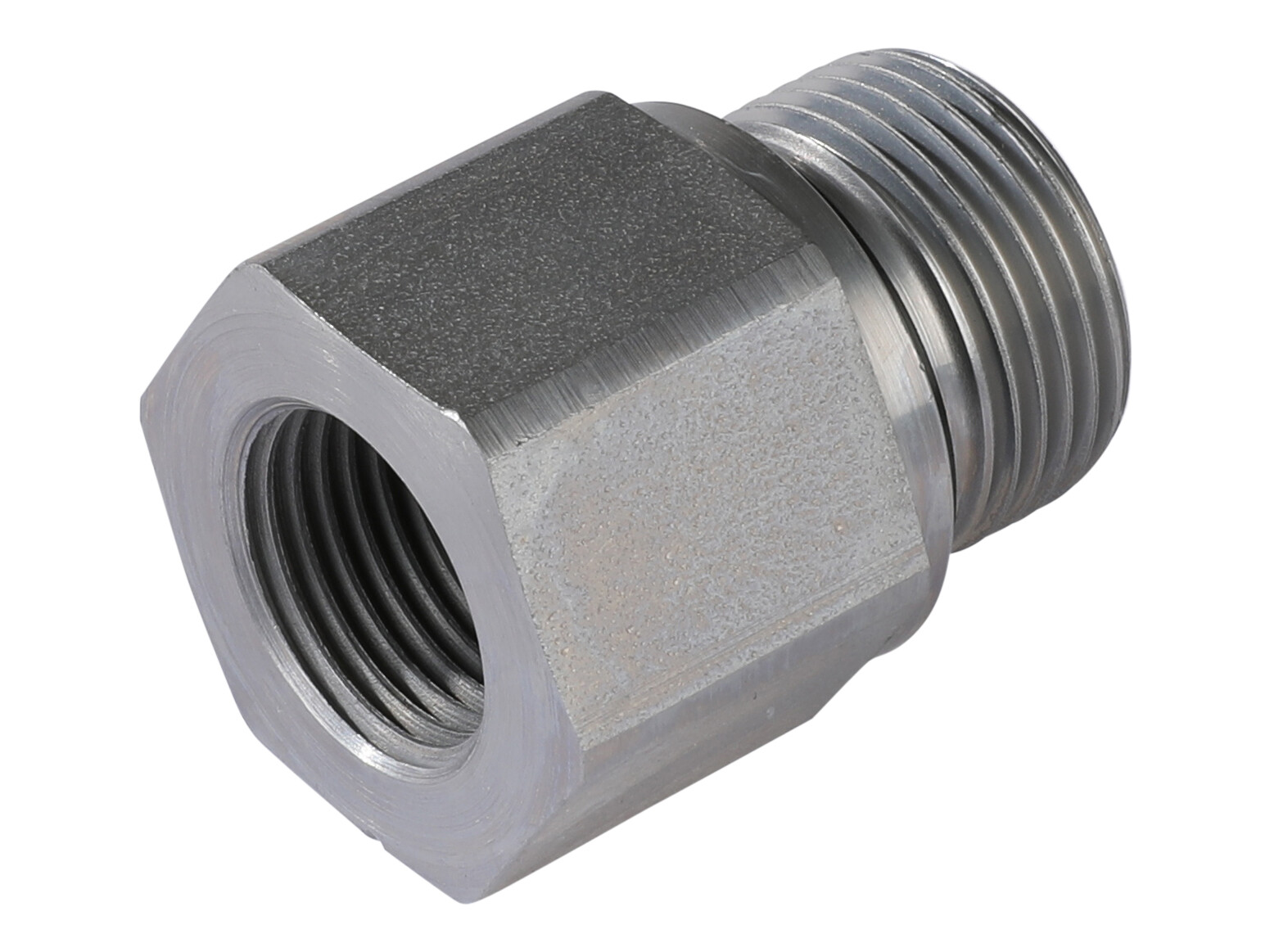

Reduction - 3/4"BSP x 1/2"BSP female - WD seal
Thread reducer for adapting between two BSPP (Whitworth parallel) thread sizes in hydraulic and fluid power pipework. The male G 3/4 side screws into a matching female port, while the female G 1/2 side accepts a matching male fitting or component.
Sealing is via a profile sealing ring in NBR, providing a defined seal at the interface. Key selection points are the BSPP thread sizes, the maximum working pressure of 400 bar, and the installation dimensions such as 32 mm hex and 43 mm overall length. The steel body has a zinc-nickel plated surface treatment and is specified for an operating temperature range from -35 °C to +100 °C.
Typical Applications
- Reducing BSPP port size between hydraulic components and fittings
- Hydraulic pipework and manifold connections where a profile-sealed threaded reducer is required
Partnumber:
RI-34-12ED
Package size:
50 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
D2
16 mm
Diameter pipe
16 mm
Hexagon
32 mm
L1
43 mm
L2
20 mm
Length
43 mm
Material
Steel
Model code
FI-RED-R3/4-WD-R1/2-B-W3
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
32 mm
Safety factor
4
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 3/4 BSP
Thread T2
G 1/2 BSP
Thread inner
G 1/2 BSP
Thread outer
G 3/4 BSP
Total length
43 mm
Type
Long
i
16 mm
Package size
50 pcs
Barcode
130513
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
DEU
Intrastat code
73071110
Thread reducer for adapting between two BSPP (Whitworth parallel) thread sizes in hydraulic and fluid power pipework. The male G 3/4 side screws into a matching female port, while the female G 1/2 side accepts a matching male fitting or component.
Sealing is via a profile sealing ring in NBR, providing a defined seal at the interface. Key selection points are the BSPP thread sizes, the maximum working pressure of 400 bar, and the installation dimensions such as 32 mm hex and 43 mm overall length. The steel body has a zinc-nickel plated surface treatment and is specified for an operating temperature range from -35 °C to +100 °C.
Typical Applications
- Reducing BSPP port size between hydraulic components and fittings
- Hydraulic pipework and manifold connections where a profile-sealed threaded reducer is required
