Pump S45 FR-L-090C-RP-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

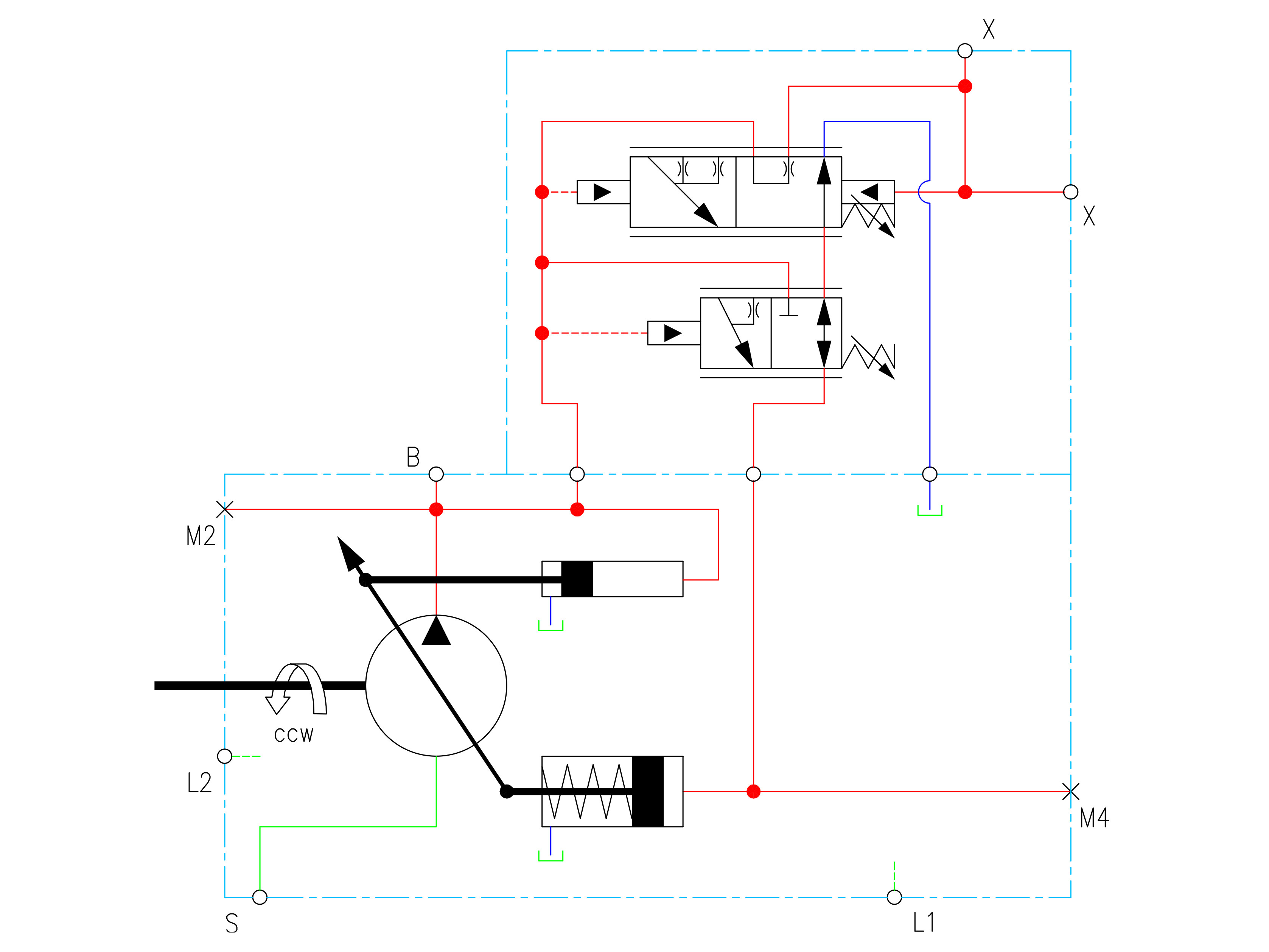

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
83002971
Package size:
1 st
Min. order quantity is:
1 st
Antal monteringshål
4
Axel diameter
31,2 mm
Axel kod
S1
Axel spline
14T 12/24 SAE-C
Axeltyp
Spline
Axeltätning materiale
FKM/FPM (Viton®)
Bultcirkel
161.9 mm
Deplacement
90 cm3
Ekstra montering/endedæksel typ
C2
Fläns SAE/DIN
3000 PSI
Fläns bak
SAE-C 14T
Fläns ingång
2 "
Fläns utgång
1 "
Föroreningsgrad max.
22/18/13 - ISO 4406
Förträngningsbegränsar
None
Kont. rotation max.
2200 rpm
Kontrolltyp
RP
Modell
Frame F
Modell kod
FR-L-090C-RP-25-20-NN-N-3-S1C2-A1N-NNN-NNN-NNN
Monteringsfläns
SAE-C4
Märke namn
Danfoss
Oljeviskositet rekommanderad
9 - 110 cSt
Portplacering
Side
Reces
127,0 mm
Rotation max. vid max. tryck
2200 rpm
Rotationshastighet max.
2600 rpm
Rotationshastighet min.
500 rpm
Rotationsriktning
Left (CCW)
Sensor typ
None
Temperatur intermittent max.
+104 °C
Temperatur max.
+82 °C
Temperatur min.
-40 °C
Tryck kontinuerlig max.
260 bar
Tryck max.
350 bar
Utv. Splinesantal
14
Package size
1 st
Barcode
334121
Gross weight
39,00 Kg
Net weight
39,00 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
