1/2" Insert - 1/2" BSP female - 90° - AISI316
90° hydraulic hose insert designed to connect a 1/2 in hose to a G 1/2 BSP female swivel thread. The elbow layout supports routing the hose in tight spaces while keeping a threaded connection at the port.

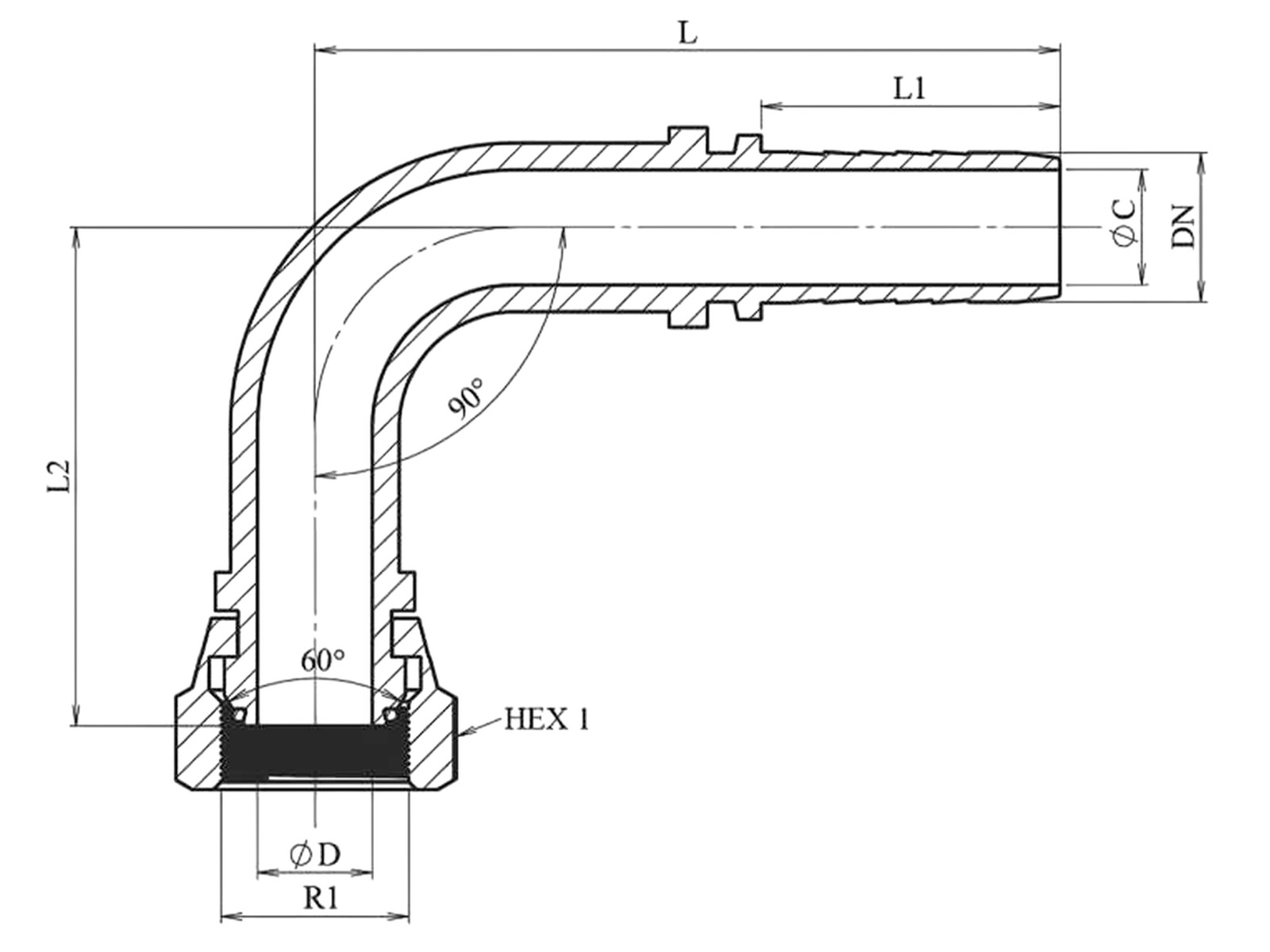

The BSP female swivel end uses a 60° cone with an O-ring sealing face, with FKM/FPM seal material specified. Stainless steel in AISI 316 quality is specified for the fitting body. Key selection points include the 1/2 in hose size, the G 1/2 BSP female thread, and the 90° angle, along with the installation envelope dimensions L 73 mm, L1 30,5 mm, L2 42 mm and hex size 27 mm.
Typical Applications
- Hydraulic hose assemblies where a 90° connection is required at a BSP threaded port
- Pipe-to-hose transitions using a BSP female swivel interface
Partnumber:
4095-08-08-SY
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
Hydraspecma
HEX 1
27 mm
Hose coupling type
For separate ferrule
Hose size
1/2 "
L
73 mm
L1
30,5 mm
L2
42 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
841170808
R1
G 1/2 BSP
Sealing material
FKM/FPM (Viton®)
Temperature max.
+100 °C
Temperature min.
-30 °C
Torque tightening
50 Nm
ØC
9,5 mm
ØD
9,5 mm
Package size
1 pcs
Barcode
462260
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
ESP
Intrastat code
73269098
90° hydraulic hose insert designed to connect a 1/2 in hose to a G 1/2 BSP female swivel thread. The elbow layout supports routing the hose in tight spaces while keeping a threaded connection at the port.
The BSP female swivel end uses a 60° cone with an O-ring sealing face, with FKM/FPM seal material specified. Stainless steel in AISI 316 quality is specified for the fitting body. Key selection points include the 1/2 in hose size, the G 1/2 BSP female thread, and the 90° angle, along with the installation envelope dimensions L 73 mm, L1 30,5 mm, L2 42 mm and hex size 27 mm.
Typical Applications
- Hydraulic hose assemblies where a 90° connection is required at a BSP threaded port
- Pipe-to-hose transitions using a BSP female swivel interface
