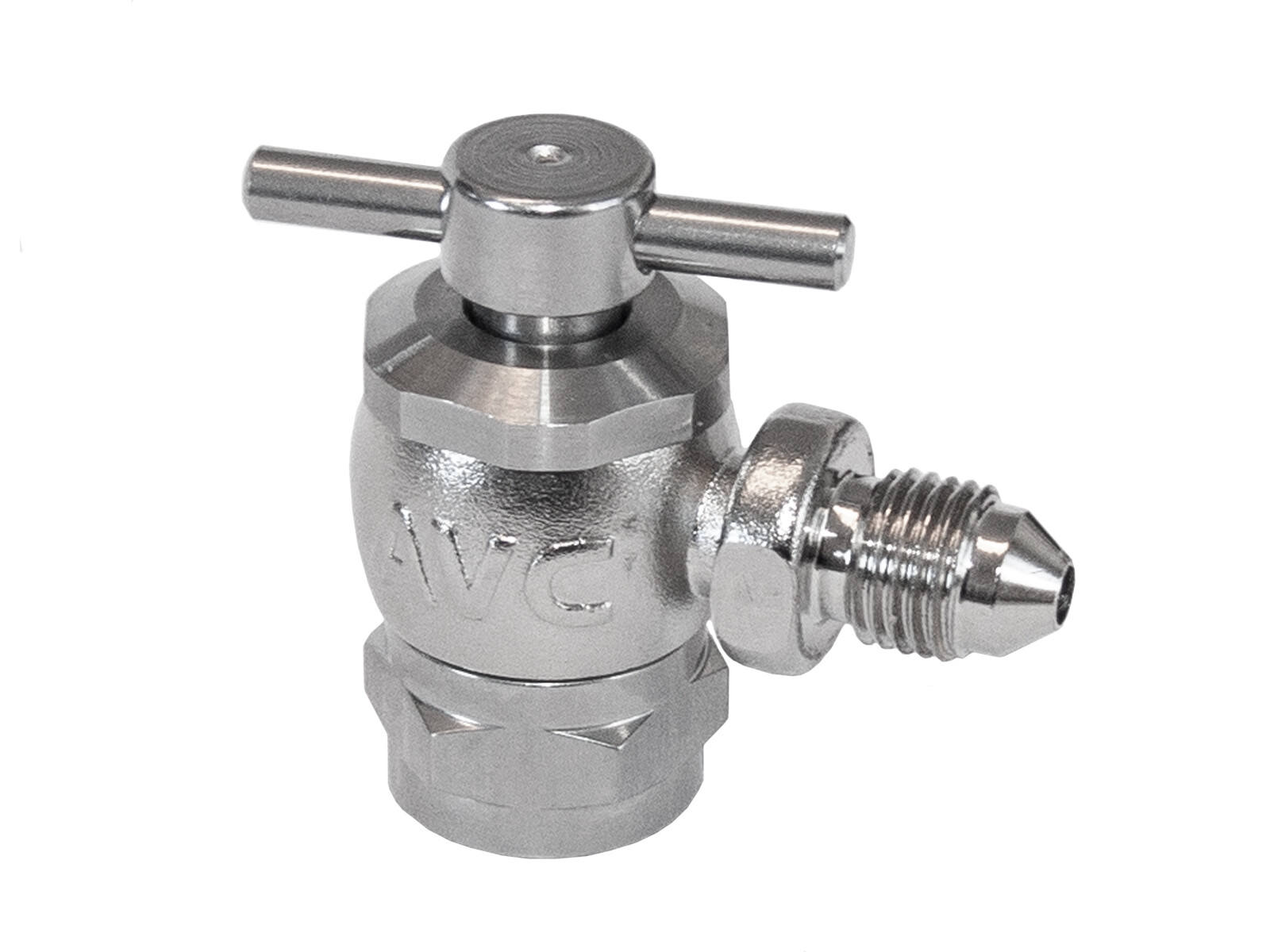

Vinkelkoppling för CGH-3000 & 24140, 3/8-24UNF
Robust elbow coupling designed for high-pressure applications up to 5,000 PSI. Fits .305-32 valve threads with 3/8"-24 connection to 3/16" flare pipe fittings and meets MS-33656E3 specification. The air connection is positioned at a 90° angle to the valve axis for easy access in tight spaces.
Advantages
- All stainless steel components for high corrosion resistance (except brass body and sealing washer)
- Core activation pin for reliable valve opening
- Copper seal washer for secure and tight connection
- Extra strong construction with double stem seals
- 90° air connection for flexible mounting
- Suitable for demanding hydraulic, pneumatic and accumulator applications
Artikelnummer:
20439
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Gänga
3/8-24 UNF
Märke namn
Hydraspecma
Standard
MS-33656E3
Tryck max.
344 bar
Pakke str.
1 pcs
Stregkode
181247
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
swe
Robust elbow coupling designed for high-pressure applications up to 5,000 PSI. Fits .305-32 valve threads with 3/8"-24 connection to 3/16" flare pipe fittings and meets MS-33656E3 specification. The air connection is positioned at a 90° angle to the valve axis for easy access in tight spaces.
Advantages
- All stainless steel components for high corrosion resistance (except brass body and sealing washer)
- Core activation pin for reliable valve opening
- Copper seal washer for secure and tight connection
- Extra strong construction with double stem seals
- 90° air connection for flexible mounting
- Suitable for demanding hydraulic, pneumatic and accumulator applications
