Adapter för akumulator

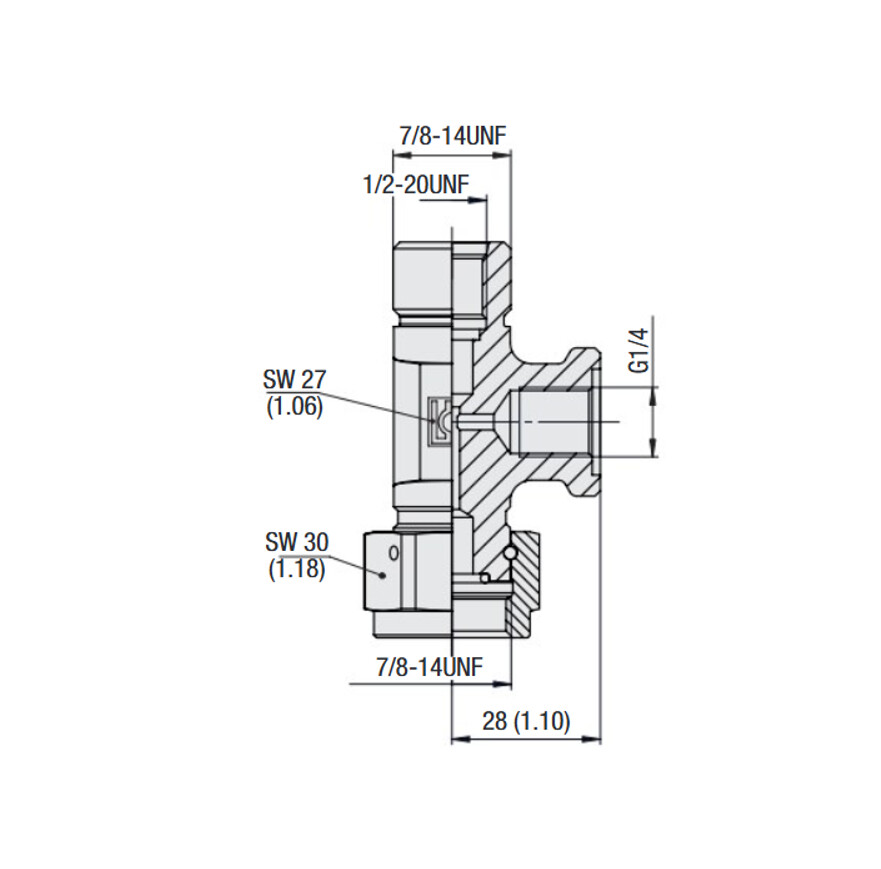

The STAUFF SBAA-FV adapter is designed for fixed valve bladder accumulators and makes it possible to quickly and safely connect a PT-RF pressure sensor for nitrogen filling pressure measurement - without emptying the accumulator. The adapter ensures a tight and reliable connection to the nitrogen valve so the measurement can be performed without loss of gas and without disrupting system operation.
Features:
- For fixed valve bladder accumulators (FV type)
- Enables pressure measurement with optional PT-RF sensor)
- Quick mounting directly on nitrogen valve (1/2-20 UNF)
- No pressure loss during connection
- Robust steel construction with zinc/nickel coating
- Maintenance-free
Partnumber:
SBAA-FV-U05-B04-W3
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Stauff
Connection Thread BSP
1/4" BSP
Material
Steel
Pressure max.
400 bar
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
Thread
G 1/4 BSP
Thread
1/2-20 UNF
Package size
1 st
Barcode
421341
Gross weight
Kg
Net weight
Kg
Country of origin
deu
The STAUFF SBAA-FV adapter is designed for fixed valve bladder accumulators and makes it possible to quickly and safely connect a PT-RF pressure sensor for nitrogen filling pressure measurement - without emptying the accumulator. The adapter ensures a tight and reliable connection to the nitrogen valve so the measurement can be performed without loss of gas and without disrupting system operation.
Features:
- For fixed valve bladder accumulators (FV type)
- Enables pressure measurement with optional PT-RF sensor)
- Quick mounting directly on nitrogen valve (1/2-20 UNF)
- No pressure loss during connection
- Robust steel construction with zinc/nickel coating
- Maintenance-free
