Adapter för akumulator

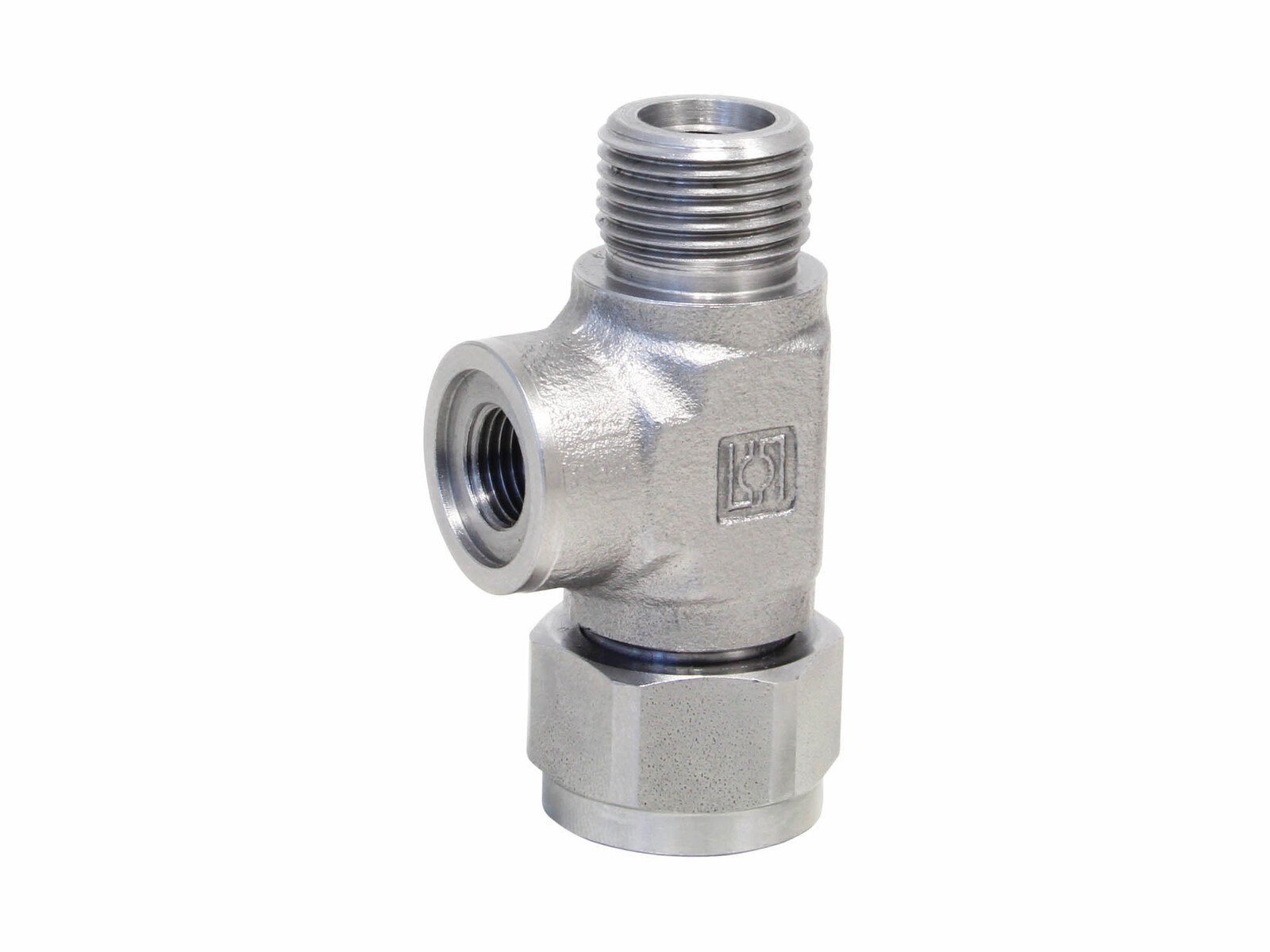

The STAUFF SBAA-CV adapter is designed for bladder accumulators with replaceable valve and enables quick and safe connection of a PT-RF pressure sensor for measuring nitrogen filling pressure - without emptying the accumulator. The adapter ensures a tight, reliable connection to the nitrogen valve and eliminates pressure loss during connection.
Features
- For bladder accumulators with replaceable valve (CV type)
- Enables pressure measurement with PT-RF sensor (optional)
- Quick installation directly on nitrogen valve
- No gas loss during connection
- Can be retrofitted in minutes
- Robust steel construction with zinc/nickel coating
Artikelnummer:
SBAA-CV-U05-B04-W3
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st

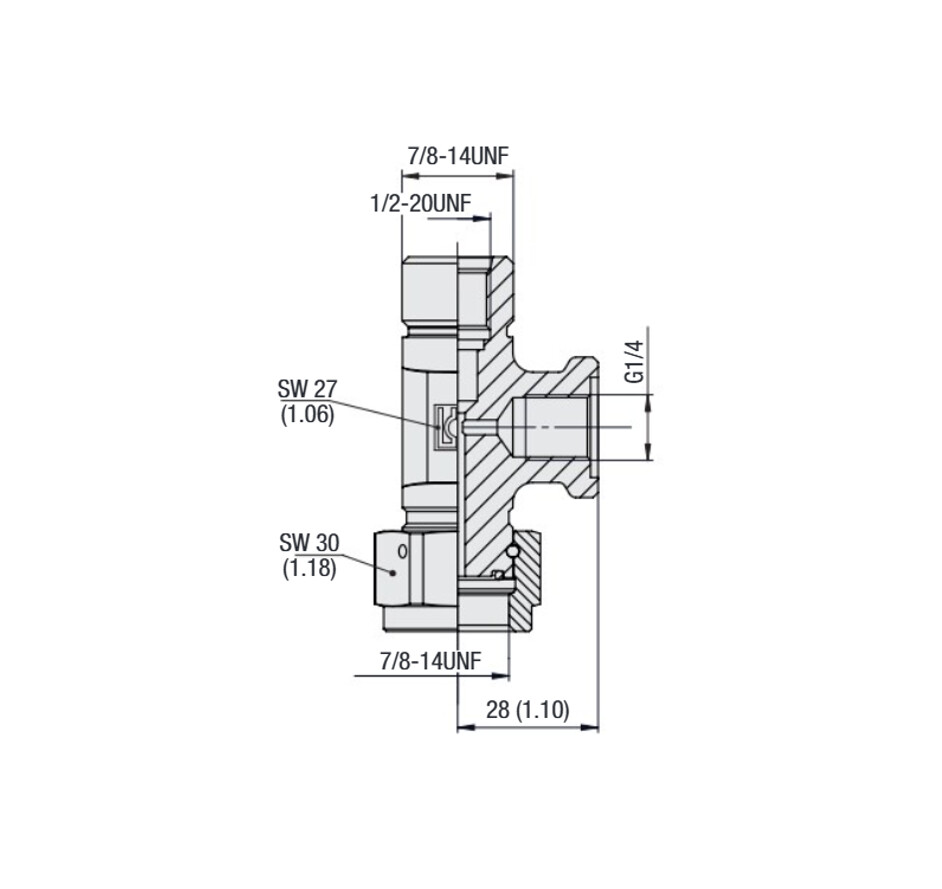

Anslutningsgänga BSP
1/4" BSP
Gänga
G 1/4 BSP
Gänga
1/2-20 UNF
Märke namn
Stauff
Packningsmaterial
NBR
Tillverkningsmaterial
Steel
Tryck max.
400 bar
Ytskiktbehandling
Zinc-Nickel plated
Förpackningsstorlek
1 st
Streckkod
421338
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
deu
The STAUFF SBAA-CV adapter is designed for bladder accumulators with replaceable valve and enables quick and safe connection of a PT-RF pressure sensor for measuring nitrogen filling pressure - without emptying the accumulator. The adapter ensures a tight, reliable connection to the nitrogen valve and eliminates pressure loss during connection.
Features
- For bladder accumulators with replaceable valve (CV type)
- Enables pressure measurement with PT-RF sensor (optional)
- Quick installation directly on nitrogen valve
- No gas loss during connection
- Can be retrofitted in minutes
- Robust steel construction with zinc/nickel coating
