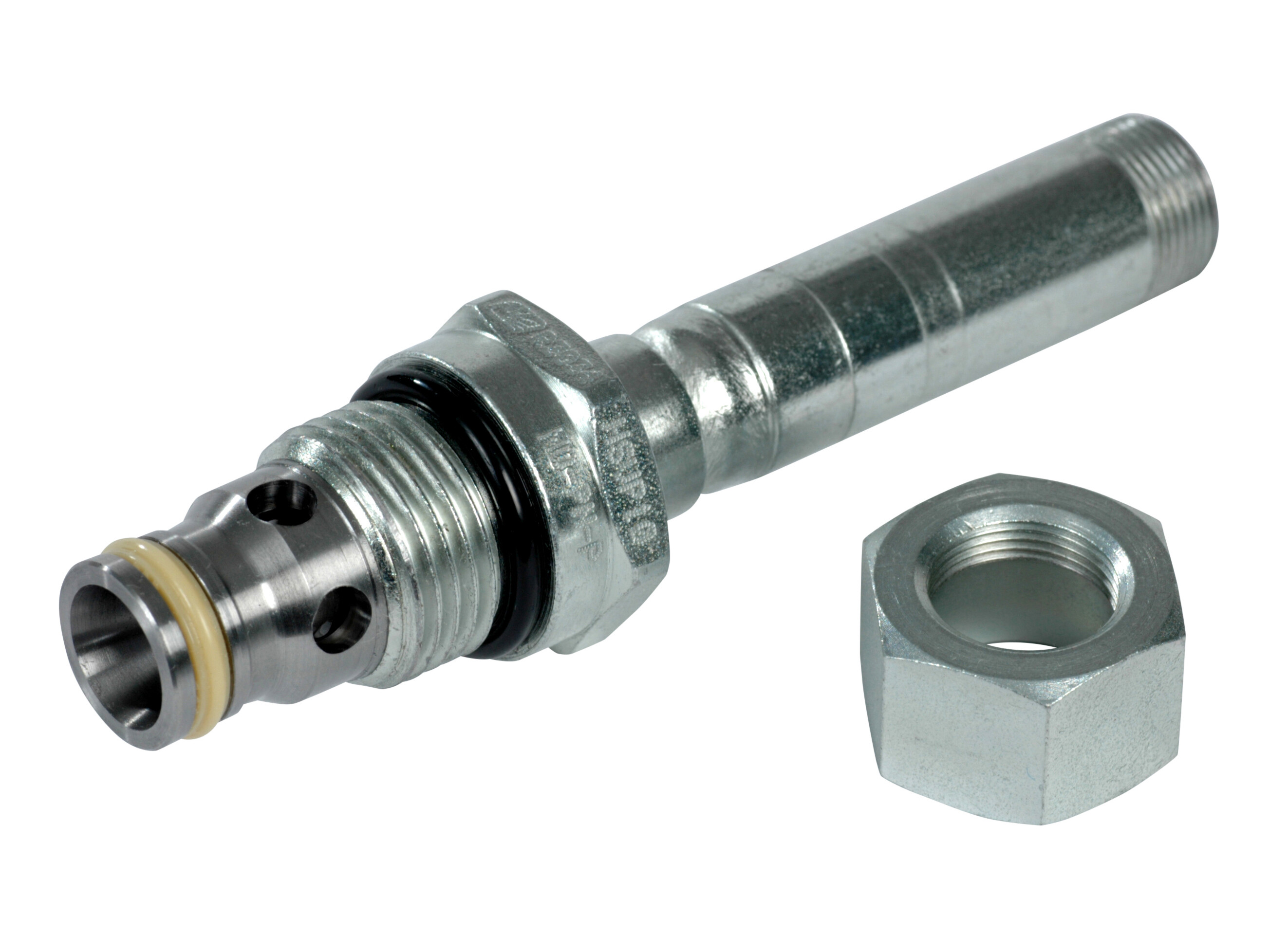

Solenoid Valve 65l/m NO HSVP10-NO-00-00-PN-P-00

This is a normally open, pilot-operated, poppet-type 10-size solenoid valve. When de-energized, the HSVP10-NO severely restricts flow from port 1 to port 2, while allowing flow from port 2 to 1. When energized, the valve’s poppet is shifted to block flow from port 2 to port 1 and allow reverse flow between port 1 to port 2 at a high pressure drop. This valve comes standard with a push pin type manual override. Applications: This valve is designed for use for uni-directional blocking, load holding, clamping or gripping applications in hydraulic circuits where low internal leakage is required.

Artikelnummer:
11133304

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Activation
Solenoid

Brand Name
Danfoss

Cavity
SDC10-2

Contamination level max.
20/18/14 - ISO 4406

Filter built-in
No

Flow rate nominal LMin
60 lpm

Manual operated
No

Model code
HSVP10-NO-00-00-PN-P-00

Number of ways/positions
2/2

Oil viscocity recommended
12 - 54 cSt

Pressure max.
350 bar

Sealing material
Polyurethane

Solenoidtype
H16

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
70 Nm

Valve type
NO - Normally open
Pakke str.
1 st

Stregkode
374760

Brutto vægt
0,18 Kg

Netto vægt
0,18 Kg

Oprindelsesland
ITA

Intrastat varekode
85051990

This is a normally open, pilot-operated, poppet-type 10-size solenoid valve. When de-energized, the HSVP10-NO severely restricts flow from port 1 to port 2, while allowing flow from port 2 to 1. When energized, the valve’s poppet is shifted to block flow from port 2 to port 1 and allow reverse flow between port 1 to port 2 at a high pressure drop. This valve comes standard with a push pin type manual override. Applications: This valve is designed for use for uni-directional blocking, load holding, clamping or gripping applications in hydraulic circuits where low internal leakage is required.
