XL2 395 No output Shaft 4-hole 106.4
Danfoss XL2 Series – High-Torque Orbital Motors with Disc Valve Design
The Danfoss XL2 series belongs to the Xcel™ family of low-speed, high-torque orbital motors and is designed for medium-duty mobile and industrial applications requiring reliable torque output and long service life.
Built on a disc-valve system with a three-zone design, the XL2 delivers smooth operation, high efficiency, and stable performance under varying loads. Precision-engineered bearings and optimized porting ensure consistent torque and extended durability in a compact design.
Each motor in the XL2 range features a SAE A 2-bolt mounting flange, G-thread ports, and a robust steel housing engineered to meet demanding system requirements.
Key Advantages
- High efficiency and torque stability at low speeds
- Three-zone disc-valve design for extended life and true bi-directionality
- Hydrodynamic bearings ensure smooth, reliable operation
- Compact and durable construction for medium-duty applications
- Optional cross-over relief or counterbalance valves for flexible system design
- Displacement range: 80 – 490 cm³/rev
- Continuous pressure: up to 205 bar Intermittent pressure: up to 310 bar
- Continuous torque: up to 845 Nm Intermittent torque: up to 930 Nm
- Speed capability: up to 900 rpm (depending on model)
Typical Applications
- Augers and screw conveyors
- Sweepers and snow blowers
- Conveyors and material-handling systems
- Agricultural and municipal equipment
- Compact drives and auxiliary hydraulic mechanisms
Technical Highlights
- Displacement range: 80 – 490 cm³/rev
- Flow capacity: up to 75 l/min continuous / 115 l/min intermittent
- Torque range: up to 845 Nm continuous / 930 Nm intermittent
- Operating temperature: –34 °C to +82 °C
- Recommended oil: Premium anti-wear hydraulic oil, viscosity ≥ 13 cSt at operating temperature
- Filtration: ISO 4406 class 20/18/13
- Ports: G ½ (pressure) / G ¼ (drain)
- Mounting flange: SAE A 2-bolt (Ø 82.5 mm pilot / Ø 106.4 mm bolt circle)
- Shaft options: Ø 32 mm cylindrical (code 16) or Ø 31.75 mm 14-tooth spline (code 99)
- Shaft seal: Standard pressure type (high-pressure optional)
- Maximum inlet pressure: 310 bar [4500 psi]
Note
Motors can run continuously at listed ratings; intermittent operation should not exceed 10 % of each minute.
For maximum service life, pre-run the motor at approximately 30 % of rated pressure for one hour before full-load operation.
Connecting a case drain line is recommended when operating at high pressures or temperatures to maintain low case pressure and extend seal life.
Varenummer:
631AG00060A
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Danfoss
Contamination level max.
20/18/13 - ISO 4406
Continuous Flow Max.
75
Continuous rotation max.
191 rpm

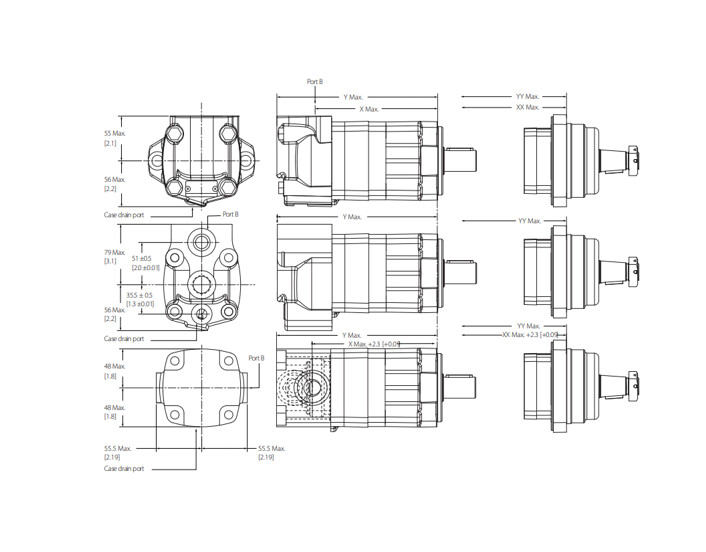

Dimension X
191 mm
Dimension XX
151.5 mm
Dimension Y
238.6 mm
Dimension YY
198.4 mm
Displacement
395 cm3
Drain line requirements
Recommended (Required under high case pressure)
Drainport
G 1/4 BSP
Filtration Requirement
ISO cleanliness code 4406:20/18/13
Flange style diameter
199 mm
Holes circle
125 mm
Inlet Pressure Max.
310
Integrated check valve
No
Intermittent Flow Maks.
115
Intermittent Rotation speed Max.
287
Intermittent Torque Max.
925 Nm
Length
238.6 mm
Max. operating temperature
82 °C
Model code
XL2
Mounting flange
Bearingless 4-bolt flange (AZ)
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Paint
Black
Port Drawing Code
G3
Pressure continous max.
155 bar
Pressure intermittent max.
170 bar
Shaft Seal Type
None
Shaft torque rating
768 Nm
Shaft type
Spline
Temperature max.
+180 °C
Temperature min.
-30 °C
Torque continuous max.
775 Nm
Working ports
G 1/2 BSP
Pakke str.
0 pcs
Stregkode
5704334983125
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
CHN
Intrastat varekode
84122981
Danfoss XL2 Series – High-Torque Orbital Motors with Disc Valve Design
The Danfoss XL2 series belongs to the Xcel™ family of low-speed, high-torque orbital motors and is designed for medium-duty mobile and industrial applications requiring reliable torque output and long service life.
Built on a disc-valve system with a three-zone design, the XL2 delivers smooth operation, high efficiency, and stable performance under varying loads. Precision-engineered bearings and optimized porting ensure consistent torque and extended durability in a compact design.
Each motor in the XL2 range features a SAE A 2-bolt mounting flange, G-thread ports, and a robust steel housing engineered to meet demanding system requirements.
Key Advantages
- High efficiency and torque stability at low speeds
- Three-zone disc-valve design for extended life and true bi-directionality
- Hydrodynamic bearings ensure smooth, reliable operation
- Compact and durable construction for medium-duty applications
- Optional cross-over relief or counterbalance valves for flexible system design
- Displacement range: 80 – 490 cm³/rev
- Continuous pressure: up to 205 bar Intermittent pressure: up to 310 bar
- Continuous torque: up to 845 Nm Intermittent torque: up to 930 Nm
- Speed capability: up to 900 rpm (depending on model)
Typical Applications
- Augers and screw conveyors
- Sweepers and snow blowers
- Conveyors and material-handling systems
- Agricultural and municipal equipment
- Compact drives and auxiliary hydraulic mechanisms
Technical Highlights
- Displacement range: 80 – 490 cm³/rev
- Flow capacity: up to 75 l/min continuous / 115 l/min intermittent
- Torque range: up to 845 Nm continuous / 930 Nm intermittent
- Operating temperature: –34 °C to +82 °C
- Recommended oil: Premium anti-wear hydraulic oil, viscosity ≥ 13 cSt at operating temperature
- Filtration: ISO 4406 class 20/18/13
- Ports: G ½ (pressure) / G ¼ (drain)
- Mounting flange: SAE A 2-bolt (Ø 82.5 mm pilot / Ø 106.4 mm bolt circle)
- Shaft options: Ø 32 mm cylindrical (code 16) or Ø 31.75 mm 14-tooth spline (code 99)
- Shaft seal: Standard pressure type (high-pressure optional)
- Maximum inlet pressure: 310 bar [4500 psi]
Note
Motors can run continuously at listed ratings; intermittent operation should not exceed 10 % of each minute.
For maximum service life, pre-run the motor at approximately 30 % of rated pressure for one hour before full-load operation.
Connecting a case drain line is recommended when operating at high pressures or temperatures to maintain low case pressure and extend seal life.
