Threaded flange 3/4" SAE3000 x 3/4" BSP - stainless AISI316L
Threaded flange 3/4" SAE3000 x 3/4" BSP - stainless AISI316L
Varenummer:
AFX100G
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Bolt dimension
M10x35 mm
Brand Name
Havit
Diameter flange
38.1 mm

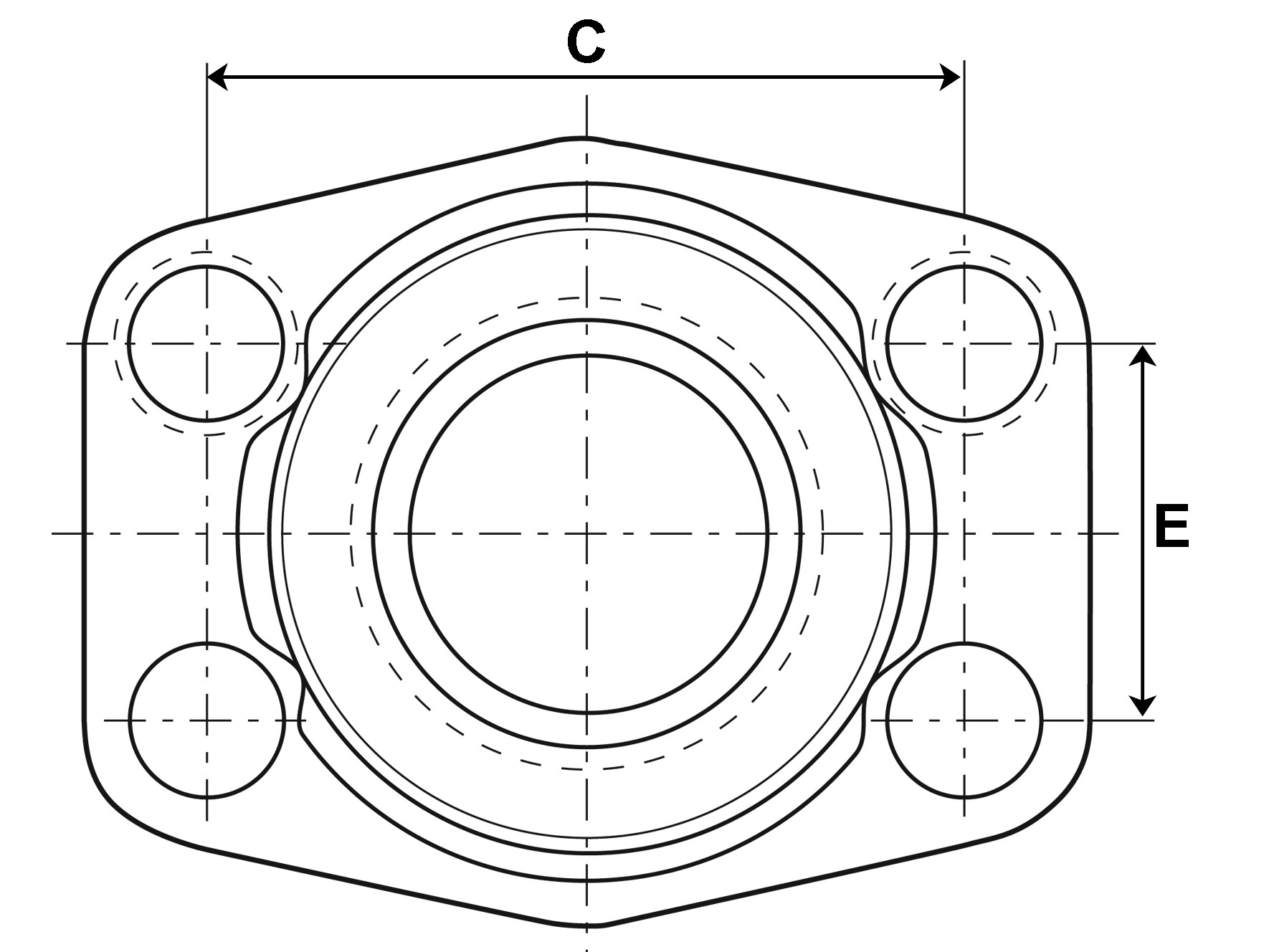

Dimension C
47.6 mm
Dimension E
22.3 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Material
Stainless steel
Material quality
1.4404 / AISI316L
O-ring
24.99X3.53 mm
Pressure max.
350 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 3/4 BSP
Pakke str.
0 pcs
Stregkode
5704334226192
Brutto vægt
0,37 Kg
Netto vægt
0,37 Kg
Oprindelsesland
DEU
Intrastat varekode
73079100
Threaded flange 3/4" SAE3000 x 3/4" BSP - stainless AISI316L
