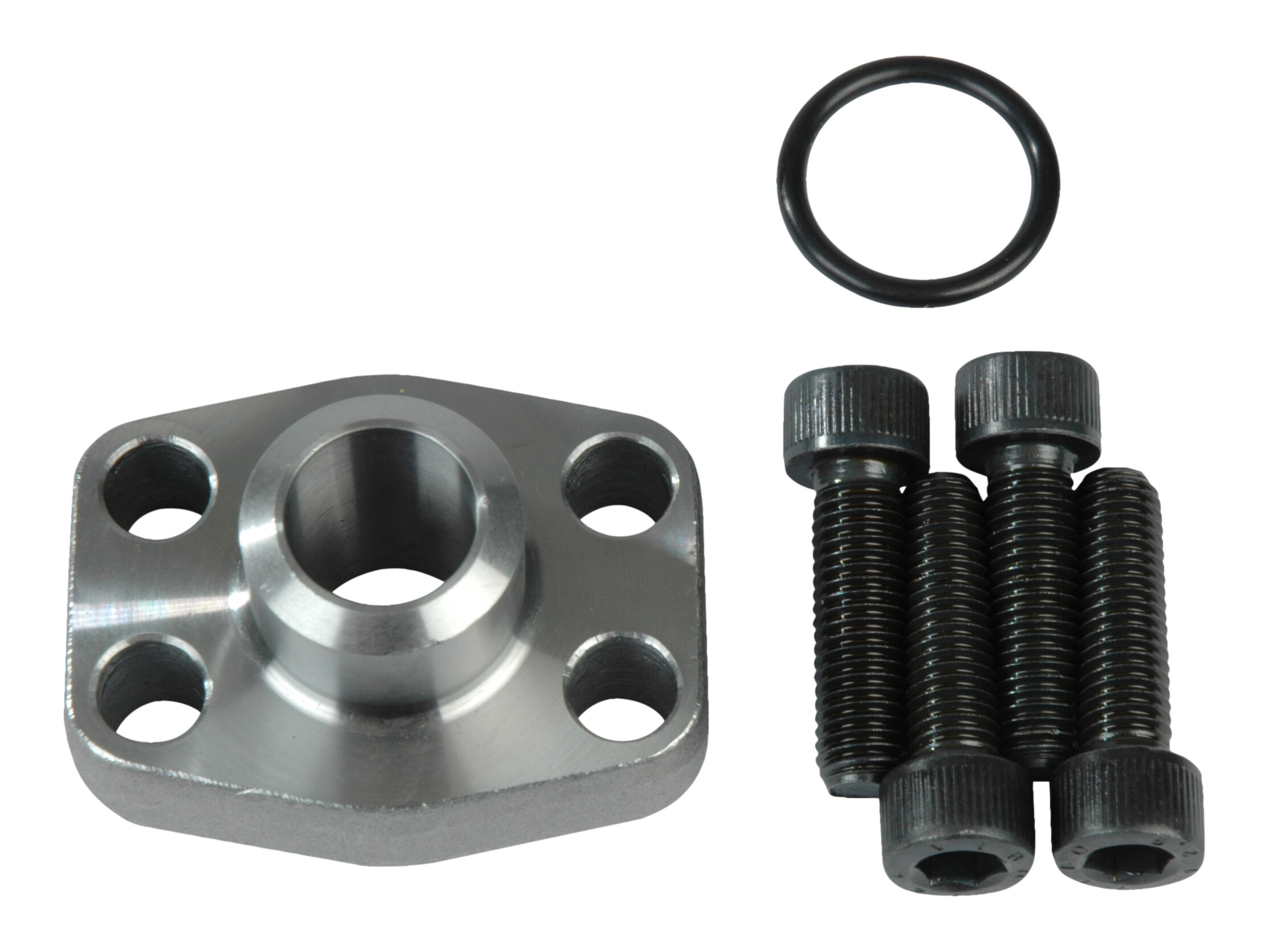

Butt weld flange 3/4" SAE3000 - complete
Butt weld flange 3/4" SAE3000 - complete
Partnumber:
AFS100ST-M
Package size:
0 pcs
Min. order quantity is:
1 pcs
Bolt dimension
M10x35 mm
Brand Name
Havit
Diameter flange
38.1 mm
Dimension C
47.6 mm
Dimension E
22.3 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
24.99X3.53 mm
Pressure max.
350 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Pakke str.
0 pcs
Stregkode
5704295877808
Brutto vægt
0,51 Kg
Netto vægt
0,51 Kg
Oprindelsesland
Intrastat varekode
73079100
