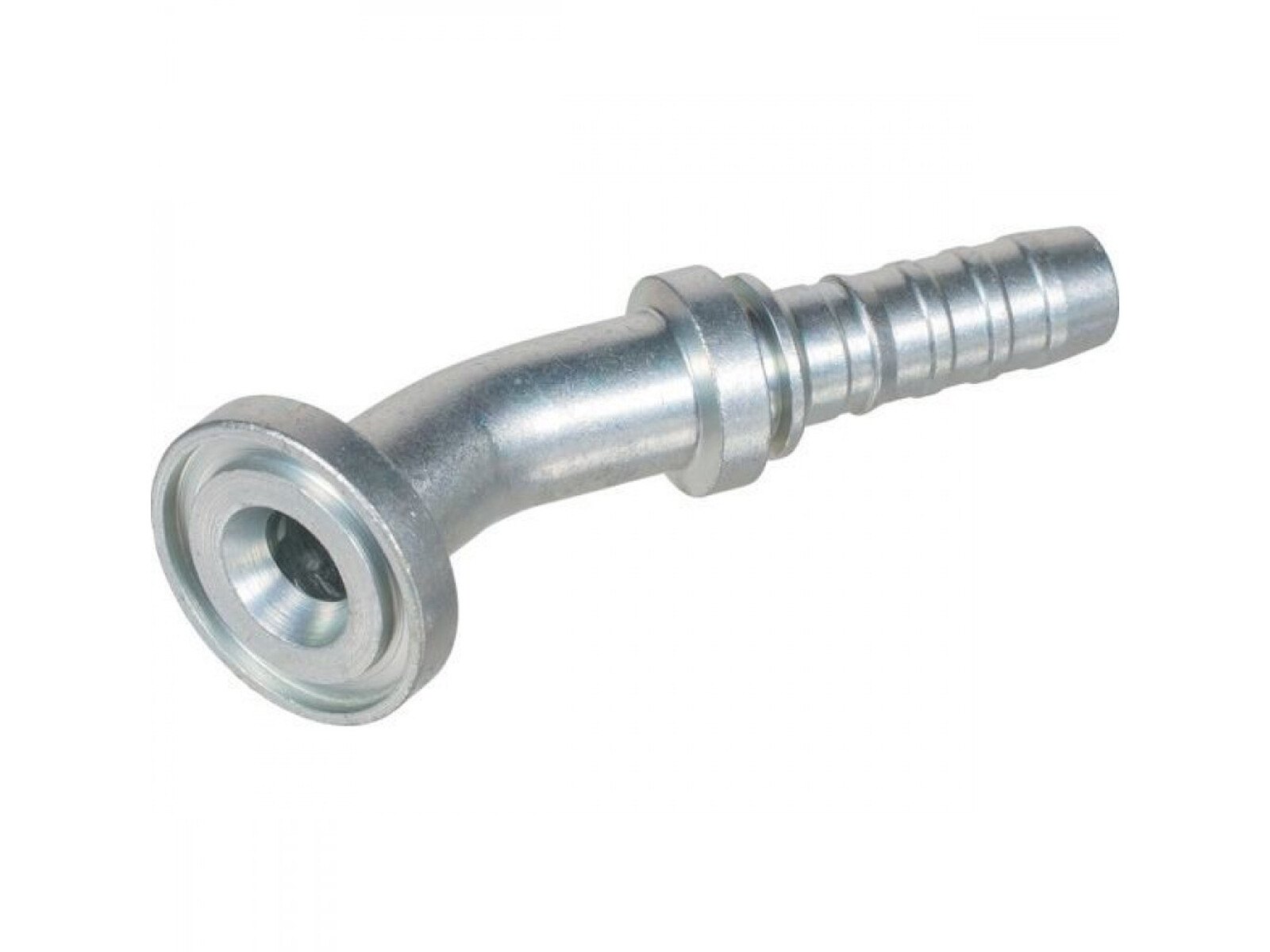

24GSP24FL30S - Presskoppling GSP, 30B

1.1/2" Indstik (Gates 4SP/4SH) - 1.1/2" SAE3000 flange - 30° - 24GSP-24FL30

Artikelnummer:

24GSP24FL30S

Förpackningsstorlek:

1 st

Minsta beställningskvantitet:

1 st

Specifications
Dimensions and shipping

Diameter fläns

60.3 mm

Dimension A

209 mm

Dimension B

135.2 mm

Dimension D

1.1/2 "

Dimension E

25 mm

Dimension K

60.3 mm

Fläns

1.1/2 "

Fläns SAE/DIN

3000 PSI

Modell kod

24GSP-24FL30S

Märke namn

Gates

O-ring

47,22X3,53 mm

REACH compliant

RoHs compliant

Rostbeständighet

500 hours salt spray ASTM B-117

Shore

Slangdimension

1.1/2 "

Slangkopplingstyp

Till lös hylsa

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Tillverkningsmaterial

Stål

Tryck max.

210 bar

Vinkel

30 °

Ytskiktbehandling

TuffCoat™

Åtdragning moment

130 - 143 Nm

Package size

1 st

Barcode

232845

Gross weight

1,13 Kg

Net weight

1,13 Kg

Country of origin

USA

Intrastat code

73269098

Product information
Measure sketch

1.1/2" Indstik (Gates 4SP/4SH) - 1.1/2" SAE3000 flange - 30° - 24GSP-24FL30
