Orbital motors White OML cylindrical shaft

OML 8 HYDRAULIC MOTOR

OML 12.5 HYDRAULIC MOTOR

OML 20 HYDRAULIC MOTOR

OML 32 HYDRAULIC MOTOR

SELECT VARIANT

Partnumber	Description	Shaft diameter	Shaft type	Displacement	Continuous rotation max.

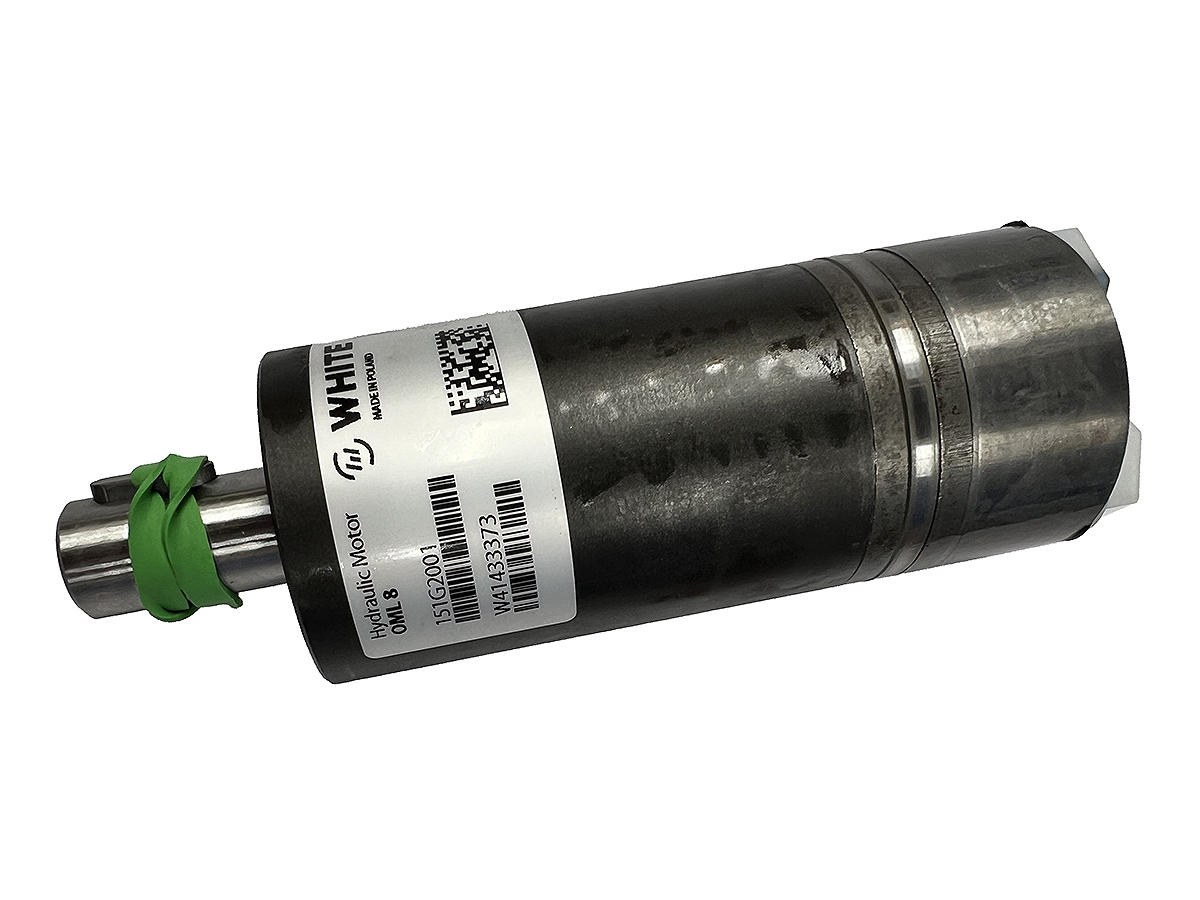

151G2001	OML 8 HYDRAULIC MOTOR	16 mm	Cylindrical	8 cm3	2000 rpm

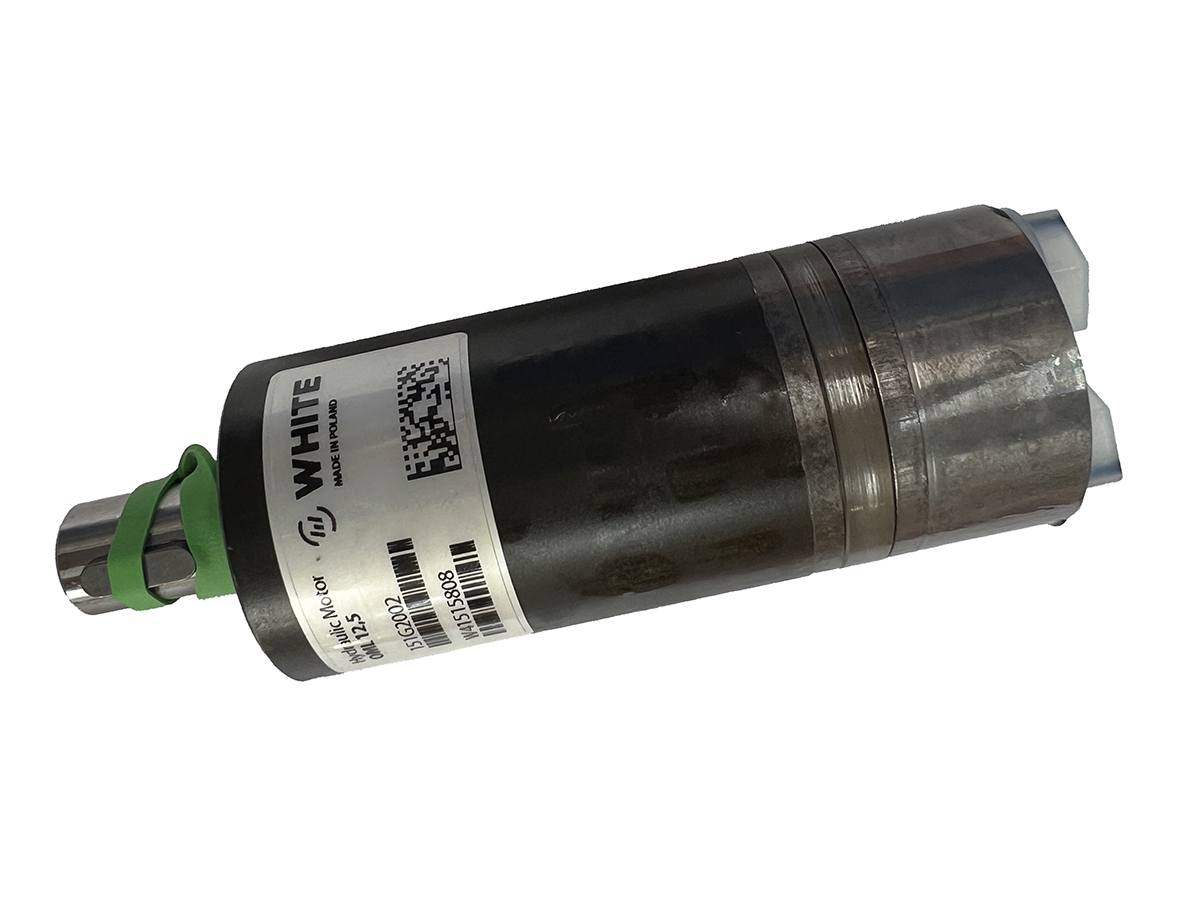

151G2002	OML 12.5 HYDRAULIC MOTOR	16 mm	Cylindrical	12.5 cm3	1280 rpm

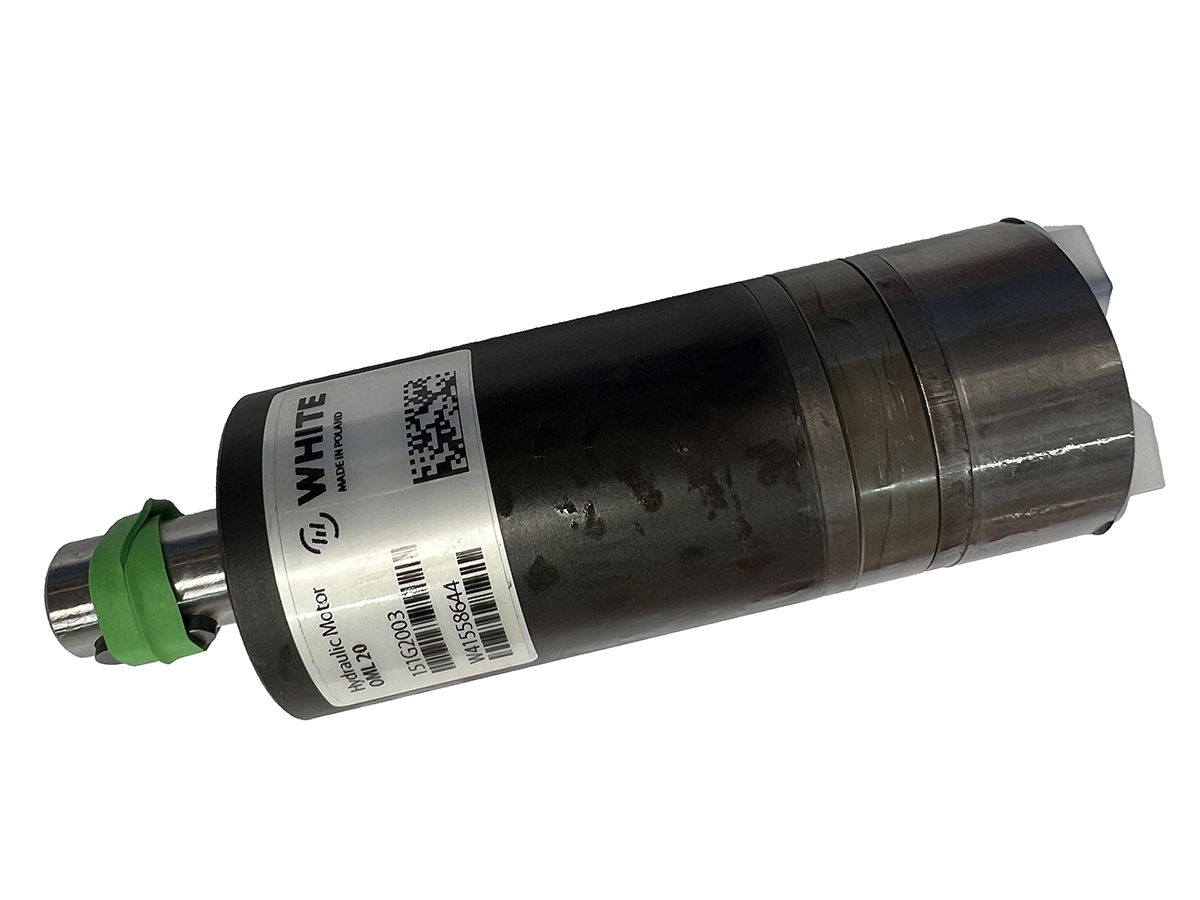

151G2003	OML 20 HYDRAULIC MOTOR	16 mm	Cylindrical	20 cm3	800 rpm

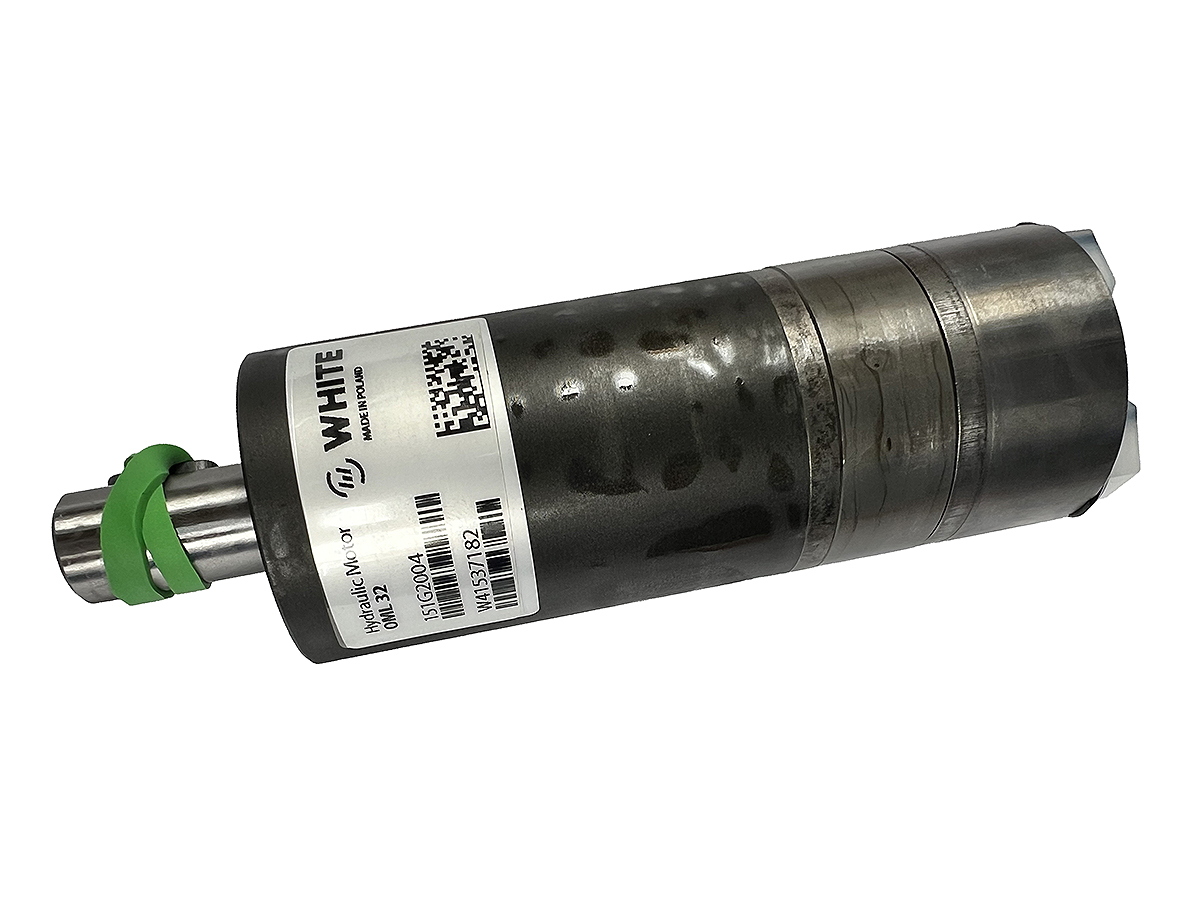

151G2004	OML 32 HYDRAULIC MOTOR	16 mm	Cylindrical	32 cm3	500 rpm

Brand Name

White

Continuous power max.

1.1

Holes circle

Mounting flange

OMM 45

Number of mounting holes

Oil viscocity recommended

20 - 75

Port position

Rear

Pressure drop continuous max.

Sealing material

NBR

Shaft diameter

Shaft keyway

5,0

Shaft type

Cylindrical

Working ports

G 1/4
