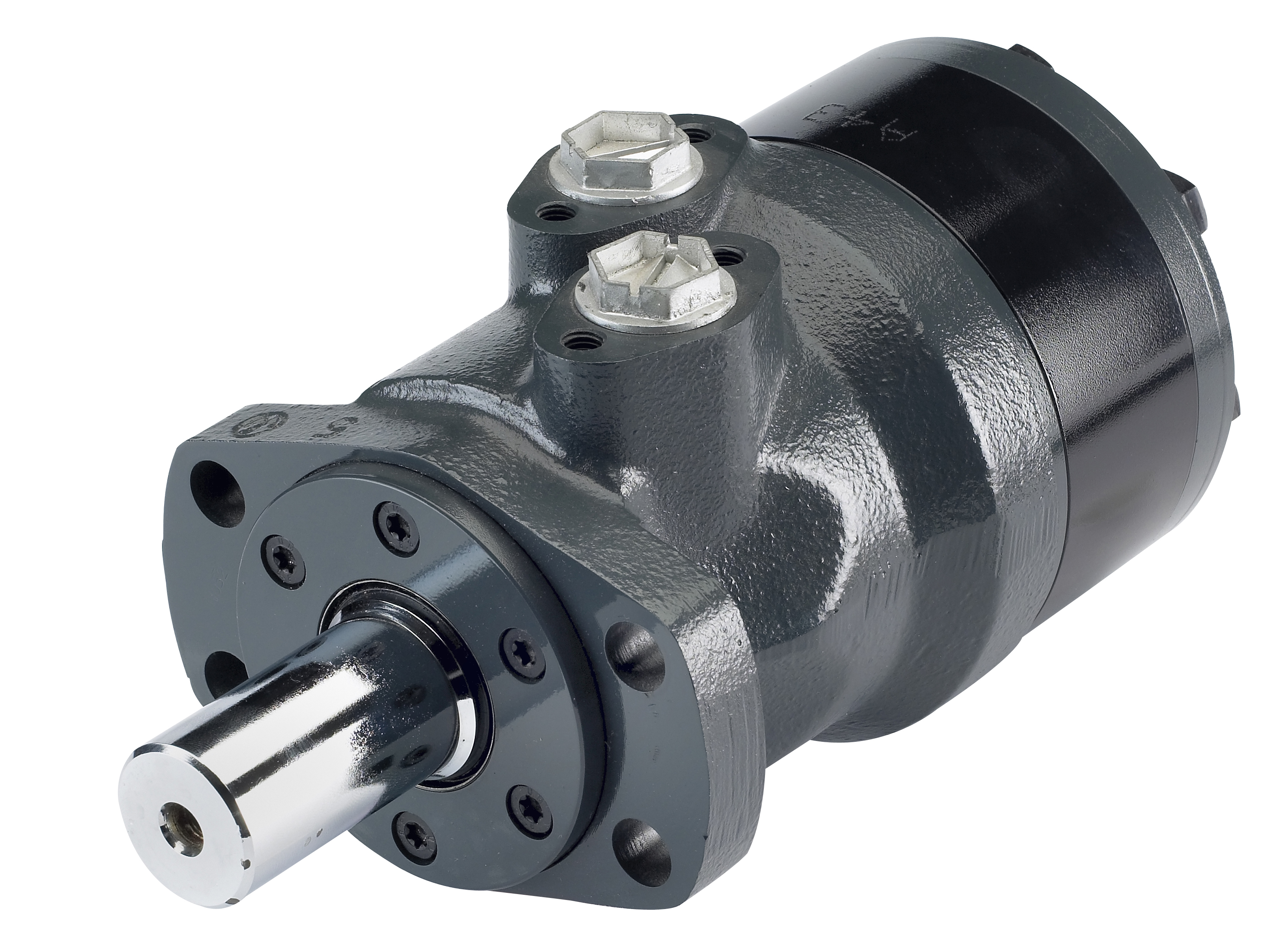

Orbital motors White OMH ø32 cylindrical

OMH 200 HYDRAULIC MOTOR

OMH 250 HYDRAULIC MOTOR

Orbit motor 32mm, 151H1004 OMH315

OMH 400 HYDRAULIC MOTOR

OMH 500 Orbit motor 32mm

SELECT VARIANT

Partnumber	Description	Shaft diameter	Shaft type	Displacement	Continuous rotation max.
151H1002	OMH 200 HYDRAULIC MOTOR	32 mm	Cylindrical	201.3 cm3	370 rpm
151H1003	OMH 250 HYDRAULIC MOTOR	32 mm	Cylindrical	252 cm3	295 rpm
151H1004	Orbit motor 32mm, 151H1004 OMH315	32 mm	Cylindrical	314.9 cm3	235 rpm
151H1005	OMH 400 HYDRAULIC MOTOR	32 mm	Cylindrical	396.8 cm3	185 rpm
151H1006	OMH 500 Orbit motor 32mm	32 mm	Cylindrical	470.6 cm3	155 rpm

Brand Name

White

Drainport

G 1/4

Holes circle

106.4

Mounting flange

SAE-A4 Magneto

Number of mounting holes

Oil viscocity recommended

20 - 75

Port position

Side

Recess

82,5

Sealing material

NBR

Shaft diameter

Shaft keyway

10,0

Shaft type

Cylindrical

Working ports

G 1/2
