Stud fitting - ø20S x M27x2
Stud fitting - ø20S x M27x2
Partnumber:
XGE20SM
Package size:
40 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm

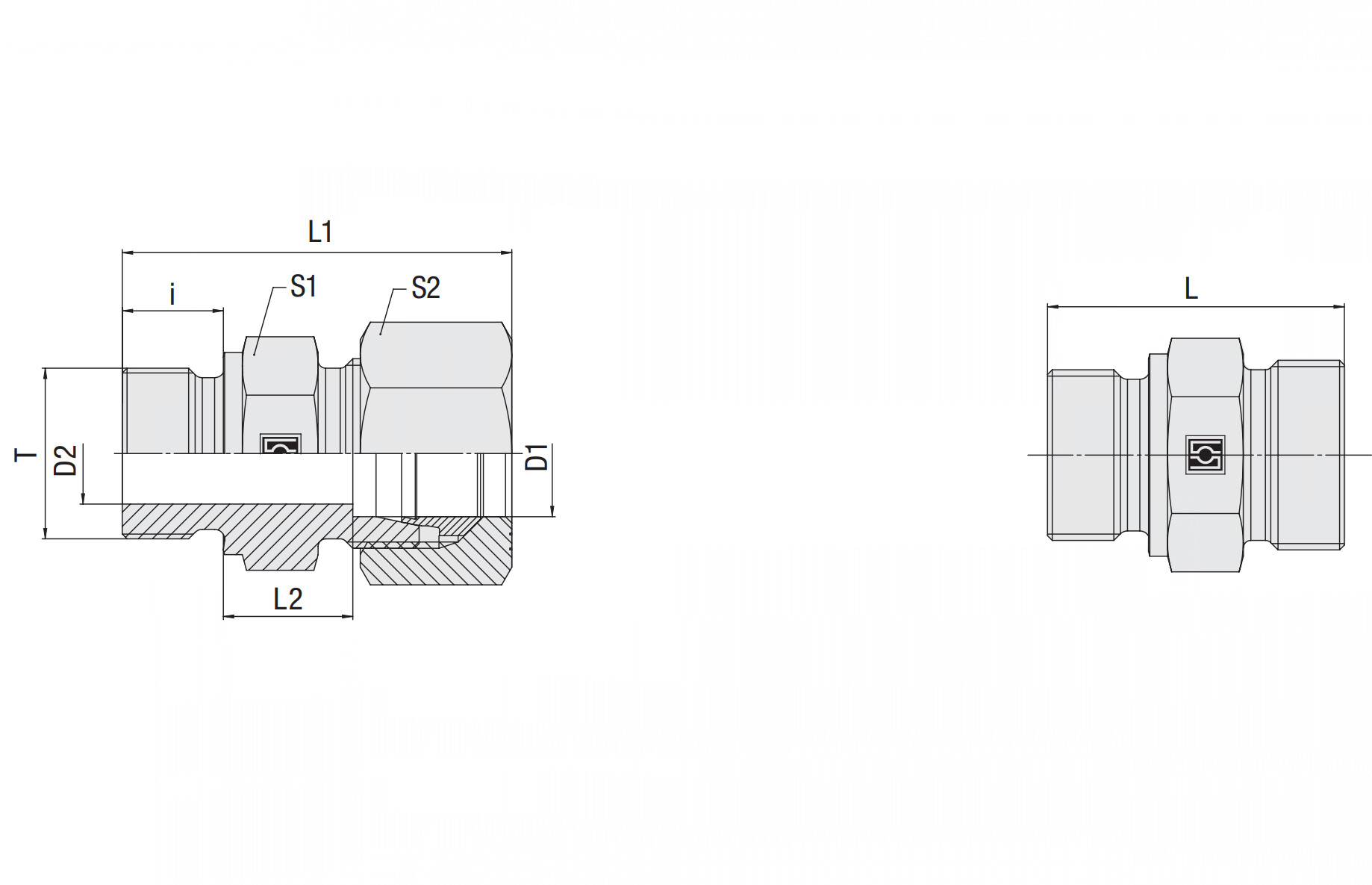

Dimension D1
20 mm
Dimension D2
16 mm
Dimension L
47 mm
Dimension L1
58 mm
Dimension L2
20.5 mm
Dimension S1
32 mm
Dimension S2
36 mm
Dimension i
16 mm
Material
Steel
Model code
XA20MSZN
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
2.5
Series
S
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread T
M27x2
Thread outer metric
M27x2
Package size
40 st
Barcode
131541
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
DEU
Intrastat code
73071110
Stud fitting - ø20S x M27x2
