Stud fitting - ø6L x M10x1.0 - O-ring
Stud fitting - ø6L x M10x1.0 - O-ring
Partnumber:
XGE06LMO
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm

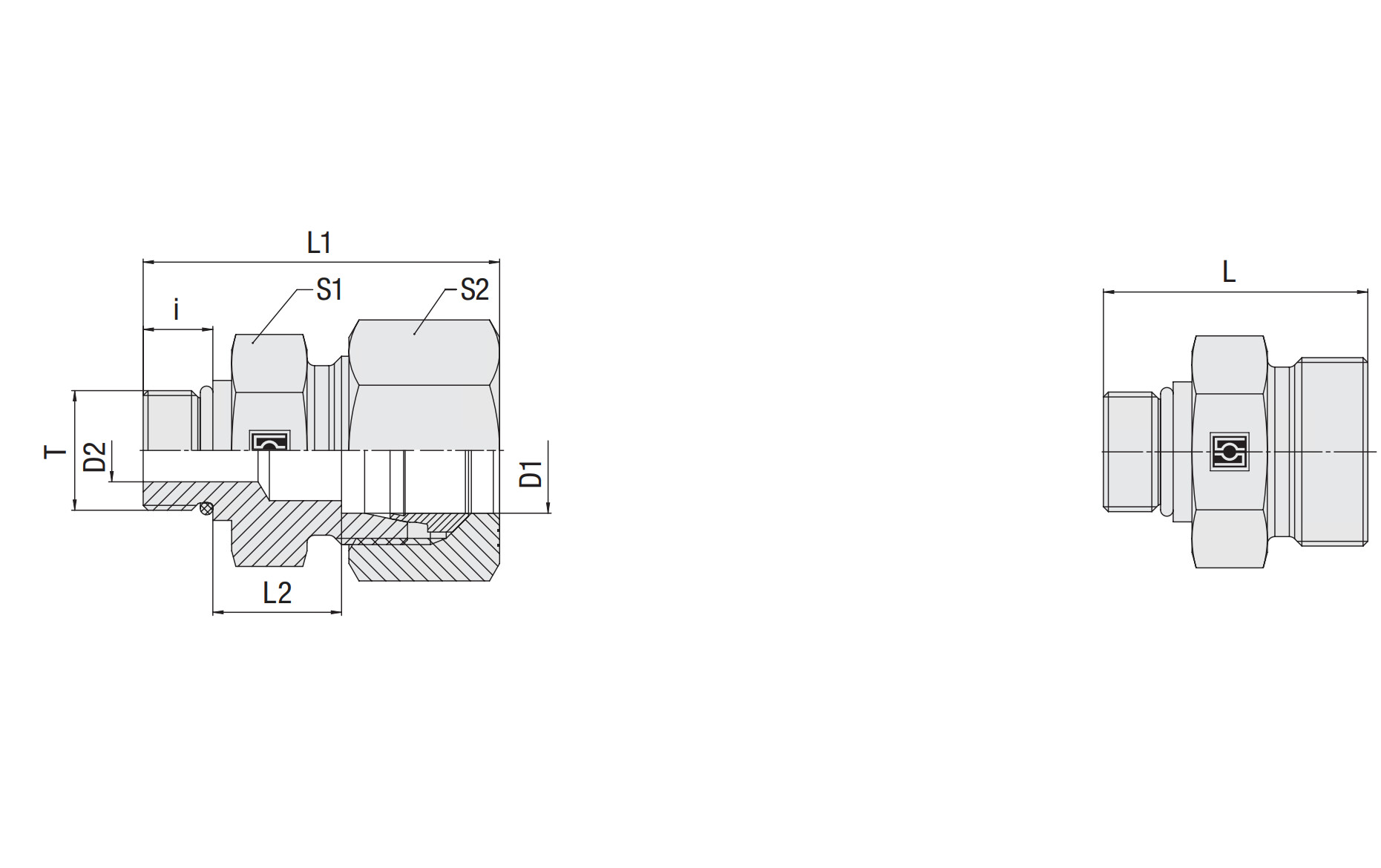

Dimension D1
6 mm
Dimension D2
4 mm
Dimension L
25 mm
Dimension L1
33 mm
Dimension L2
9.5 mm
Dimension S1
14 mm
Dimension S2
14 mm
Dimension i
8.5 mm
Material
Steel
Model code
FI-GE-06LM-OR-B-W3
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
NBR
Series
L
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T
M10x1
Thread outer metric
M10x1
Torque tightening
15 Nm
Package size
1 st
Barcode
367002
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Stud fitting - ø6L x M10x1.0 - O-ring
